ADVANCED SIMRACING ASR Kart Assembly And User's Manual page 10

13.

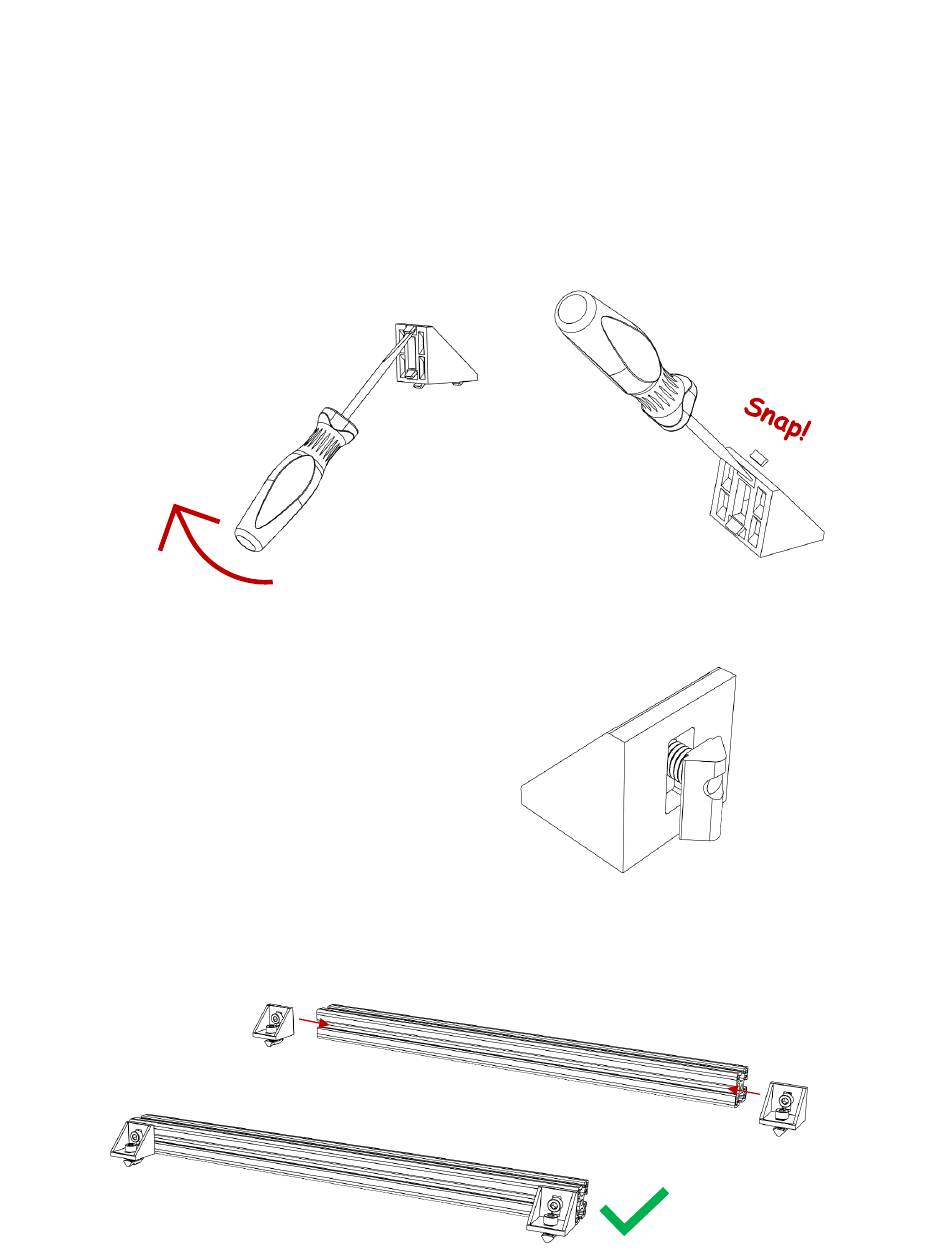

Prepare 2 corner gussets with the following twist : Using the flathead
screwdriver, slide the flathead under the small tab on the bottom, and pry out
the tab. It will snap at the base. Snap off both tabs on one side.
14.
Prepare the snapped gussets with
2X
2X M8 T-Nut and 2X M8 X 16 socket
screw each.
15.
Place the gussets at each ends of the 1.5" X 22" extrusion. Repeat for both
pieces. Make sure the broken tabs are on the side of the extrusion (it won't really
fit otherwise).
Tighten Fully.
8
