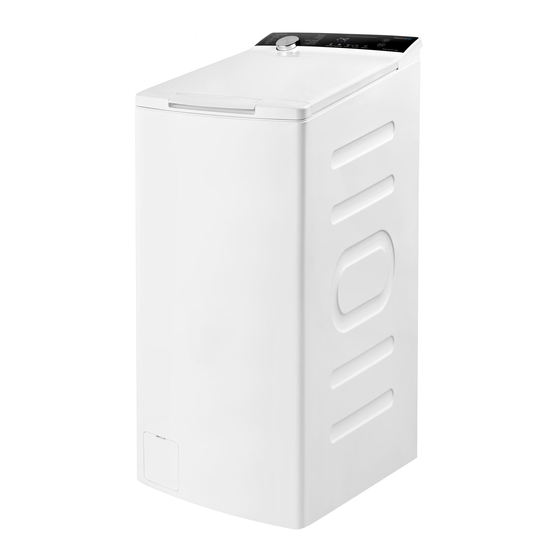

Washing Machine
USER MANUAL
PLDI 127 ATL KING
PLDI 138 ATL KING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLDI 127 ATL KING and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philco PLDI 127 ATL KING

Summary of Contents for Philco PLDI 127 ATL KING

  • Page 1 Washing Machine USER MANUAL PLDI 127 ATL KING PLDI 138 ATL KING...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2023, Fast ČR, a. s. Revision 11/2023...

  • Page 3: Table Of Contents

    QUICK START .....................................14 BEFORE EACH WASHING ................................15 DETERGENT DISPENSER ................................16 DETERGENT RECOMMENDATION .............................17 CONTROL PANEL ....................................18 PROGRAMMES ....................................19 MODEL: PLDI 127 ATL KING .................................19 PROGRAMMES ....................................20 MODEL: PLDI 138 ATL KING .................................21 OPTION ........................................25 PART 4: MAINTENANCE ..........................28 CLEANING AND CARE ..................................28 CLEANING THE INLET FILTER ..............................29...

  • Page 4: Part 1: Safety Instructions

    PART 1: SAFETY INSTRUCTIONS THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTIONS CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED.
  • Page 5 – THE APPLIANCE MUST NOT BE USED WITH MORE DRY LAUNDRY THAN STATED IN THE MACHINE SPECIFICATIONS. – THE DRYER MUST NOT BE USED IF INDUSTRIAL CHEMICALS WERE INVOLVED IN CLEANING. – MAKE SURE THAT FLUFF DOES NOT ACCUMULATE AROUND THE MACHINE.
  • Page 6 – THE APPLIANCE MUST NOT BE INSTALLED BEHIND LOCKABLE DOOR, SLIDING DOOR OR DOOR WITH HINGES AT THE OPPOSITE SIDE FROM THE DRUM DRYER IF SUCH INSTALLATION WOULD PREVENT THE DRUM DRYER DOOR FROM OPENING FULLY. THE APPLIANCE MUST NOT BE POWERED FROM AN EXTERNAL SWITCHING DEVICE SUCH AS TIMER SWITCH OR BE CONNECTED TO A CIRCUIT THAT IS REGULARLY SWITCHED ON AND OFF.
  • Page 7 - IF THE SUPPLY CORD GETS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR A SIMILARLY QUALIFIED PERSON. - THE APPLIANCE SHOULD BE CONNECTED TO THE WATER SUPPLY AND DRAIN USING NEW HOSES, NOT USING HOSES THAT HAVE ALREADY BEEN USED.

  • Page 8: Appliance Installation

    APPLIANCE INSTALLATION - THIS APPLIANCE IS INTENDED FOR INTERIOR USE ONLY. - THIS APPLIANCE IS INTENDED TO BE BUILT-IN. - THE ELECTRIC OUTLET THAT THE POWER CORD IS CONNECTED TO MUST BE EASILY ACCESSIBLE AFTER THE APPLIANCE HAS BEEN INSTALLED. - REMOVE ALL PACKAGING MATERIALS AND SAFETY TRANSPORT BOLTS BEFORE USING THE APPLIANCE.

  • Page 9: Safety Instructions

    PLEASE READ THOSE SAFETY PRECAUTIONS CAREFULLY AND STORE THEM FOR FUTURE REFERENCE. Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: Warning! This combination of symbol and signal word indicates a potentially...
  • Page 10 Packaging/Old appliance This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal,recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 11: Part 2: Installation

    PART 2: INSTALLATION Product Description Power supply cord Door Detergent dispenser Drum Control panel Drain hose Service filter Note! Accessories Transport hole Supply hose cold Owner’s manual plug water EN - 9 Copyright © 2023, Fast ČR, a. s. Revision 11/2023...

  • Page 12: Installation

    Installation Installation area Warning! Before installing the machine, the location characterized as follows shall be selected: 1. Rigid, dry, and level surface 2. Avoid direct sunlight 3. Sufficient ventilation 4. Room temperature is above 0°C 5. Keep far away from the heat resources such as coal or gas. Unpacking the washing machine Warning! 1.
  • Page 13 Remove transport bolts Warning! Loosen the 4 transport bolts Remove the bolts including Close the holes using the with a spanner. the rubber parts and keep cover caps. them for future use. Levelling the washing machine Warning! 1. Loosen the lock nut. 2.
  • Page 14 Drain Hose Warning! There are two ways to place the end of drain hose: 1. Put it into the water trough. 2. Connect it to the branch drain pipe of the trough. Water trough Note! Trough Hose Retainer Max. 100cm Min.
  • Page 15 Acoustic Sponge Note! machine while working, in order to provide you with a more peaceful and quiet living environment. 1. Get the machine laid on the floor, using some soft material like foam or clothes between the machine and floor for a protection; 2.

  • Page 16: Part 3: Operations

    PART 3: OPERATIONS Quick Start Caution! neutralize potential odors, it’s recommended to clean your appliance before first use. For this reason, start the Cotton program at 60°C without laundry and detergent. 1. Before Washing Prewash Softener Main wash Plug in Open tap Load Add detergent...

  • Page 17: Before Each Washing

    Before Each Washing and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. foaming detergent suitable for machine washing properly. Check the label Sort laundry according to Take all items out of the...

  • Page 18: Detergent Dispenser

    Detergent Dispenser Pre wash detergent Prewash Softener Main wash Main wash detergent Softener Caution! Programme Programme My Cycle Spin Only Cotton Rinse & Spin Synthetics Wool Baby Care Drum Clean Quick 15’ 20 °C Intensive Bed Linen Means must Means optional EN - 16 Copyright ©...

  • Page 19: Detergent Recommendation

    Detergent Recommendation Recommended washing Wash cycles Washing temp. Type of laundry and detergent textile White laundry made with bleaching agents Cotton, Mix 20/40/60 and optical brighteners or linen Colour detergent Coloured laundry made without bleaching agent Cotton, Mix Cold/20/40 from cotton or linen and optical brighteners Color or mild detergent Coloured laundry made...

  • Page 20: Control Panel

    Control Panel Model: PLDI 138 ATL King PLDI 127 ATL King My cycle Quick 15` Press 3 sec. for My Cycle/Signal Cotton Intensive Synthetics Wool Bed Linen Rinse & Spin Spin Only Baby Care 20 °C Drum Clean Temp. Speed Funct.

  • Page 21: Programmes

    Programmes Model: PLDI 127 ATL King Programme Cotton 2:40 Synthetics 2:20 1:20 Bed Linen 1:48 20 °C 1:01 Baby Care 2:01 Drum Clean 1:18 Spin Only 0:12 Rinse & Spin 0:20 Wool 1:07 Intensive 3:48 3:28 Quick 15` 0:15 Note! parameters in above mentioned table.

  • Page 22: Programmes

    Programmes PLDI 127 ATL King Cycle Quick 15 cold 0:15 0.026 Cold 7 %/800 20°C 1:01 0.177 70%/ 00 Cotton 2:45 1.289 53%/1200 Intensive 3:48 0.955 70%/800 1:20 0.696 70%/800 3:28 0.670 53,9%/1200 2:42 0.385 53,9%/1200 60°C 2:42 0.186 53,9%/1200 the EU energy efficiency class is: A Half load for 7.0kg machine:3.5kg.

  • Page 23: Model: Pldi 138 Atl King

    Programmes Model: PLDI 138 ATL King Programme Cotton 2:40 Synthetics 2:20 1:20 Bed Linen 1:48 20 °C 1:01 Baby Care 2:01 Drum Clean 1:18 Spin Only 0:12 Rinse & Spin 0:20 Wool 1:07 Intensive 3:48 3:38 Quick 15` 0:15 Note! parameters in above mentioned table.
  • Page 24 Programmes PLDI 138 ATL King Cycle Quick 15 cold 0:15 0.026 Cold 70%/800 20°C 1:01 0.183 70%/800 Cotton 2:45 1.394 53%/1300 Intensive 3:48 1.013 70%/800 1:20 0.754 70%/800 3:38 0.739 53,9%/1250 2:48 0.456 53,9%/1250 60°C 2:48 0.196 53,9%/1250 the EU energy efficiency class is: A Half load for 8.0kg machine:4.0kg.
  • Page 25 achieved. or 60°C, together in the same cycle. This programme is used to assess the compliance with the regulation The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. contribute to energy and water savings. Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.
  • Page 26 Model: PLDI 138 ATL King PLDI 127 ATL King EN - 24 Copyright © 2023, Fast ČR, a. s. Revision 11/2023...
  • Page 27 Option Cycle Default Default spin speed in Additional functions Wash cycles 1200 1300 My Cycle Cotton Synthetics Bed Linen 20 °C Baby Care Drum Clean Spin Only Rinse & Spin Wool Intensive Quick 15’ Cold Note! content on the Product Fiche page. cycle.
  • Page 28 Option Pre Wash Pre Wash The Prewash function can get an extra wash before main wash,it is suitable for washing the Extra Rinse Extra Rinse The laundry will undergo extra rinse once after you select it. Delay Delay Set the Delay function: 1.
  • Page 29 Child Lock To avoid mis operation by children. Choose the Programme Start Press [Function.] and [Delay] 3 sec. till buzzer beep. Caution! for 3 sec. Mute the buzzer Choose the Press the [Speed]button for Programme 3sec., the buzzer is mute. To act the buzzer function, press the button again for 3 seconds.

  • Page 30: Part 4: Maintenance

    PART 4: MAINTENANCE Cleaning And Care Warning! Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be No sharp items are allowed. Note! products,etc. Cleaning The Drum detergents. Never use steel wool. Note! EN - 28 Copyright ©...

  • Page 31: Cleaning The Inlet Filter

    Cleaning The Inlet Filter Note! cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers. 4.

  • Page 32: Cleaning The Drain Pump Filter

    Cleaning The Drain Pump Filter Warning! cleaning the drain pump filter. Open the lower cover Open the filter by turning to the counter clockwise Remove extraneous Close the lower cover matter EN - 30 Copyright © 2023, Fast ČR, a. s. Revision 11/2023...

  • Page 33: Trouble Shooting

    Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Reason Solution Washing machine Restart after the door is closed Check if Door is not closed properly cannot start up the clothes is stuck...

  • Page 34: Customer Service

    Power Supply MAX. Current 10 A Standard Water Pressure Model Washing Capacity Dimension Net Weight Rated Power PLDI 127 ATL King 7.0kg 56kg 1900W PLDI 138 ATL King 8.0kg 56kg 1900W EN - 32 Copyright © 2023, Fast ČR, a. s.
  • Page 35 Product Information Sheet Supplier's name or trademark: PHILCO Supplier's address: FAST ČR, a.s.,U Sanitasu 1621, Říčany 251 01, Czech Republic Model identifier: PLDI 127 ATL King General product parameters: Parameter Value Parameter Value Height Width Dimensions in mm Depth Energy Efficiency Index 51.5...
  • Page 36 Minimum duration of the guarantee offered by the supplier: 24 months This product has been designed to release silver ions during the washing cycle Additional information: is found: www.philco.cz EN - 34 Copyright © 2023, Fast ČR, a. s. Revision 11/2023...
  • Page 37 Product Information Sheet Supplier's name or trademark: PHILCO Supplier's address: FAST ČR, a.s.,U Sanitasu 1621, Říčany 251 01, Czech Republic Model identifier: PLDI 138 ATL King General product parameters: Parameter Value Parameter Value Height Width Dimensions in mm Depth Energy Efficiency Index 51.9...
  • Page 38 Minimum duration of the guarantee offered by the supplier: 24 months This product has been designed to release silver ions during the washing cycle Additional information: is found: www.philco.cz EN - 36 Copyright © 2023, Fast ČR, a. s. Revision 11/2023...
  • Page 39 Keep the energy label, the instructions for use, together with other documents supplied with the device. TESTING INFORMATION Model PLDI 127 ATL King 2021/341 EN 60456:2016 + A11:2020 If you have any further questions, please contact the manufacturer. Model PLDI 138 ATL King 2021/341 EN 60456:2016 + A11:2020.
  • Page 40 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
  • Page 41 NOTES/POZNÁMKY...
  • Page 42 NOTES/POZNÁMKY...
  • Page 43 NOTES/POZNÁMKY...
  • Page 44 Výrobce/Manufacturer: Fast ČR, a.s. U Sanitasu 1621 Říčany 251 01, CZECH REPUBLIC Distributor: FAST PLUS, a.s. Bratislava, SLOVAKIA is pending or registered trademark of Electrolux Home EN - 1 Products, Inc. and used under a license from Electrolux Home Products, Inc Copyright ©...
