Summary of Contents for Dahua Technology D-IPC-HFW1430DSP-SAW-0280B

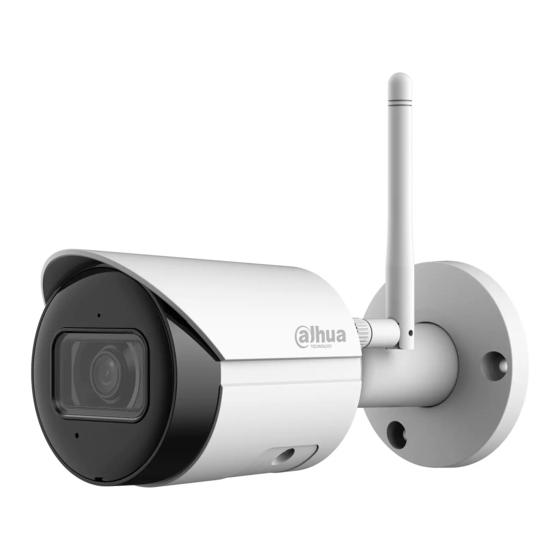

- Page 1 Bullet Network Camera Application Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0...
-
Page 2: Table Of Contents
Application Quick Start Guide Table of Contents 1 Operating with DMSS ..................................1 2 Installation ....................................... 3 2.1 Packing List ....................................3 2.2 Dimensions ....................................3 2.3 Installing Camera ..................................4 2.3.1 Installation Method ............................... 4 2.3.2 Installing SD Card ................................4 2.3.3 Attaching Camera ................................ -
Page 3: Operating With Dmss
Application Quick Start Guide 1 Operating with DMSS Make sure that there are no obstacles and electromagnetic interference between the device and the router for best possible wireless performance. Step 1 Add the device. 1) Tap + button on the upper-right corner of the DMSS home page to scan the QR code on the camera. - Page 4 Application Quick Start Guide Figure 1-2 Configure the device hotspot Step 3 Configure the Wi-Fi. Select your Wi-Fi network from SSID list and then enter the password. Step 4 Configure the device information. 1) Create the device name and password. 2) Set the time zone and then click Done.
-
Page 5: Installation
Application Quick Start Guide 2 Installation 2.1 Packing List ● The tool required for the installation such as electric drill is not provided in the package. ● The operation manual and related tool information are contained in the disk or the QR code. Figure 2-1 Dimensions (mm [inch]) 2.2 Dimensions Figure 2-2 Dimensions (mm [inch]) -
Page 6: Installing Camera
Application Quick Start Guide 2.3 Installing Camera 2.3.1 Installation Method Figure 2-3 Installation method 2.3.2 Installing SD Card ● SD card slot is available on select models. ● Disconnect the power before installing or removing the SD card. Press the reset button for 10 seconds to reset the device. Figure 2-4 Install SD card 2.3.3 Attaching Camera ●... - Page 7 Application Quick Start Guide Figure 2-5 Cable going through the side cable tray Figure 2-6 Cable going through the mounting surface...
-
Page 8: Optional) Installing Waterproof Connector
Application Quick Start Guide 2.3.4 (Optional) Installing Waterproof Connector This part is needed only when a waterproof connector comes with the camera and the camera is used outdoors. Figure 2-7 Install waterproof connector 2.3.5 Adjusting Lens Angle Figure 2-8 Adjust lens angle... - Page 9 Application Quick Start Guide...
