Installing a DIMM

Installing a DIMM Installing a DIMM
Installing a DIMM Installing a DIMM
Please make sure to disconnect power supply before adding or removing
DIMMs or the system components.

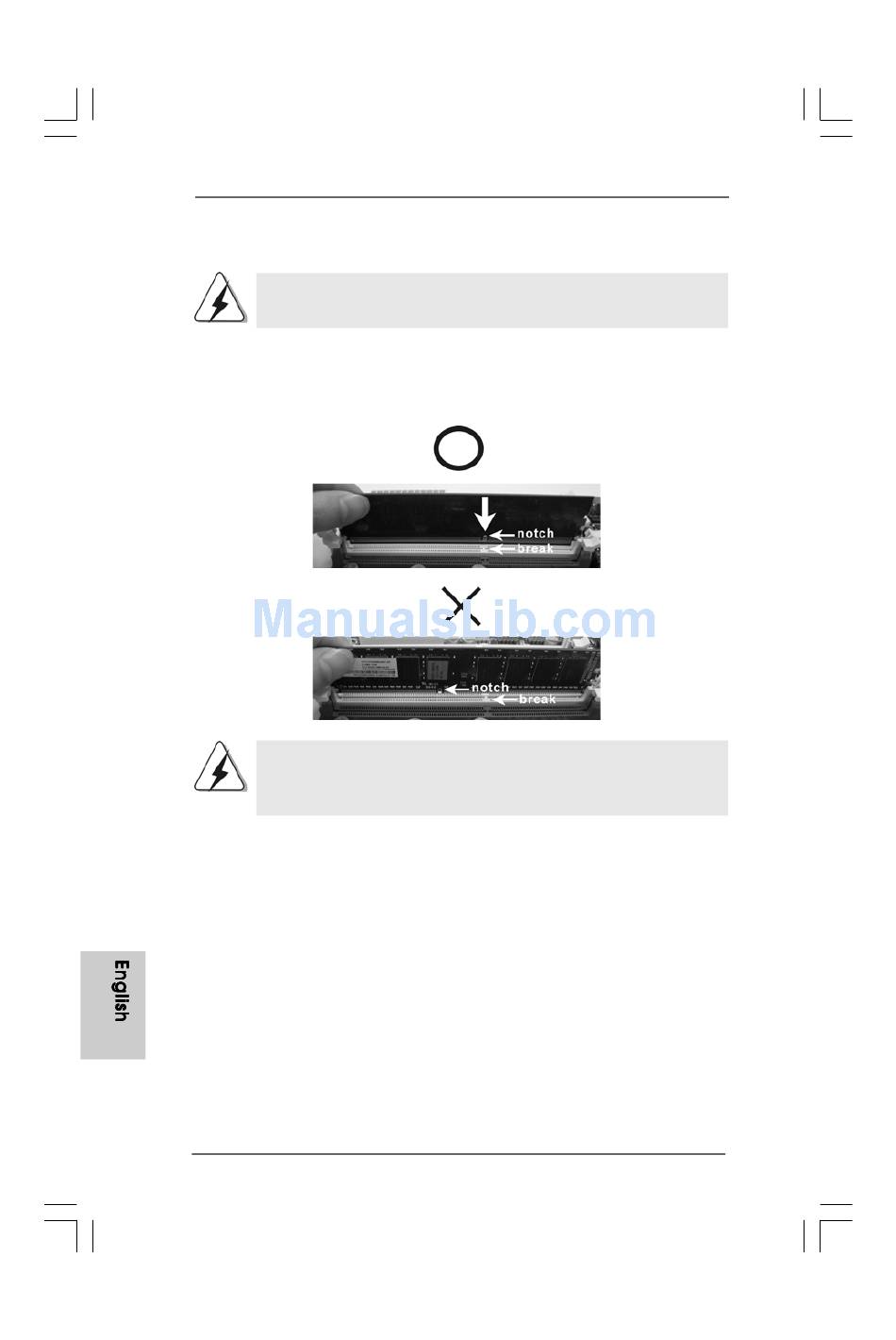

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break
on the slot.
The DIMM only fits in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into the slot
at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully
snap back in place and the DIMM is properly seated.
1 4 1 4 1 4
1 4 1 4
ASRock P55 Pro Motherboard
