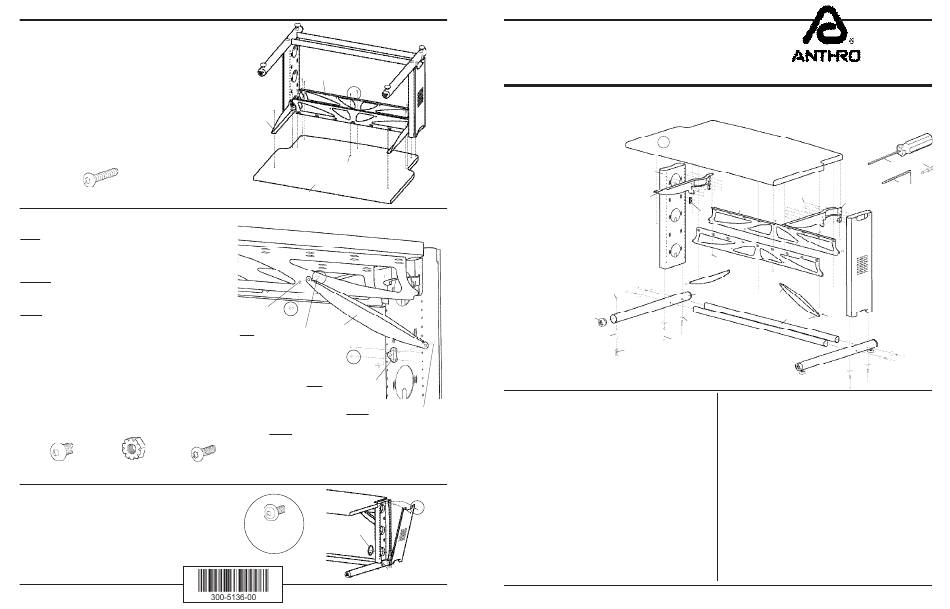

Anthro AnthroBench B6029 Series Assembly Instructions

Step 7
Place the Bench Shelf (laminate facing down) onto the floor.
With the help of another person, carefully rotate the Base Assembly
(from Step 6) over onto the Shelf.
Position the holes on the Pans and Arms to align with the twelve
predrilled holes on the Shelf. Insert two Wood Screws through each
center opening of the Bench Pans (shown encircled at right).
Install the remaining Wood Screws into each of the Arms and Pans, a
total of twelve Wood Screws will be installed.
If a drawer and/or keyboard caddy are a part of this configuration,
install them now using their instructions.
With the help of a buddy, carefully rotate your AnthroBench back over
onto the Glides.
1 1 / " Wood Screw
4
325-5178-00
Step 8
(requires a 3-Way Wrench)
FIRST- from the rear of your Bench, align one Buttress with
one hole on the Back Pan. Install a Pan Screw through the
Buttress and loosely capture using a Keps Nut on the opposite
side.
SECOND- position one Cross End on the remaining Buttress
end and install a Pan Screw and Keps Nut in the same manner,
but do not fully tighten.
THIRD- rotate the Buttress to align the Cross End with two
openings on the Leg. Secure the Cross End to the Leg using
two Support Screws.
Repeat this entire procedure for the remaining Buttress and
Cross End on the opposite end.
Tighten all Pan Screws, Support Screws & Keps Nuts.
Congratulations! Your 60" AnthroBench assembly is complete.
Please return the enclosed Registration Card to receive our
product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
( 1 / -20 X .5") Pan Screw ( 1 / -20) Keps Nut Support Screw
4 4
325-5003-00 325-5130-03 325-5010-00
Removal of Leg Covers and Cable Grommets
Remove the Leg Cover by: 1. First removing the top two
Workstation Screws. 2. Slightly lift the Cover upward and off
the lower metal mounts.
Cable Grommets are snapped into and out of each of the
circular Leg openings.
Questions?
Pans
Arms
Predrilled holes
Rounded Edge of Shelf
Back Pan hole
Buttress
FIRST Install this Pan Screw
THIRD Install the Cross End
SECOND Install this Pan Screw
NOTE: The purpose of the Buttress is not to
support your Bench Shelf. It is intended to
make your Bench absolutely rigid under ex-
treme weight conditions.
Workstation Screw
Cable Grommet
(not counted in Parts List)
325-5092-00
Lower Metal Mounts
1-800-325-3841
60" AnthroBench
Assembly Instructions
These Assembly Instructions are for the 60" AnthroBench models: B6029zz/xx, S6029zz/xx, B6035zz/xx
& S6035zz/xx. Before beginning assembly of your AnthroBench, please take a moment to review the parts listed below to verify
that your shipment is complete.
Your AnthroBench is heavy!
01
Don't try to lift it yourself. Work with
a buddy.
02
03
06
07
08
10
09
Enclosed Parts List
Detailed views of all Hardware is provided with each Assembly Step
01– 60" Wide Bench Shelf .............Qty. 1 ................(see below)
28" Deep ................ 100-6407-00
(S6029zz/xx and S6035zz/xx)
...............100-6350-00
36" Deep
(B6029zz/xx and B6035zz/xx)
02– Bench Leg Assemblies .............Qty. 2 ................(see below)
25" Bench Legs .....835-5008-00
(S6029zz/xx and S6035zz/xx)
31" Bench Legs .....835-5009-00
(B6029zz/xx and B6035zz/xx)
03– Bench Arm Left ........................Qty. 1 ............225-5357-00
04– Cross Ends .................................Qty. 2 ............225-5334-00
05– 1 1 / " Wood Screws ....................Qty. 12 ..........325-5178-00
4
06– Glide Insert Screws ..................Qty. 4 ............325-5052-00
07– 2.5" End Caps ............................Qty. 4 ...........175-5158-00
08– Glide Inserts ..............................Qty. 4 ............525-5030-00
09– Glides ( 1 / -13 X 2") ...................Qty. 4 .......... 325-5165-00
2
10– Cap Screws ( / -18 X 4") ........Qty. 8 ............325-5166-00
5
16
11– Curved Washers ........................Qty. 8 ..
225-2050-00 or 225-3522
12– Bench Base Tubes .....................Qty. 2 .................(see below)
................125-5225-00
28" Deep
(S6029zz/xx and S6029zz/xx)
36" Deep ...............125-5183-00
(B6029zz/xx and B6035zz/xx)
Anthro Corporation Technology Furniture
SAVE THESE INSTRUCTIONS!
April 2013, Rev F
TECHNOLOGY FURNITURE ®
18
17
19
04
05
12
13
14 16
15
1 1
13– 17" Bench Buttress ..................Qty. 2 ............225-5387-00
14– 53.5" Bench Cross Tubes ........Qty. 2 ............125-5185-00
15– Keps Nuts ( / -20) ....................Qty. 8 ............325-5130-00
1
4
16– Pan Screws ( 1 / -20 X .5") ........Qty. 8 ............325-5003-00
4
17– Bench Arm Right ......................Qty. 1 ............225-5358-00
18– Support Screws ........................Qty. 20 .......... 325-5010-00
19– 60" Bench Pans .........................Qty. 2 ............ 225-5371-00
All Screw quantities listed here are the minimum needed
for your Bench assembly. There may be a few extra Screws
included, which are not counted in the Parts List.
To make the assembly of your Anthro Bench even easier, we
have included the required tools. The handy Hex Driver Bit
can be used in your electric drill in place of the Hex Driver.
*
20 - Hex Driver 5 / " .........................Qty. 1 ............375-5000-00
32
21 - Hex Driver Bit 5 / " ...................Qty. 1 ............375-5003-00
32
22 - Hex Key / " ...............................Qty. 1 ............375-5024-00
1
4
3-Way Wrench (not shown) ..........Qty. 1 ............225-5196-03
® 10450 SW Manhasset Drive Tualatin, Oregon 97062
20 21
22
anthro.com
