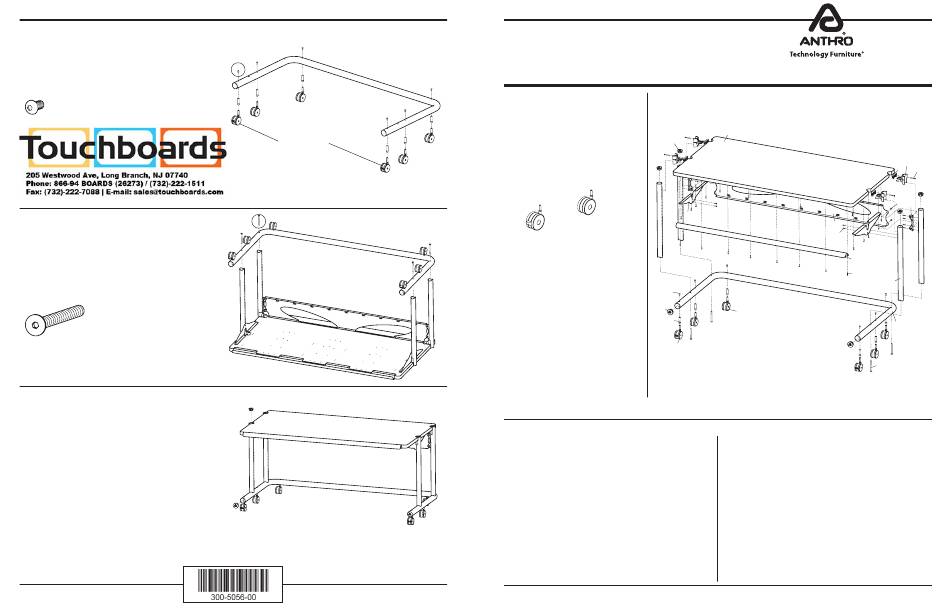

Step 8
Install all six caster inserts into the base tube and secure
with one Caster Insert Screw per insert.
Push the casters, (locking ones in front) into the caster
inserts.
1/2" Caster Insert Screw
325-505 2-00
Step 9
Place the base tube assembly (from Step 8) onto the
vertical legs of the shelf assembly (from Step 7).
Attach the base tube to the legs using a total of four
3-1/2" bolts.
TIGHTEN ALL SCREWS AND BOLTS.
3-1/2" Bolt
325-500 0-00
Step 10
Carefully, rotate your cart over onto the casters.
Pop the 1.5" small end caps into the vertical legs and the
1.75" large end caps into the base tube.
After you add your equipment to the cart, select the cable
management components that suit.
To install the Cable Alleys, expand each sleeve and fit it over
a cart leg. Align the mounting hole(s) in the sleeve with the
holes on the leg, then install with self-threading screws.
To install the Cord Handler, snap the large end around any
cart leg, then route cables through the small end.
Congratulations! Your assembly is complete.
Please return the enclosed Registration Card to receive our
product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
Questions?
Locking Casters
1.5" Small End Cap
1.75" Large End Cap
1-800-325-3841

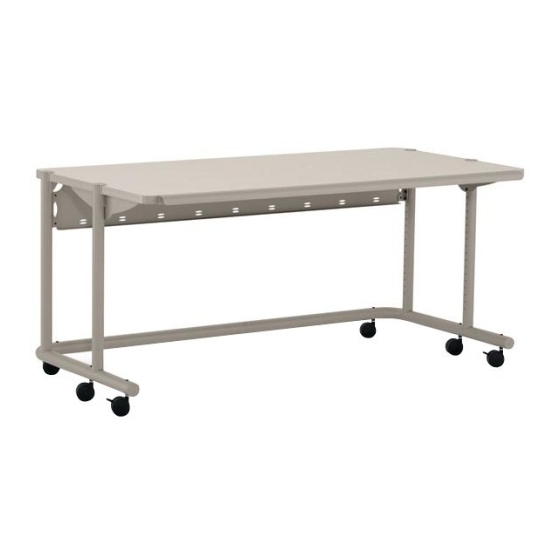

60" Wide AnthroCart
Assembly Instructions
These Assembly Instructions are for
the H24xx.
Before beginning assembly of your 60"
Wide AnthroCart, please take a moment
19
to review the parts listed below to verify
that your shipment is complete.
Does your Cart have 4" Casters?*
(Such as an H24xx4. Your Caster Part
Numbers are given here.)
4" Non-Locking Caster
150-5010-03
4" Locking Caster
150-5011-03
TOOLS
01
To make the assembly of your cart even
easier, we have included all of the required
02
tools . Use the handy Hex Driver Bit in your
03
electric drill in place of the Hex Driver.
04
Hex Driver 5/32".................. 375-5000-00
Hex Driver Bit 5/32" ........... 375-5003-00
8 oz. Rubber Mallet............ 375-5022-00
Enclosed Parts List
Detailed views of all Hardware are provided with each Assembly Step.
01– Insert Screws ...........................
Qty. 6 .......................... 325-5052-00
02– 1.75" Large End Caps ...............
Qty. 2 ............................ 175-5021-xx
03– Caster Inserts ..........................
Qty. 6 ..........................525-1000-00*
04– 2
/
" Locking Casters ...............
3
Qty. 2 .........................150-5003-03*
8
" Non-Locking Castors ......
05– 2
3
/
Qty. 4 .........................150-5002-03*
8
06– Base Tube Screws .........................
Qty. 4 ........................... 325-5000-00
07– 60" Wide Base Tube .....................
Qty. 1 ..........................125-5177-xx
08– 23.875" Vertical Legs ..................
Qty. 4 ..........................125-5020-xx
09–
3
/
" Wood Screws ..........................
Qty. 21 ..........................325-5106-00
4
10– 56" Handle Lip ...............................
Qty. 1 ............................ 225-5347-xx
11– Support Screws .............................
Qty. 16 ..........................325-5010-00
12– 58" Wide Bridge Pan ...................
Qty. 1 ..........................225-5341-xx
13– Bracket Screws ..............................
Qty. 4 ............................325-5149-00
14– 4.75" Pan End Bracket ................
Qty. 2 ............................ 225-5344-xx
15– Clamp Screws ................................
Qty. 4 ........................... 325-5086-00
Anthro
®
Corporation Technology Furniture
SAVE THESE INSTRUCTIONS!
Rev C, January 2015
TECHNOLOGY FURNITURE
®
18
20
12
1 1
10
09
05
16– Shelf Supports ...............................
Qty. 4 ............................ 175-5060-xx
17– Shelf Clamps ..................................
Qty. 4 ..........................175-5059-xx
18– 60" Wide Shelf ..............................
Qty. 1 ............................ 100-6337-xx
19– 1.5" Small End Caps .................
Qty. 4 ............................ 175-5020-xx
20– 18" Bridge Side Gussets ...........
Qty. 2 ............................ 225-5337-xx
All fastener quantities listed here are the minimum needed for your
cart assembly. Your shipment may include a few extras.
Cable Management Components
Cable Alley, 9" ....................
Qty 1 ................................................175-5061-03
Cable Alley, 3" ....................
Qty 1 ................................................175-5062-03
Cord Handler ......................
Qty 1 ................................................175-5001-03
Self-threading Screws ....
Qty 6 ................................................ 325-5010-00
®
10450 SW Manhasset Drive Tualatin, Oregon 97062
16
17
15
13
14
08
07
06
anthro.com
