Anthro fit 24 Assembly Instructions

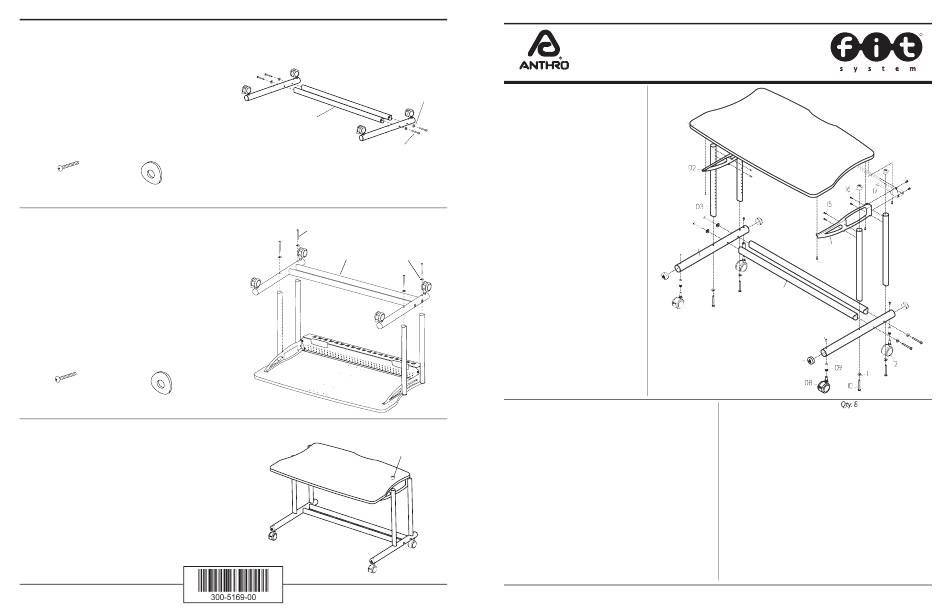

Step 7
Attach a Cross Tube to a Base Tube by inserting a fit Bolt
through a Tube Washer, then insert the Bolt through the
Base Tube and carefully thread into the Cross Tube.
Repeat this procedure for other Cross Tube.Then tighten
all fit Bolts.
( 5 / -18 X 3.5") fit Bolt fit Tube Washer
16
325-5194-00 225-2050-00 or 225-3522-00
Step 8
Align the Base Assembly on the Vertical Tubes as shown.
Secure the Base Assembly by inserting a fit Bolt through a
Tube Washer.Then insert the Bolt through the Base Tube
and carefully thread it into the Vertical Tubes.
Repeat for the remaining three Bolts and tighten all Bolts.
( / -18 X 3.5") fit Bolt fit Tube Washer
5
16
325-5194-00 225-2050-00 or 225-3522-00
Step 9
Insert the four 1.5" Small End Caps into the Vertical Legs.
Congratulations! Your assembly is complete.
Please return the enclosed Registration Card to receive
our product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
Questions?
Base Assembly
fit Tube
Washer
Cross Tube
fit Bolt
fit Bolt fit Bolt
fit Tube
Cross Tube
Washer
1.5" Small End Cap
1-800-325-3841
24"/30"/36"/48" wide Standard Unit
Assembly Instructions
Hello! Thank you for choosing Anthro.
Before beginning assembly of your Standard
01
Unit, please take a moment to review the
parts listed below to verify that your
shipment is complete.
Please review the assembly instructions
of all Anthro products you purchased and
are planning to include in this installation,
prior to beginning this assembly.
To make the assembly of your Standard
Unit even easier, we have included all of
the required tools. The handy Hex Driver
Bit can be used in your electric drill in place
of the Hex Driver.
.........
Hex Driver / "
5 375-5000-00
32
....
Hex Driver Bit 5 / " 375-5003-00
32
....
8 oz. Rubber Mallet
375-5022-00
NOTE: Detailed views of all Hardware are
provided with each Assembly Step.
Component list for part #'s
F2429zz/xx3, F3029zz/xx3,
F3629zz/xx3 & F4829zz/xx3
01–Worksurface ............................... Qty. 1 ....................... (see below)
24" Wide Worksurface (F24029zz/xx3) ............100-6527-00
30" Wide Worksurface (F3029zz/xx3)...............100-6432-00
36" Wide Worksurface (F3629zz/xx3)...............100-6433-00
48" Wide Worksurface (F4829zz/xx3)...............100-6417-00
02– Support Bracket-B .................... Qty. 1 ...................225-2296-00
fit Small SupportY fit Small SupportY fit .. Qty. 1 ...................225-2015-00
(F2429zz/xx3)
03– 22.875" Vertical Legs .................Qty. 4 ...................125-5213-00
04– Base Tubes.......................................Qty. 2 ..................125-5273-00
05– Cross Tubes ................................ Qty. 2 ....................... (see below)
24" Deep Base Tube (F2429zz/xx3) ....................125-5218-00
30" Deep Base Tube (F3029zz/xx3) ....................125-5219-00
36" Deep Base Tube F3629zz/xx3)......................125-5220-00
48" Deep Base Tube (F4829zz/xx3) ....................125-5214-00
06– Insert Screws ............................. Qty. 4 ...................325-5052-00
07– 2" Large End Caps .................... Qty. 4 ...................175-5157-00
08– 3" Locking Casters ................... Qty. 2 ...................150-5053-00
09– Caster Inserts ............................ Qty. 4 ...................525-5032-00
Anthro Corporation Technology Furniture ® 10450 SW Manhasset Drive Tualatin, Oregon 97062
SAVE THESE INSTRUCTIONS!
1-800-325-3841
04
14
13
05
06
07
10– 5 / -18 fit Bolts .......................... ...................325-5194-00
16
11– fit Tube Washers....................... Qty. 8 ..
225-2050-00 or 225-3522-00
12– 3" Non-Locking Casters ......... Qty. 2 ...................150-5052-00
13– 3 / " Wood Screws...................... Qty. 8 ...................325-5106-00
4
14– Support Bracket-A.................... Qty. 1 ................. 225-2295 -00
fit fit Small Support X fit Small Support X .. Qty. 1 ...................225-2014-00
(F2429zz/xx3)
15– Support Screws ......................... Qty. 8 ...................325-5010-00
16– 1.5" Small Caps ......................... Qty. 4 ...................175-5156-00
17– Back Trough................................ Qty. 1 ....................... (see below)
24" Wide Back Trough (F2429zz/xx3)................225-2289-00
30" Wide Back Trough (F3029zz/xx3)................225-2290-00
36" Wide Back Trough (F3629zz/xx3)................225-2291-00
48" Wide Back Trough (F4829zz/xx3)................225-2292-00
18– 1 / -20 Button Head Screws .... Qty. 4 ...................325-5003-00
4
All Screw quantities listed here are the minimum needed
for your Standard Unit assembly. There may be a few extra
Screws included, which are not counted in the Parts List.
R
18
anthro.com
Rev. D January 2006
