Anthro 298 series Assembly Instructions

Anthro
® File-Hanging 2 Drawer
Assembly Instructions
These Assembly Instructions are for the 298xx.
Before beginning assembly of your Anthro File-Hanging
2 Drawer, please take a moment to review the parts list below
to verify that your shipment is complete.
Review the assembly instructions of all Anthro products you
purchased and are planning to include in this installation prior
to beginning this assembly.
An electric drill and / " drill bit are required for this assembly.
1
8

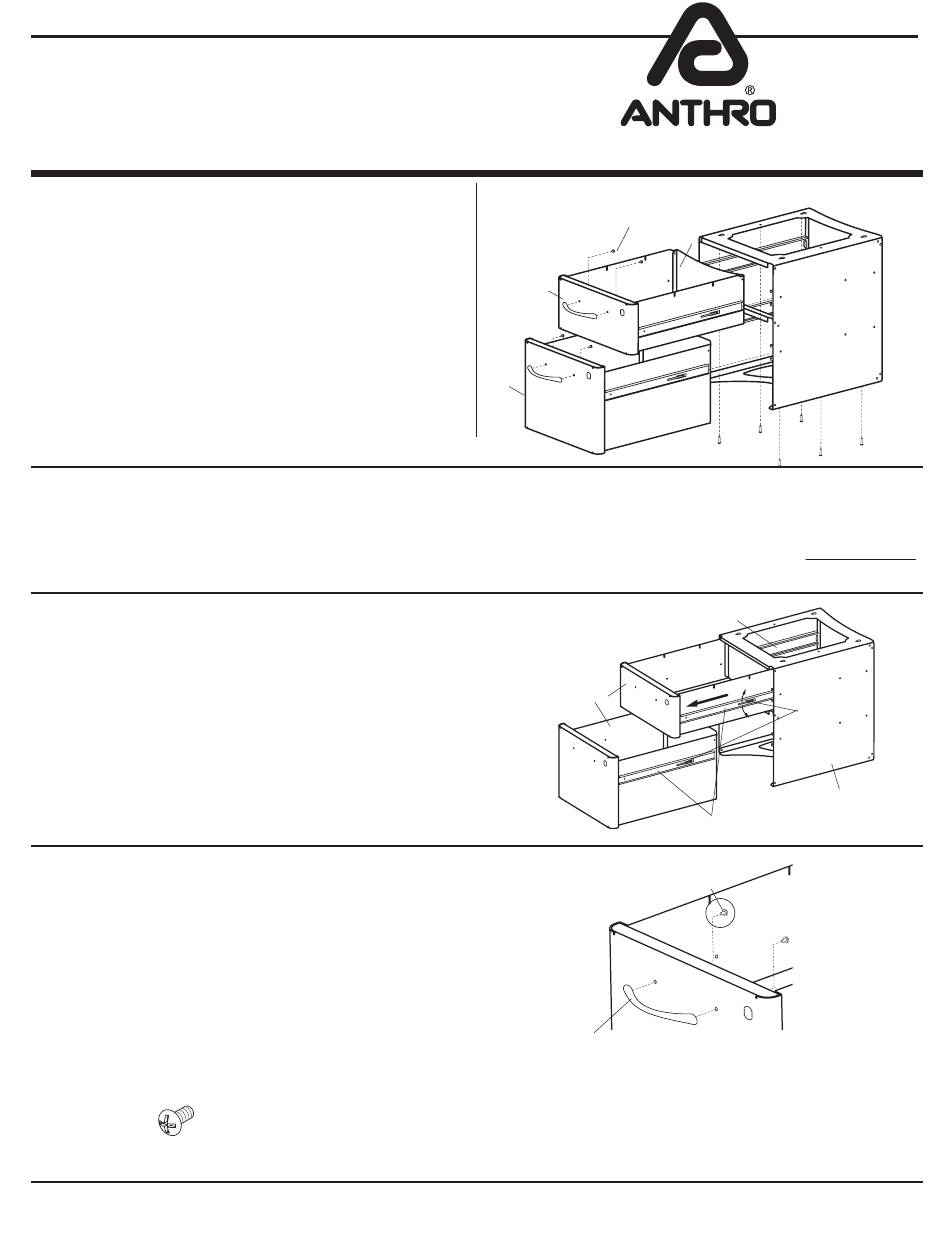

Enclosed Parts List
01– Housing Assembly .................... Qty. 1 ...................... 225-5481-xx
02– 6" Hanging Drawer Body .......... Qty. 1 ......................225-5474-xx
03– M4 x 8mm Phillips Screws ........Qty. 4 ...... 325-A129-18-01-00
04– Drawer Pull (DP 10B) ................ Qty. 2 .......175-A138-10-01-03
Step 1
Pull the top drawer all the way out. Locate the drawer glides
on each side of the drawer body, and then locate the lever
inside each glide. Push the levers down to release the drawer
body from the housing and pull the drawer body away from the
housing.
Set aside the top drawer, then remove and set aside the lower
drawer.
Step 2
(requires a Philips Screw Driver)
Position the drawer pulls against the front of the drawers and
secure into place using the two Phillips screws.
M4 x 8MM Philips Screw
325-A129-18-01-00
June 2014, Rev D
Anthro Corporation 10450 SW Manhasset Drive Tualatin, OR 97062
®
SAVE THESE INSTRUCTIONS!
TECHNOLOGY FURNITURE
03
04
05
05– 11" Hanging File Body ............... Qty. 1 .....................225-5476-xx
06– 3 / " Wood Screws
(2 extras)
4
Drill Template
(not shown)
A / " Anthro Hex Driver and Phillips Screwdriver (both not included)
5
32
will be required for this assembly.
Drawers
Drawer Pull
Install the Drawer Pull using the
two Metric Screws.
®
02
01
06
......... Qty. 6 ......................325-5106-00
............ Qty.1 ..................... 300-5140-00
Drawer Mounts
Levers
Housing Assembly
Drawer Glides
anthro.com
