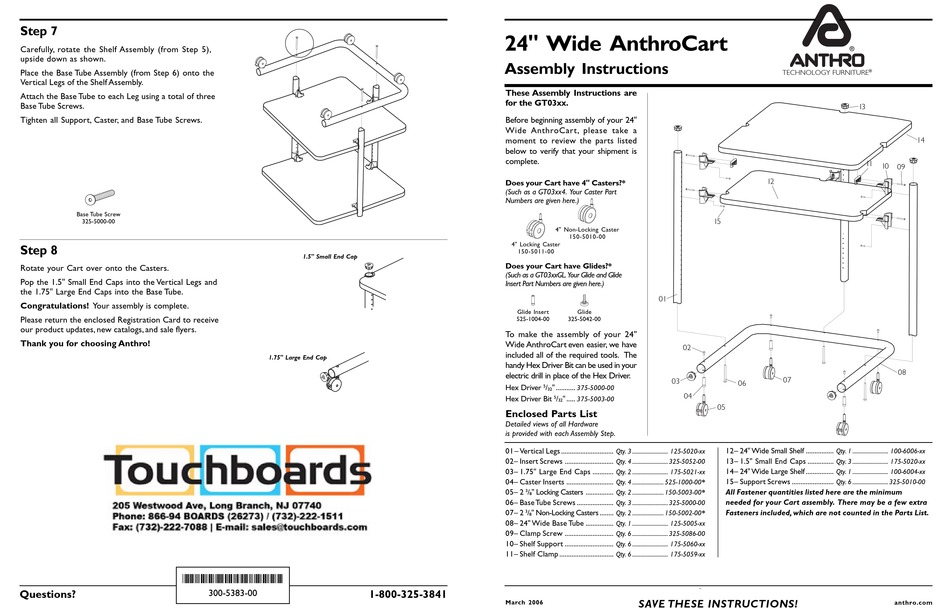

Anthro GT03 Series Assembly Instructions

Step 7

Carefully, rotate the Shelf Assembly (from Step 5),
upside down as shown.
Place the Base Tube Assembly (from Step 6) onto the
Vertical Legs of the Shelf Assembly.
Attach the Base Tube to each Leg using a total of three
Base Tube Screws.
Tighten all Support, Caster, and Base Tube Screws.
Base Tube Screw
325-5000-00

Step 8

Rotate your Cart over onto the Casters.
Pop the 1.5" Small End Caps into the Vertical Legs and
the 1.75" Large End Caps into the Base Tube.
Congratulations! Your assembly is complete.
Please return the enclosed Registration Card to receive
our product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
*300-5383-00*
Questions?
1.5" Small End Cap
1.75" Large End Cap
300-5383-00 1-800-325-3841

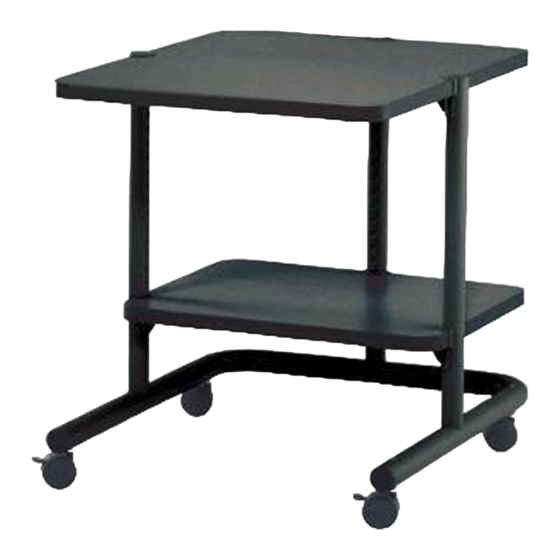

24" Wide AnthroCart
Assembly Instructions
These Assembly Instructions are
for the GT03xx.
Before beginning assembly of your 24"
Wide AnthroCart, please take a
moment to review the parts listed
below to verify that your shipment is
complete.
Does your Cart have 4" Casters?*
(Such as a GT03xx4. Your Caster Part
Numbers are given here.)
4" Non-Locking Caster
150-5010-00
4" Locking Caster
150-5011-00
Does your Cart have Glides?*
(Such as a GT03xxGL. Your Glide and Glide
Insert Part Numbers are given here.)
01
Glide Insert Glide
525-1004-00 325-5042-00
To make the assembly of your 24"
Wide AnthroCart even easier, we have
02
included all of the required tools. The
handy Hex Driver Bit can be used in your
electric drill in place of the Hex Driver.
03
Hex Driver 5 / " ...........
375-5000-00
32
04
Hex Driver Bit 5 / " .....
375-5003-00
32

Enclosed Parts List

Detailed views of all Hardware
is provided with each Assembly Step.
01 – Vertical Legs ..............................
Qty. 3 ......................... 125-5020-xx
02– Insert Screws ............................
Qty. 4 ......................... 325-5052-00
03– 1.75" Large End Caps ............ Qty. 2 ......................... 175-5021-xx
04– Caster Inserts ...........................
Qty. 4 ...................... 525-1000-00*
05– 2 3 / " Locking Casters ................
Qty. 2 ...................... 150-5003-00*
8
06– Base Tube Screws ..................... Qty. 3 ......................... 325-5000-00
07– 2 3 / " Non-Locking Casters ........ Qty. 2 ...................... 150-5002-00*
8
08– 24" Wide Base Tube ................
Qty. 1 ......................... 125-5005-xx
09– Clamp Screw ............................ Qty. 6 ......................... 325-5086-00
10– Shelf Support ............................ Qty. 6 ......................... 175-5060-xx
11– Shelf Clamp ...............................
Qty. 6 ......................... 175-5059-xx
Anthro Corporation Technology Furniture
March 2006 SAVE THESE INSTRUCTIONS!
TECHNOLOGY FURNITURE ®
13
11
12
15
07
06
05
12– 24" Wide Small Shelf ................
Qty. 1 ......................... 100-6006-xx
13– 1.5" Small End Caps ...............
Qty. 3 ......................... 175-5020-xx
14– 24" Wide Large Shelf ................ Qty. 1 ......................... 100-6004-xx
15– Support Screws ........................ Qty. 6 ......................... 325-5010-00
All Fastener quantities listed here are the minimum
needed for your Cart assembly. There may be a few extra
Fasteners included, which are not counted in the Parts List.
®
10450 SW Manhasset Drive Tualatin, Oregon 97062
14
10 09
08
anthro.com
