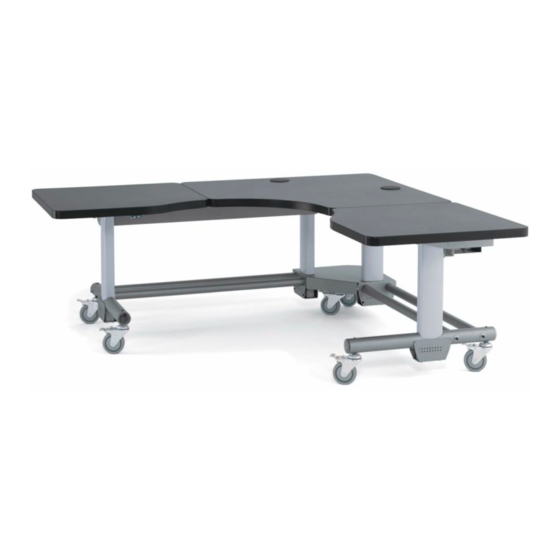

Elevate
Part Number: ELBCzz-xx4
Toll-free: 800.325.3841 | Fax: 800.325.0045 | email: sales@anthro.com | anthro.com
AS SE MB LY I NST RU CT I O N S
Original Corner
TM
Anthro Corporation
| 10450 SW Manhasset Dr. | Tualatin, OR 97062
®
Outside the U.S. | Tel: 503.691.2556 | Fax: 503.691.2409
November 2013
CAUTION
Moving parts
can crush.
Use care when
operating.
CAUTION
This table holds up to 300 lbs.
of distributed weight and
90 lbs. over one leg.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Anthro Elevate Original Corner
Summary of Contents for Anthro Elevate Original Corner
- Page 1 90 lbs. over one leg. Part Number: ELBCzz-xx4 Anthro Corporation | 10450 SW Manhasset Dr. | Tualatin, OR 97062 ® Toll-free: 800.325.3841 | Fax: 800.325.0045 | email: sales@anthro.com | anthro.com Outside the U.S. | Tel: 503.691.2556 | Fax: 503.691.2409 November 2013...
-
Page 2: Parts List
Product Quantity Part Number W E LC OME 3.5" Grommet 175-5147-00 Thank you for purchasing Elevate,™Corner! If you have Basetube End Cap 175-5158-32 any questions or if we can help you in any way, please Wire Managment Clip 175-5188-00 contact us at 800.325.3841. Crosstube End Cap 175-5190-32 This assembly requires two people. - Page 3 3/4" Phillips Head Screw 325-5370-00 575-5018-00 Flat Washer 325-5379-00 Anthro Medallion 725-5014-00 Zip Tie Screw Mount 400-5152-00 Anthro 3 Way Wrench (not shown) 1 225-5196-00 Keypad Assembly Hex Driver (not shown) 375-5000-00 Keypad 400-5357-00 5/32" Hex Driver Bit (not shown) 375-5003-00...
- Page 4 Top. Make sure that the cords are to the inside. Secure the Leg Assembly to the Top Assembly using 1" Button-hd PB Screws. 1” Button Hd PB Screw 325-5580-00 Questions? Call us at 800.325.3841 or visit anthro.com. We’re happy to walk you through the assembly!
- Page 5 ƒ Align the Leg Plate over the Corner Shelf Cap and slide into place. Using a 7/16" socket, open end wrench, adjustable wrench, or the Anthro three-way wrench, tighten four Lock Nuts onto the threaded pins. ƒ Secure the side of the Leg Plate to the Corner Shelf...
- Page 6 ƒ Plug the Keypad Cable into the Control Box. Insert a Cable Clip into the Table and route the cable through it. Zip Tie Panel Mount Zip Tie Screw Mount Questions? Call us at 800.325.3841 or visit anthro.com. We’re happy to walk you through the assembly!
- Page 7 ST EP 1 2 Install the Cable Troughs ƒ Align each cable trough with the flanges on each leg gusset and the pre-drilled holes on the shelf. Before installing the trough, make sure that cables are routed through the ends of the trough, not into the side of the trough.
- Page 8 *300-5596-00* 300-5596-00 Warranty: Elevate Original Corner has a Lifetime Warranty against manufacturing defects, two years for the electrical system. Cords and plugs are not warranted. Notices: Technology Furniture and Elevate are trademarks of Anthro Corporation. Anthro reserves the right to modify the design and specifications without prior notice.
