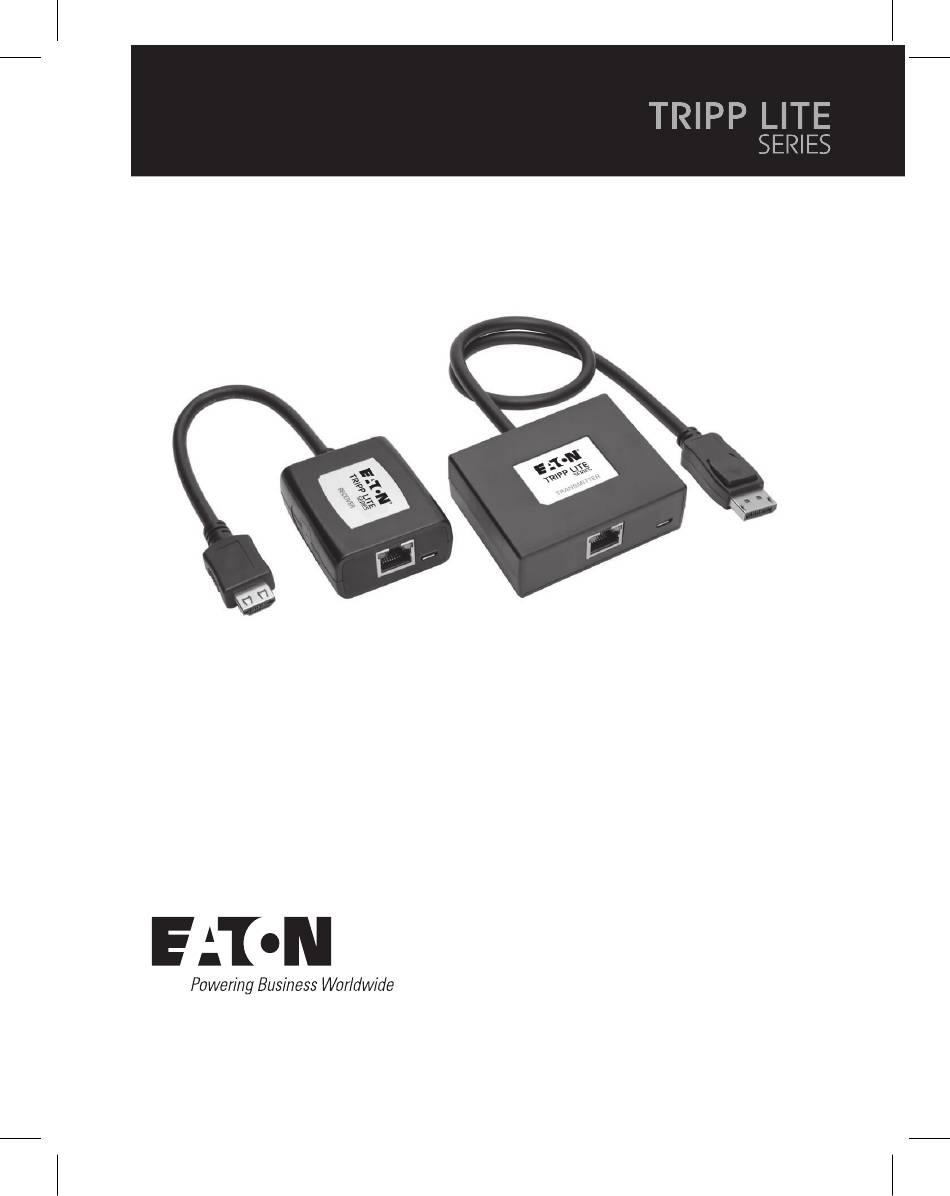

Owner's Manual
DisplayPort to HDMI over
Cat5 Extender Kit
Este manual está disponible en español en la página de Eaton:
Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de Eaton :
Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar:
Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di Eaton:
Tripplite.Eaton.com/support
Model:
B150-1A1-HDMI
Purchased product
may differ from image.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP LITE B150-1A1-HDMI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton TRIPP LITE B150-1A1-HDMI

Summary of Contents for Eaton TRIPP LITE B150-1A1-HDMI

  • Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support...

  • Page 2: Product Features

    Product Features • Converts a DisplayPort audio/video signal for use with an HDMI display • Extends a 1080p (60 Hz) video signal up to 125 ft. or a 1080i (60 Hz) video signal up to 150 ft. • Supports 24-bit True Color (8 bits per channel) and stereo audio •...

  • Page 3: System Requirements

    System Requirements • Computer with a DisplayPort output port* • Display with an HDMI input port *Audio support requires a DisplayPort source that is enabled to support audio. Installation Notes: 1. Test to make sure the entire installation works properly before pulling cables through ceilings/walls.
  • Page 4 Installation Connect the RJ45 port on the transmitter to the RJ45 port on the receiver using Cat5e/6 cable. Note: See the installation diagrams for maximum extension distance at 1080p and 1080i video resolutions. Connect the receiver unit’s built-in HDMI cable to an HDMI monitor input port.

  • Page 5: Troubleshooting

    Troubleshooting If you are unable to get an acceptable image after following the installation instructions, try the troubleshooting tips below: 1. Are the USB Micro-B cables that shipped with the product connected and plugged into a working power source? For the product to function properly, it must be connected to and receiving power from the USB Micro-B cables.
  • Page 6 Troubleshooting 7. Do you have a splitter, switch or other device between the computer and transmitter or between the receiver and display? DisplayPort to HDMI over Cat5 Extender Kit is designed for the transmitter to connect directly with the source computer and for the receiver to connect directly to the display.

  • Page 7: Warranty

    (1) year from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
  • Page 8 Warranty Any changes or modifications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment. WEEE Compliance Information for Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and...
