Owner's Manual
4K 60 Hz HDMI over
Wireless Extender Kit
(HDMI Mini Transmitter + HDMI Mini Receiver)
Este manual está disponible en español en la
página de Eaton: Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site
Web de Eaton : Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der
Eaton-Website verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito
web di Eaton: Tripplite.Eaton.com/support
B127-1A1-WHD4HH
Purchased product
may differ from image.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP LITE B127-1A1-WHD4HH and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton TRIPP LITE B127-1A1-WHD4HH

Summary of Contents for Eaton TRIPP LITE B127-1A1-WHD4HH

  • Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Purchased product Web de Eaton : Tripplite.Eaton.com/support may differ from image. Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support Questo manuale è...

  • Page 2: Important Safety Instructions

    Important Safety Instructions • Do not expose this device to rain or place it near water. Any liquid that goes into the device may cause a failure, fire, or electric shock. • Never insert anything metallic into the open parts of this device. This may cause an electric shock.

  • Page 3: Package Contents

    Package Contents Transmitter x1 Receiver x1 Micro USB cable x2 User Documentation x1 Installation Requirements • HDMI source device (DVD, game console, PC, etc.) • HDMI display device (TV, projector, LED screen, etc.)

  • Page 4: Product Description

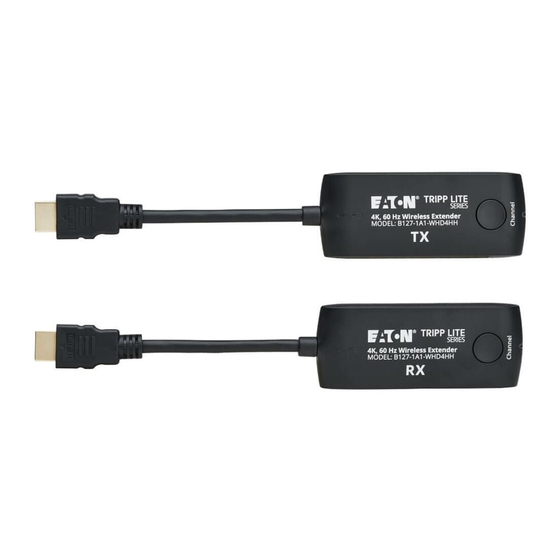

    Product Description Transmitter (TX) 4K, 60 Hz Wireless Extender MODEL: B127-1A1-WHD4HH HDMI input Connects to an HDMI display device WiFi indicator Slow flash: waiting for connection Steady on: connection succeeded Quick flash: SSID Pairing mode Power indicator The indicator will turn red when the power is turned on Channel switch button Press to switch channels...
  • Page 5 Product Description Receiver (RX) 4K, 60 Hz Wireless Extender MODEL: B127-1A1-WHD4HH HDMI output Connects to an HDMI display device WiFi indicator Slow flash: waiting for connection Steady on: connection succeeded Quick flash: SSID Pairing mode Power indicator The indicator will turn red when the power is turned on Channel switch button After connecting with TX, press to switch channels...

  • Page 6: Installation

    Installation 1. Connection Diagram One-to-one connection Receiver USB-C Source Device Transmitter HDMI Display 2. Connection Instructions 1. Connect the transmitter to the HDMI output port of the signal source device. 2. Connect the receiver to the HDMI input port of the display device. 3.
  • Page 7 Q: Why the receiver and transmitter cannot be connected, showing "Search Tx..." on the screen? A: 1) Move transmitter and receiver closer. 2) Re-power the transmitter or receiver. 3) Re-pair the transmitter and receiver. Q: Why the Wi-Fi indicator is steady on but showing "Please check the TX input signal"? A: 1) Make sure the TX has HDMI input and that the resolution is within the specified range.

  • Page 8: Specifications

    Specifications Power Cables Voltage/Current Micro USB (5V/1A) Power consumption TX < 5W, RX < 3.5W HDMI Performance HDMI version HDMI 2.0 and Interface HDCP version HDCP 1.4/HDCP 2.2 Max transmission rate 18 Gbps Resolution supported 3840x2160@24/30/50/60 Hz (YUV 4:4:4, YUV 4:2:2 and RGB),1080p@50/60 Hz, 720p@50/60 Hz, 1920x1200@60 Hz Input and output...
  • Page 9 Specifications Operating Operating temperature -4~122°F (-20~50°C) Environment Storage temperature -22~158°F (-30~70°C) Humidity (non-condensing) 0~90% RH Physical Properties Dimensions [W x L x H] TX / RX: 1.6 x 9 x 0.6 in. (40 x 230 x 15 mm) Color Black Material Net weight TX: 0.13 lb.

  • Page 10: Warranty

    (1) year from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
  • Page 11 • Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country) • Send the new equipment back for recycling when this ultimately becomes waste Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
  • Page 12 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2024 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 24-03-148 / 93-4996_revB All trademarks are property April 2024 of their respective owners.
