Eaton TRIPP LITE B127F-1A1-MM-DD Owner's Manual

Eaton TRIPP LITE B127F-1A1-MM-DD Owner's Manual

4k/30 displayport over fiber extender kit
Hide thumbs Also See for TRIPP LITE B127F-1A1-MM-DD:

Advertisement

Table of Contents

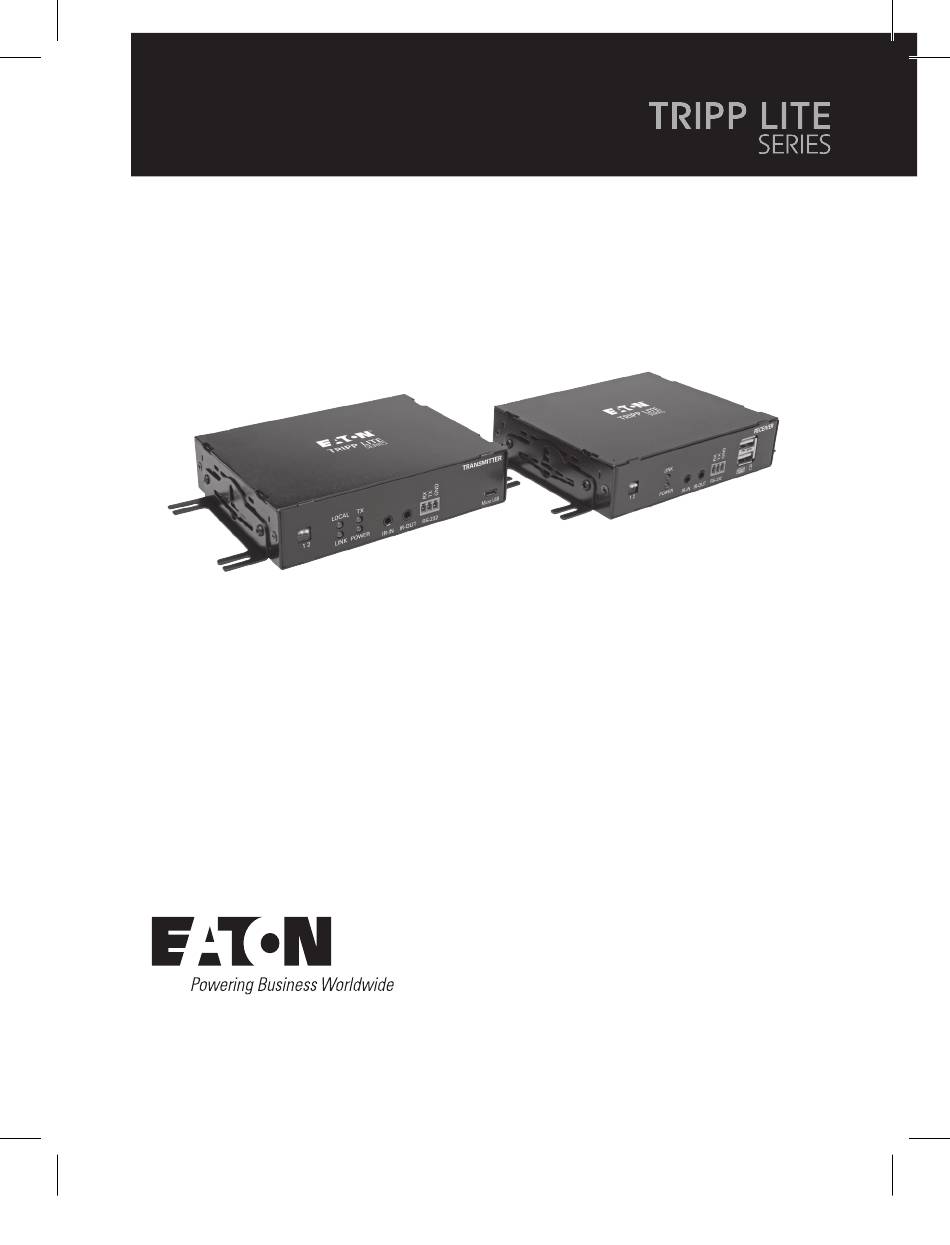

Owner's Manual
4K/30 DisplayPort over
Fiber Extender Kit
Este manual está disponible en español en la página de Eaton:
Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de Eaton :
Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar:
Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di Eaton:
Tripplite.Eaton.com/support
09-157-93393F-EN.indd 1
09-157-93393F-EN.indd 1
Models:
B127F-1A1-MM-DD
(Multimode),
B127F-1A1-SM-DD
(Singlemode)
Purchased product
may differ from image.
11/1/2024 8:44:17 AM
11/1/2024 8:44:17 AM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP LITE B127F-1A1-MM-DD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton TRIPP LITE B127F-1A1-MM-DD

Summary of Contents for Eaton TRIPP LITE B127F-1A1-MM-DD

  • Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support...

  • Page 2: Package Contents

    Package Contents B127F-1A1-MM-DD (DisplayPort over Duplex LC Multimode Fiber Extender Kit) • Transmitter Unit • Receiver Unit • Mounting Hardware • External Power Supply (x2) B127F-1A1-SM-DD (DisplayPort over Duplex LC Singlemode Fiber Extender Kit) • Transmitter Unit • Receiver Unit •...

  • Page 3: Optional Accessories

    Product Features • Transmitter and receiver units feature built-in: B127F-1A1-MM-DD – 10G Multimode LC, 850nm, 300M, DDM transceivers B127F-1A1-SM-DD – 10G Singlemode LC, 1310nm, 10KM, DDM transceivers • Local port at transmitter with built-in multi-resolution technology connects any display without affecting 4K/30 Hz signal transmission •...

  • Page 4: Mounting Instructions

    Mounting Instructions Both extender kit models include mounting hardware that allows for a variety of mounting methods. The following images illustrate how the included mounting brackets can be attached for different installations. Note: The model shown in the below images is for illustrative purposes only. Your product may vary by model number, size or port orientation.

  • Page 5: Standard Extender Kit Installation

    Standard Extender Kit Installation Before installation, check the following settings of your source(s) and TV/monitor(s): 1. Set the display to 30 Hz. Double-check the factory settings, as the default can be set to a lower frequency (Hz) than advertised. 2. Verify your monitor has the HDR feature enabled. Some displays may have this feature disabled as a factory setting.
  • Page 6 Standard Extender Kit Installation B127F-1A1-XX-DD B127-1A1-MM-DD: Up to 1000 ft. (300 m) Extender Kits multimode fiber cable B127-1A1-SM-DD: Up to 2.6 mi. (10 km) singlemode fiber cable Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/30 Hz Up to 15 ft. (4.5 m) DisplayPort cable at 4K/30 Hz PC with USB RS-232 (Keyboard + Mouse)
  • Page 7 Turn on the power to all of your connected displays (local and remote). Connect the external power supply to the local transmitter unit and plug it into an available wall outlet or (optional) an Eaton Tripp Lite series Surge Protector, Power Distribution Unit (PDU) or Uninterruptible Power Supply (UPS).

  • Page 8: Dip Switch Settings

    DIP Switch Settings Note: This section applies to both B127-1A1-MM-DD and B127-1A1-SM-DD extender kits. The extender kits provide one of the following functions via DIP switch settings: • USB 1.1 – One Micro-USB input at transmitter, dual USB-A outputs at receiver •...

  • Page 9: Warranty And Product Registration

    Visit Tripplite.Eaton.com/warranty today to register your new product. You’ll be automatically entered into a drawing for a chance to win a FREE Eaton Tripp Lite series product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
  • Page 10 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment. 09-157-93393F-EN.indd 10 09-157-93393F-EN.indd 10...
  • Page 11 Eaton has a policy of continuous improvement. Specifications are subject to change without notice. 09-157-93393F-EN.indd 11 09-157-93393F-EN.indd 11...
  • Page 12 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2024 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 24-09-157 / 93-393F_RevC All trademarks are property November 2024 of their respective owners. 09-157-93393F-EN.indd 12 09-157-93393F-EN.indd 12...
