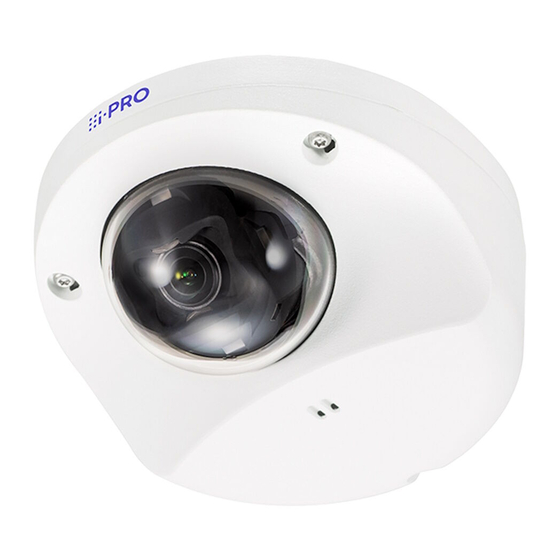

- Page 1 W e b g u i d e c o v e r t e m p l a t e ( f o r c a m e r a s ) Web Guide WV-X35402-F2LM/ WV-X35302-F2LM WV-X35402-F2L/ WV-X35302-F2L WV-S35402-F2L/ WV-S35302-F2L...
-
Page 2: Table Of Contents
Contents Contents 1. Set up ……………………………………………………………………… 1.1 Install using Base Bracket …………………………………………………… 2. Connect to the camera …………………………………………………… 2.1 IP Setting Software ………………………………………………………… 2.2 Access the camera …………………………………………………………… 2.3 About Live image pages ……………………………………………………… 3. - Page 3 3.13.1 About the Setting of Stream ……………………………………………… 3.13.2 About delivery volume control (bit rate) ………………………………… 3.13.3 Reducing Data Capacity with Smart Coding ……………………………… 3.14 i-PRO Configuration Tool (iCT) …………………………………………… 4. Clean up …………………………………………………………………… 4.1 Cleaning of lenses ……………………………………………………………...
- Page 4 Contents 6.6.3 Set the high light compensation …………………………………………… 6.6.4 Adjust the adaptive black stretch ………………………………………… 6.6.5 Adjust the [Pedestal level] ………………………………………………… 6.7 Adjust the object contrast …………………………………………………… 6.7.1 Adjust the contrast ………………………………………………………… 6.8 Reduce flicker ………………………………………………………………… 6.9 ...
-
Page 5: Set Up
1.1 Install using Base Bracket 1. Set up For detailed instructions on installation, refer to the following. Installation Install using Base Bracket The URL of the movie is as follows. https://youtu.be/3LQrU489GEs... -
Page 6: Connect To The Camera
2.2 Access the camera 2. Connect to the camera IP Setting Software Cameras or recorders on the same network can be automatically detected and set up in the network. Refer to the following for details on the IP Setting Software. →Click here for more information on the IP Setting Software Access the camera Launch a IP Setting Software... - Page 7 2.2 Access the camera Enter administrator username and password ・ The screen for setting the language and date and time is displayed. Set the language, date and time, and screen ・ You can set the language and date and time and change the background color of the screen and the layout of the operation panel.
-
Page 8: About Live Image
2.3 About Live image pages About Live image pages ① Camera title ② SD Storage Status Display ③ Stream information display ④ Snapshot button ⑤ Stream selection display button ⑥ Before/after image comparison switching button ⑦ Support button ⑧ Full Screen View button ⑨... - Page 9 2.3 About Live image pages ⑮ Main area ⑯ Camera Control Panel-SD Memory Card-[Log/Play] ⑰ Alarm notification ⑱ Camera Control Panel-SD Memory Card-[Rec. on SD] ⑲ Camera Control Panel-[Mic input volume (Camera to PC)] ⑳ Camera Control Panel-[Brightness]...
-
Page 10: Set The Camera
3.2 Adjust the image quality 3. Set the camera Check whether the object is of the proper size. When using our Extension software, you can check the number of grids to see if it is the right size to recognize object. -
Page 11: Set White Balance Depending On The Lighting Environment You Install
3.2 Adjust the image quality Select [Light control mode] To install outdoors: Set [ELC]. For indoor installation: Set [Indoor scene(50Hz)] or [Indoor scene(60Hz)]. 50 Hz/60 Hz can be used differently depending on the region. 3.2.2 Set white balance depending on the lighting environment you install. Use [White balance] to set the white balances appropriate for the installation location and area. -
Page 12: Sets Night Time Black-And-White Switching Mode
3.2 Adjust the image quality 3.2.3 Sets night time black-and-white switching mode You can switch to color or black-and-white images by using [Day & Night(IR)] when shooting at night. ➣ Live image pages configuration panels>Clicking the [Image quality] tabs enables you to set the image quality. -
Page 13: Recording Setting (Sd Memory Card)
3.3 Recording setting (SD Memory Card) Recording setting (SD Memory Card) 3.3.1 Install the SD Memory Card Remove the enclosure Insert a microSD memory card into the slot Use the SD Memory Card formatted on this product. To remove the SD Memory Card, [Basic] the Advanced menu.>On the [SD memory card] tab, select [SD memory card] as [Not use]. -
Page 14: Adjust The Zoom
3.5 Hide some of the images ➣ Live image pages cameras control panels>Clicking [Log/Play] displays the log list. View Live image pages and click the camera operation panel display button. Press the [Log/Play] [Start] button ・ The Log List screen is displayed in a separate window. Press the shooting date and time displayed below [Time] ・... -
Page 15: Identify Sounds With Ai
3.8 Set up events Identify sounds with AI Image monitoring can be enhanced by identifying and detecting human cries, broken glass sounds, horns, guns, and other sounds. ➣ Live image pages configuration panels>[Detail setting]>[Camera detailed setting]>[Topic]> Advanced Menu>[Alarm]>Clicking on the [Audio detection] tabs displays the configuration pages. -
Page 16: Detect Object Movements
3.8 Set up events displays the configuration pages. ・Refer to the User Manual for instructions on configuring events. ・Refer to the User Manual for instructions on how to configure Internet disclosure. 3.8.1 Detect object movements When an alarm is activated, the camera operates as set. There are patterns for the alarms when the specified area moves and when the camera is blocked. -
Page 17: Enhance Communication Security
3.12 Set the overlay image function Enhance communication security Setting up HTTPS encrypts camera access and enhances communication security. ・ Refer to the following support videos for the HTTPS setting method (pre-installation). →Support video ・ For information about how to configure HTTPS (CA certificate), refer to the following supported videos. -
Page 18: Set The Image Stream
3.13 Set the image stream In the model where the SD Memory Card can be recorded, the overlay displayed images are recorded during recording. Refer to the User Manual for details on how to configure the settings. ➣ Live image pages configuration panels>[Detail setting]>[Camera detailed setting] [Advanced settings page]>[Basic] of the Advanced menus on the left>Configure in the [Overlay image] tabs. -
Page 19: Reducing Data Capacity With Smart Coding
3.13 Set the image stream ・ Variable bit rate: The H.265 (or H.264) images are delivered at the frame rate set by [Frame rate*] while maintaining the image quality level set by [Image quality]. At this time, the bit rate is varied within the maximum bit rate set by [Max bit rate (per client) *]. -
Page 20: I-Pro Configuration Tool (Ict)
You can reduce the amount of data. 3.14 i-PRO Configuration Tool (iCT) This is a tool for managing the image monitoring system at a glance. For more information about i-PRO Configuration Tool (iCT), see the following. →Click here for more information about i-PRO Configuration Tool... -
Page 21: Clean Up
4.2 Cleaning of Dome covers 4. Clean up ・Turn off the power before starting operation. Doing so may result in injury. ・Do not apply or use organic solvents such as benzene and thinner. The enclosure may become discolored. Follow the precautionary statement when using chemical foil. -
Page 22: Specifications
5.2 About Image capture mode and Image capture size 5. Specifications PC environment required Ⓡ CPU: Intel Core Processor family Ⓡ -Intel Core i5-6500 or more Ⓡ -Intel Core i7-6700 or higher recommended Memory: Recommended at least 4 GB (2 GB x 2, dual channel) Network function: 10BASE-T/100BASE-TX 1 port Sound function:... -
Page 23: Image Capture Size
5.2 About Image capture mode and Image capture size 5.2.1 Image capture size It's Image capture size. The initial value is underlined. <WV-S35402-F2L><WV-X35402-F2LM><WV-X35402-F2L> Image capture Stream (1) Stream(2) Stream(3) JPEG(1) JPEG(2) mode 16:9(30fps) 2688x1520 2688x1520 2688x1520 1920x1080 1920x1080 1920x1080... - Page 24 5.2 About Image capture mode and Image capture size maximum frame rate for Stream (2) (3) is "15(12.5) fps". *4 If you select "2688 x 1520" or "2560 x 1440" in [Image capture size], the maximum frame rate is 2 fps (2.1 fps). ...
-
Page 25: Symbol Restrictions
*3 If [Off] is selected in [Stream transmission], the maximum frame rate is 30 fps (25 fps). *4 If [Off] is selected in [Stream transmission], the maximum frame rate is 15 ps (12.5 fps). 5.2.2 Symbol restrictions <WV-S35402-F2L><WV-X35402-F2LM><WV-X35402-F2L> Image Extensio Stabilizer SD Smart... -
Page 26: Dori
5.5 About Available Extension software DORI WV-S35402-F2L/ WV-S35302-F2L/ WV- WV-X35402-F2LM X35302-F2LM Detect (25 ppm/8 ppf) 29.0 m 17.1 m 95.0 ft 56.1 ft Observe (62.5 ppm/19 ppf) 11.6 m 6.8 m 38.0 ft 22.4 ft Recognize (125 ppm/38 ppf) 5.8 m... - Page 27 5.5 About Available Extension software Please refer to the Technical Information Website (C0103) for information on the latest software responses and restrictions during use. →Technical information website <WV-S35402-F2L><WV-X35402-F2LM><WV-X35402-F2L> Software name Pre-installation Support status AI-VMD Supported AI Privacy Guard Not supported...
-
Page 28: Lamp
5.6 Lamp Lamp ① LINK lamp ② ACT lamp ③ SD ERROR lamp 5.6.1 Lighting of the lamp LINK lamp When communication with connected devices becomes possible Orange LED is ON... - Page 29 5.6 Lamp ACT lamp When the camera sends and receives data Green LED is flashing (accessed) SD ERROR lamp ・ During this product startup - Red ON ・ When the SD Memory Card is successfully recognized - Red LED is ON → OFF ・...
-
Page 30: Button
5.7 Button Button ① INITIAL SET button... -
Page 31: Cable
5.8 Cable Cable ① Ethernet cable (category 5e or more, straight, 4 pairs (8 cores))<WV-S35402-F2L>< WV-S35302-F2L> ② M12 (female) network cable<WV-X35402-F2LM><WV-X35302-F2LM>... -
Page 32: Other
6.2 Check the software version 6. Other Initialize INITIAL SETPress the button to initialize the main unit.INITIAL SETSee below for the position of the buttons. →Button Turn off the computer. Turn on the computer while pressing the [INITIAL SET] button. Press the [INITIAL SET] button for 15 seconds or longer after the power is turned on. -
Page 33: Order Of Setting When Adjusting Image Quality
6.4 Adjusting object brightness (bright scenes) Order of setting when adjusting image quality It is recommended to set the settings for image quality in the following order: Adjustment of visibility → Adjustment of color → Removal of noise. Adjust the visibility ・... -
Page 34: Adjusting Object Brightness (Dark Scenes)
6.5 Adjusting object brightness (dark scenes) Produce darker Create the images brighter the photos Adjusting object brightness (dark scenes) 6.5.1 Adjust the maximum gain In dark scenes, the image becomes brighter by increasing the maximum gain. ➣ Live image pages configuration panels>Clicking the [Image quality] tabs enables you to set the image quality. -
Page 35: Reducing White Flickering And Blacking On The Screen
6.6 Reducing white flickering and blacking on the screen Select [Maximum shutter] ・ Selecting [Maximum shutter] longer than [Max. 1/30s] brightens the image because the amount of light entered increases. Increasing the maximum shutter increases the blur. Maximum shutter : 1/30 Maximum shutter : 4/30 Reducing white flickering and blacking on the screen 6.6.1... -
Page 36: Set The Backlight Compensation
6.6 Reducing white flickering and blacking on the screen 6.6.2 Set the backlight compensation By setting [Backlight Corrector], the darkness of the indoor object is suppressed (brighter indoor object). ➣ Live image pages configuration panels>[Detail setting]>[Camera detailed setting] [Advanced settings page]>[Image] or [Image/Audio] of the Advanced menus on the left>[Image adjust] in the [Image quality] tabs>When [Advanced settings] is clicked, the image quality adjustment setting window is displayed. -
Page 37: Adjust The Adaptive Black Stretch
6.6 Reducing white flickering and blacking on the screen ➣ Live image pages configuration panels>[Detail setting]>[Camera detailed setting] [Advanced settings page]>[Image] or [Image/Audio] of the Advanced menus on the left>[Image adjust] in the [Image quality] tabs>When [Advanced settings] is clicked, the image quality adjustment setting window is displayed. -
Page 38: Adjust The [Pedestal Level]
6.7 Adjust the object contrast 6.6.5 Adjust the [Pedestal level] Adjust the pedestal level to adjust the black level of the image. ➣ Live image pages configuration panels>[Detail setting]>[Camera detailed setting] [Advanced settings page]>[Image] or [Image/Audio] of the Advanced menus on the left>[Image adjust] in the [Image quality] tabs>When [Advanced settings] is clicked, the image quality adjustment setting window is displayed. -
Page 39: Reduce Flicker
6.9 Reducing the blur of object (bright scenes) Reduce flicker Flickers are automatically corrected by using [Light control mode]. ➣ Live image pages configuration panels>Clicking the [Image quality] tabs enables you to set the image quality. Select [Flickless (50 Hz)] or [Flickless (60 Hz)] for [Light control mode]. ・... -
Page 40: Adjust The Maximum Shutter
6.10 Reducing object blur (dark scenes) Off (person On (less blurring) blurred) 6.9.2 Adjust the maximum shutter Shortening the maximum shutter reduces blur. ➣ Live image pages configuration panels>Clicking the [Image quality] tabs enables you to set the image quality. Selecting a shorter [Maximum shutter] than [Max. -
Page 41: Delineate The Object
6.11 Delineate the object ➣ Live image pages configuration panels>Clicking the [Image quality] tabs enables you to set the image quality. Adjust the [Digital noise reduction] in the [-] direction. If the effect of noise reduction is reduced, the noise will increase. Level: 128 Level: 100 Reduce the blur... -
Page 42: Adjust The Color
6.12 Adjust the color 6.12 Adjust the color 6.12.1 Adjust color density Adjust the [Chroma gain level] to adjust the darkness. ➣ Live image pages configuration panels>[Detail setting]>[Camera detailed setting] [Advanced settings page]>[Image] or [Image/Audio] of the Advanced menus on the left>[Image adjust] in the [Image quality] tabs>When [Advanced settings] is clicked, the image quality adjustment setting window is displayed. -
Page 43: Reducing Object Noise (Bright Scenes)
6.14 Reducing object noise (dark scenes) 6.13 Reducing object noise (bright scenes) 6.13.1 Adjust the sharpness level Adjusting the [Sharpness level] to make the images soft reduces the noise around the object. ➣ Live image pages configuration panels>Clicking the [Image quality] tabs enables you to set the image quality. -
Page 44: Troubleshooting
6.15 Troubleshooting 6.15 Troubleshooting Check the symptoms on this table before asking for repair. Contact the dealer from whom you purchased the watch if you do not recover from any of these problems or if you have symptoms other than those listed in this table. Phenomenon Cause Countermeasures... -
Page 45: Precautions Pertaining To Usage
6.16 Precautions pertaining to usage Phenomenon Cause Countermeasures Reference The SD ERROR lamp ・An SD Memory Card Replace the SD — illuminates red. read/write error has Memory Card with a occurred. Is an normal one. abnormal memory card inserted? Removing the Depending on the If the enclosure is... - Page 46 6.16 Precautions pertaining to usage of snow adherence depends on the amount of snow fall and the snow quality) - Contamination of the Dome covers due to airborne dust or automotive exhaust ・ About the built-in microphone - If water adheres to the opening of the built-in microphone, the sound volume may drop. Allow it to dry thoroughly before use.
-
Page 47: Disclaimer
6.17 Disclaimer IN NO EVENT SHALL i-PRO Co.、 Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPTFOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES,INCLUDING BUT NOT LIMITED TO BELOW: ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT,SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THEPRODUCT;... -
Page 48: Network Relationship
6.18 NETWORK RELATIONSHIP Limitation of liability THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHEREXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OFMERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OFTHE THIRD PARTY'S RIGHT. THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICALERRORS.
