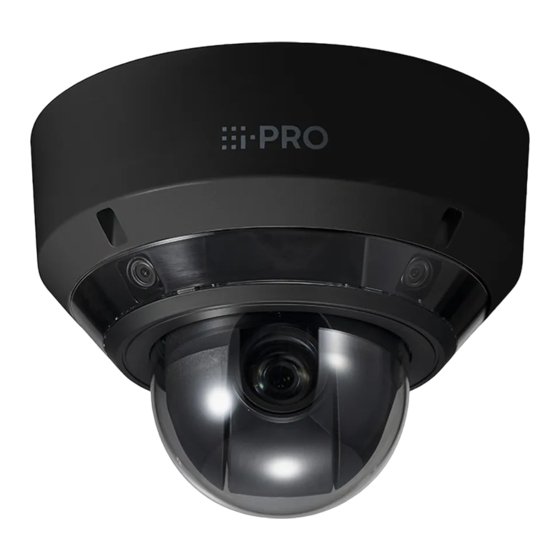

i-PRO WV-X86531-Z2-1 Web Manual
Hide thumbs Also See for WV-X86531-Z2-1:
Table of Contents

Advertisement

Quick Links

Web Guide
WV-X86531-Z2
Ver 1.2

Advertisement

Table of Contents
loading

Summary of Contents for i-PRO WV-X86531-Z2-1

  • Page 1 W e b g u i d e c o v e r t e m p l a t e ( f o r c a m e r a s ) Web Guide WV-X86531-Z2 Ver 1.2...
  • Page 2: Table Of Contents

    Contents Contents 1.   Unique features …………………………………………………………… 2.   Set up ……………………………………………………………………… 2.1   Install on the ceiling ………………………………………………………… 2.1.1   Ceiling surface mount installation ………………………………………… 2.2   Wall pendant mount installation ……………………………………………… 2.3   Ceiling embedded mount installation ………………………………………… 2.4  ...
  • Page 3 4.11.1   About the Setting of Stream ……………………………………………… 4.11.2   About delivery volume control (bit rate) ………………………………… 4.11.3   Reducing Data Capacity with Smart Coding ……………………………… 4.12   i-PRO Configuration Tool (iCT) …………………………………………… 5.   Set the camera (PTZ part) ……………………………………………… 5.1   Adjust the zoom/focus ………………………………………………………...
  • Page 4 Contents 8.2.1   Resolution (PTZ part) ……………………………………………………… 8.2.2   Resolution (Multi part) ……………………………………………………… 8.2.3   Restrictions ………………………………………………………………… 8.3   DORI ………………………………………………………………………… 8.4   Delivery Performance (PTZ part) …………………………………………… 8.5   Delivery Performance (Multi part) …………………………………………… 8.6   About the Function Extension Software Available …………………………...
  • Page 5 Contents 9.11   Reduce the blur of an object (bright scene) ………………………………… 9.11.1   Set intelligent auto (motion priority level) ………………………………… 9.11.2   Adjust the maximum exposure time ……………………………………… 9.12   Redue the blur of an object (dark scene) ………………………………… 9.12.1  ...
  • Page 6: Unique Features

    1.   Unique features 1.   Unique features This unit is a Dome surveillance cameras used outdoors. ・ The PTZ camera (hereinafter referred to as the "PTZ" part) is mounted in the center, and several Multi-directional cameras are mounted in the vicinity of the camera to adjust the tilt. ・...
  • Page 7: Set Up

    2.   Set up 2.3   Ceiling embedded mount installation 2.   Set up Please refer to the following manual for details of installation. Installation Guide Install on the ceiling 2.1.1 Ceiling surface mount installation The URL of the movie is as follows. https://youtu.be/zgECqiI2VFE Wall pendant mount installation The URL of the movie is as follows.
  • Page 8: Use The Tilt Adjusting Lever To Determine The Shooting Range

    2.   Set up 2.4   Use the TILT adjusting lever to determine the shooting range Use the TILT adjusting lever to determine the shooting range The TILT adjusting lever allows you to change the TILT angle of all multi part cameras simultaneously.
  • Page 9: Scope Of Shooting

    2.   Set up 2.4   Use the TILT adjusting lever to determine the shooting range 2.4.2 Scope of shooting This section describes the range of shooting with each TILT angle. 2.4.2.1 Installation height: 6 m Shooting range Infinite (whole area) Radius 53.4 m(175.2 ft)...
  • Page 10: Connect To The Camera

    3.   Connect to the camera 3.2   Access the camera 3.   Connect to the camera IP Setting Software Cameras or recorders on the same network can be automatically detected and set up in the network. Refer to the following for details on the IP Setting Software. →Click here for more information on the IP Setting Software Access the camera (1) Launch an IP Setting Software...
  • Page 11 3.   Connect to the camera 3.2   Access the camera (3) Enter administrator username and password ・ Enter the username and password in both the PTZ and multi parts. ・ When [Set both cameras] is checked, the information entered in either the PTZ part or the multi part is set to both cameras.
  • Page 12 3.   Connect to the camera 3.2   Access the camera (4) Set the language, date and time, and screen ・ You can set the language and date and time and change the background color of the screen and the layout of the operation panel. (5) Click [Set] ・...
  • Page 13: About Live Image

    3.   Connect to the camera 3.3   About live image pages (6) Select the position of the TILT adjustment lever set when the camera is installed. ・ Live image pages are displayed. About live image pages 3.3.1 Live image page in the multi part ①...
  • Page 14: Live Image Page In The Ptz Part

    3.   Connect to the camera 3.3   About live image pages When the layout is [Up/Down] (multi part) 3.3.2 Live image page in the PTZ part ① The currently selected camera is displayed. ② Multi part switching button ③ Snapshot button...
  • Page 15 3.   Connect to the camera 3.3   About live image pages ④ Stream selection display button ⑤ Support button ⑥ Full Screen View button ⑦ [Grid display] button ⑧ Camera control panel display button ⑨ [Set] button ⑩ Main area ⑪...
  • Page 16: Set The Camera

    4.   Set the camera 4.2   Hide some of the images 4.   Set the camera Check whether the object is of the appropriate size When using our function extension software, you can check the number of grids to see if the size is adequate to recognize the object.
  • Page 17: Adjust The Image Quality

    4.   Set the camera 4.3   Adjust the image quality Adjust the image quality This section explains how to adjust the image quality when installing the camera. 4.3.1 Set the light intensity control mode depending on the installation location and installation area Use [Light control mode] to set the light intensity appropriate for the installation location and area.
  • Page 18: Sets Night Time Black-And-White Switching Mode

    4.   Set the camera 4.3   Adjust the image quality [ATW2] Set the automatic color temperature tracking mode. The camera automatically adjusts the white balance under a sodium lamp. The operating range is from about 2000 K to 6000 K. [AWC] Set the automatic white balance control mode.
  • Page 19: Recording Setting (Sd Memory Card)

    4.   Set the camera 4.4   Recording setting (SD Memory Card) [Auto3(SCC)] Set this when you want to maintain a color image even when the light source is dark. The Super Chroma Compensation (SCC) function maintains the color image to low illumination. Recording setting (SD Memory Card) 4.4.1 Install the SD Memory Card...
  • Page 20: Play Back Images Stored On The Sd Memory Card

    4.   Set the camera 4.5   Set up events ・ Start recording to the SD Memory Card manually. ・ You can stop recording by clicking [Stop]. After stopping, you can resume recording by clicking [Start]. ・The SD Memory Card cannot be used when the imaging mode of the PTZ is [16:9 mode (60 pfs mode/50 fps mode)].
  • Page 21: Set The Integrateion Between The Ptz And Multi Part

    4.   Set the camera 4.6   Set the integrateion between the PTZ and multi part detects the movement of the specified area or when the camera is blocked. ➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Display]> Advanced Menu>Clicking [Alarm] displays the configuration page. Refer to the user manual for details of all alarms.
  • Page 22: Manual Integration

    4.   Set the camera 4.6   Set the integrateion between the PTZ and multi part The URL of the movie is as follows. https://youtu.be/hUY1xJ18PdU   ➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Ext. software] in the Advanced menu on the left>Clicking [Setup >>] in [AI-VMD (Camera 1)], [AI-VMD (Camera 2)], [AI-VMD (Camera 3)], and [AI-VMD (Camera 4)] displays the setting window.
  • Page 23: Enhance Communication Security

    4.   Set the camera 4.10   Set the overlay image function Enhance communication security Setting up HTTPS encrypts camera access and enhances communication security. ・ Refer to the following support video for the HTTPS setting method (Pre-installed). →Support video ・...
  • Page 24: Set The Image Stream

    4.   Set the camera 4.11   Set the image stream ➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Basic] in the Advanced menu on the left>Configure in the [Overlay image] tab. (1) Select an image with [Overlay] set to [On]. (2) Set [Position], [Permeation], and [Selection of color to be penetrated] (3) Click [Set] 4.11...
  • Page 25: Reducing Data Capacity With Smart Coding

    4.   Set the camera 4.11   Set the image stream on the [Image quality] settings and object conditions. ・ Specify Frame Rate: H.265 (or H.264) images are delivered at the frame rate set by [Frame rate*]. ・ Best effort delivery: Depending on the bandwidth of the network, H.265 (or H.264) images are delivered with varying bit rates within the maximum bit rate set by [Max bit rate (per client) *].
  • Page 26: I-Pro Configuration Tool (Ict)

    4.12   i-PRO Configuration Tool (iCT) 4.12 i-PRO Configuration Tool (iCT) This is a tool for managing the image monitoring system in one place. For more information about i-PRO Configuration Tool (iCT), see the following. →Click here for more information about i-PRO Configuration Tool...
  • Page 27: Set The Camera (Ptz Part)

    5.   Set the camera (PTZ part) 5.2   Hide some of the images 5.   Set the camera (PTZ part) Adjust the zoom/focus You can manually or automatically adjust the zoom or focus of the displayed image. ➣ You can set zoom and focus by clicking the [Camera control] buttons on the live image page. Configure [Zoom], [Focus], and [Displays the auto focus frame] on the [PTZ] tab ・...
  • Page 28: Display The Angle, Direction, Magnification, Etc. In The Image

    5.   Set the camera (PTZ part) 5.4   Set the camera operation Display the angle, direction, magnification, etc. in the image You can select the information displayed in the image when you manually operate it. ➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>Clicking [PTZ] in the Advanced menu on the left displays the [Cam.
  • Page 29 5.   Set the camera (PTZ part) 5.4   Set the camera operation page. Settings for each operation are made from the Advanced menu. 5.4.2.1 Automatically track and shoot objects When movement is detected in the set alarm area, the target is automatically tracked and shot. ➣...
  • Page 30: Identify Sounds With Ai

    5.   Set the camera (PTZ part) 5.5   Identify sounds with AI 5.4.2.4 Set up patrols The patrol function stores PAN/TILT/ZOOM/Focus and reproduces the stored operation. When you register a patrol, a patrol is displayed on the [Auto mode] of the live image page. ➣...
  • Page 31: Record Sound

    5.   Set the camera (PTZ part) 5.6   Record sound Record sound Audio data can be recorded to SD recording when an alarm is detected. (1) Select whether to record audio data in the SD recording setting screen. ・ [On] : Audio data is saved in videos (MP4 format). ・...
  • Page 32: Setting Camera (Multi Part)

    6.   Setting Camera (Multi part) 6.1   Hide some of the images 6.   Setting Camera (Multi part) Hide some of the images ➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Image] in the Advanced menu on the left>[Privacy zone] in the [Image quality] tab>Click [Setup] to open the Privacy Zone Setting window.
  • Page 33: Clean Up

    7.   Clean up 7.2   Cleaning of Dome covers 7.   Clean up ・Turn off the power before starting operation. Otherwise, it may result in injury. ・Do not apply or use organic solvents such as benzene and thinner. The enclosure may become discolored.
  • Page 34: Specifications

    8.   Specifications 8.2   Image capture mode and Image capture size 8.   Specifications PC environment required Ⓡ CPU: Intel Core processor family Ⓡ -Intel Core i5-6500 or more Ⓡ -Intel Recommended at least Core i7-6700 Memory: Recommended at least 4 GB (2 GB x 2, dual channel) Network function: 10BASE-T/100BASE-TX/1000BASE-T 1 port Sound function:...
  • Page 35: Resolution (Ptz Part)

    8.   Specifications 8.2   Image capture mode and Image capture size used, the bit rate may be lower than the set value. Confirm the image delivered after setting. 8.2.1 Resolution (PTZ part) Resolution of the PTZ part. The initial value is underlined. Image captur Stream (1) Stream(2)
  • Page 36: Resolution (Multi Part)

    8.   Specifications 8.2   Image capture mode and Image capture size 8.2.2 Resolution (Multi part) This is the resolution of the multi part. The initial value is underlined. Image capture mode Stream(1) Stream(2) JPEG(1) 16:9(15fps) 3072x1728 3072x1728 16:9(12.5fps) 2560x1440 2560x1440 1920x1080 1920x1080...
  • Page 37: Restrictions

    8.   Specifications 8.3   DORI 8.2.3 Restrictions PTZ part Image capture SD recording Extension Intelligent Smart coding Automatic tracking mode software Auto 16:9(60/50fps) No 16:9(30/25fps) Yes 4:3(30/25fps) Yes 4:3(15/12. 5fps) Multi part Image capture SD recording Extension software Intelligent Auto Smart coding mode *1 *2...
  • Page 38: Delivery Performance (Ptz Part)

    8.   Specifications 8.6   About the Function Extension Software Available 14.8 ft 48.5 ft 17.0 ft 424.5 ft ppm/76 ppf) Delivery Performance (PTZ part) ・ Up to 14 users can access the PTZ part at the same time. ・ The maximum bandwidth is 50 Mbps. Delivery Performance (Multi part) ・...
  • Page 39 8.   Specifications 8.6   About the Function Extension Software Available (continued) PTZ part AI Vehicle Detection Supported AI Non-Mask Detection Supported AI Occupancy Detection Supported AI Scene Change Detection Supported Multi part App name Pre-installed Support status AI-VMD Supported AI Privacy Guard Not supported AI People Detection...
  • Page 40: Tilt Adjusting Lever

    8.   Specifications 8.7   TILT adjusting lever TILT adjusting lever ① TILT adjusting lever...
  • Page 41: Lamp

    8.   Specifications 8.9   Lighting of the lamp Lamp ① LINK lamp ② ACT lamp ③ Multi part SD/ERROR lamps ④ PTZ part SD/ERROR lamps Lighting of the lamp LINK lamp   When communication with connected devices becomes possible Orange LED is ON ACT lamp  ...
  • Page 42: Button

    8.   Specifications 8.10   Button SD ERROR lamp ・ Machine is running - Red ON ・ When the SD Memory Card is successfully recognized - Red LED is ON → OFF ・ If the SD slot is not used or an SD Memory Card error is detected after startup - Red ON For more information about lamps, refer to the User manual.
  • Page 43: Cable

    8.   Specifications 8.12   MicroSD memory card slot 8.11 Cable * This cable is not used. Waterproof it with the other cables. ① RJ45 network cable ② Audio input cable (white) ③ Audio output cable (black) ④ External I/O cable ⑤...
  • Page 44 8.   Specifications 8.12   MicroSD memory card slot ① MicroSD slot (multi part) ② MicroSD slot (PTZ part)
  • Page 45: Other

    9.   Other 9.3   Check the software version 9.   Other Initialize Press the INITIAL SET button to initialize the main unit. See below for the position of the INITIAL SET button. →Button (1) Disconnect the Ethernet cable from the computer and turn off the computer. (2) Turn on the computer while pressing the [INITIAL SET] button.
  • Page 46: Upgrade Software

    9.   Other 9.5   Order of setting when adjusting image quality ➣ Clicking on the Live image pages Settings panels > [Detailed setting] > [Camera detailed setting] > [Maintenance] > [Upgrade] tabs in the Advanced menus to the left will bring up a window with versions.
  • Page 47: Adjust Brightness Of The Object (Bright Scene)

    9.   Other 9.6   Adjust brightness of the object (bright scene) (1) Adjust the visibility ・ [Light control mode], [Intelligent Auto], [Super Dynamic], [Contrast level], [High light compensation(HLC)], [Adaptive black stretch], [Adaptive highlight stretch], [Maximum gain], [Maximum shutter], [pedestal level] (2) Adjust the color ・...
  • Page 48: Adjust The Brightness Of The Object (Dark Scene)

    9.   Other 9.7   Adjust the brightness of the object (dark scene) [Image quality] in the multi part live image page>[Brightness] cannot be set when [Common(Cam. 1-2)] is selected in [Camera selection]. To configure [Brightness], select anything other than [Common(Cam. 1-2)]. Adjust the brightness of the object (dark scene) 9.7.1 Adjust the maximum gain...
  • Page 49: Reduce White Flickering And Blacking On The Screen

    9.   Other 9.8   Reduce white flickering and blacking on the screen quality. (1) Select [Maximum shutter] of [Light control mode] ・ Selecting [Maximum shutter] longer than [Max. 1/30s] brightens the image because the amount of light entering increases. ・Increasing the maximum exposure time increases blurs.
  • Page 50: Set The Back Light Compensation

    9.   Other 9.8   Reduce white flickering and blacking on the screen 9.8.2 Set the back light compensation Setting [Back light compensation] prevents black clipping of the object indoors in an outdoor environment where strong light enters (brightens the object indoors). ➣...
  • Page 51: Adjust The Adaptive Black Stretch

    9.   Other 9.8   Reduce white flickering and blacking on the screen ➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Image] or [Image/Audio] in the Advanced menu on the left>[Image adjust] in the [Image quality] tab> Click [Setup] to display the image quality adjustment setting screen. (1) Select [High light compensation(HLC)] in [Super Dynamic] [BLC/ HLC] If [Super Dynamic] is set to [On] or [Intelligent Auto] is set to [On], it cannot be set to [High light compensation(HLC)].
  • Page 52: Adjust The Contrast Of The Object

    9.   Other 9.9   Adjust the contrast of the object ➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Image] or [Image/Audio] in the Advanced menu on the left>[Image adjust] in the [Image quality] tab> Click [Setup] to display the image quality adjustment setting screen. (1) Adjust the [Pedestal level] of the [Detailed setting].
  • Page 53: Reduce Flicker

    9.   Other 9.11   Reduce the blur of an object (bright scene) 9.10 Reduce flicker Flickering is automatically corrected by using [Light control mode]. ➣ Live image page setup panel>Clicking the [Image quality] tab enables you to set the image quality.
  • Page 54: Adjust The Maximum Exposure Time

    9.   Other 9.12   Redue the blur of an object (dark scene) 9.11.2 Adjust the maximum exposure time Reducing the maximum exposure time reduces blurs. ➣ Live image page setup panel>Clicking the [Image quality] tab enables you to set the image quality.
  • Page 55: Sharpen The Contour Of The Object

    9.   Other 9.13   Sharpen the contour of the object quality. (1) Adjust the [Digital noise reduction] in the [-] direction. ・If the effect of noise reduction is reduced, the noise will increase. ・[Image quality] in the multi part live image page>[Digital noise reduction] cannot be set when [Common(Cam.
  • Page 56: Adjust The Color

    9.   Other 9.14   Adjust the color 9.14 Adjust the color 9.14.1 Adjust color density Adjust the [Chroma gain level] to adjust the darkness. ➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Image] or [Image/Audio] in the Advanced menu on the left>[Image adjust] in the [Image quality] tab> Click [Setup] to display the image quality adjustment setting screen.
  • Page 57: Reduce Object Noise (Bright Scene)

    9.   Other 9.16   Reduce object noise (dark scene) 9.15 Reduce object noise (bright scene) 9.15.1 Adjust the sharpness level Adjusting the [Sharpness level] to make the images soft reduces the noise around the object. ➣ Live image page setup panel>Clicking the [Image quality] tab enables you to set the image quality.
  • Page 58: Troubleshooting

    9.   Other 9.17   Troubleshooting 9.17 Troubleshooting Check the issues on this table before asking for repair. Contact the dealer from whom you purchased if you do not recover from any of these problems or if you have issues other than those listed in this table. Issue Cause Countermeasures...
  • Page 59 9.   Other 9.17   Troubleshooting (PTZ part) ・The camera may be ・The position is User manual The camera does not out of orientation corrected when face the position set. from the set position. position refresh is executed. When position refresh is set with the schedule function, the camera direction deviation...
  • Page 60 9.   Other 9.17   Troubleshooting ・Is the link lamp ・Check the cable for Operation Manual (LINK) illuminated? faulty contact and Installation If the LED is not wiring. illuminated, the LAN is not connected correctly or the host network is not operating normally.
  • Page 61 9.   Other 9.17   Troubleshooting ・Have you accessed ・Confirm the the wrong IP address? connection using the following method. At the Windows command prompt, enter the following. >Ping "IP address set for the computer" If Reply is returned from the computer after input, it is operating normally.
  • Page 62 9.   Other 9.17   Troubleshooting ・If the network settings (IP address, subnet mask, and default gateway) are incorrect, restart the camera and change the network settings using the IP easy configuration software within 20 minutes. ・In an environment without a DHCP server, restart this unit with the Initialize button and initialize...
  • Page 63 9.   Other 9.17   Troubleshooting When this unit and the ・When accessing this computer are unit within the same connected in the same subnet, it is subnet recommended that ・Are the IP addresses the address of this of this unit and the unit be set to PC set to the same "Remove from proxy".
  • Page 64 9.   Other 9.17   Troubleshooting ・Does the router have ・If your router does port forwarding? not have the UPnP feature, you must configure port forwarding to allow access to this unit from the Internet. Refer to your router's Instruction Manual for how to configure.
  • Page 65 9.   Other 9.17   Troubleshooting The authentication ・Has the username or ・If you change the User manual screen is displayed password been user name or continuously changed? password of a logged-in user in another Web browser while accessing this unit, the authentication screen is displayed each time the screen...
  • Page 66 9.   Other 9.17   Troubleshooting ・URL is wrong. Or, is ・Check that the URL accessed from mobile "/cam" not entered at is entered correctly. or tablet device the end of the URL? When accessing this unit from a mobile device, it is necessary to enter "/cam"...
  • Page 67 9.   Other 9.17   Troubleshooting No image ・Your mobile/device ・Refer to the terminal does not instruction manual for support 320 x 240 your mobile device pixels or 640 x 480 and tablet device for pixels of resolution. the limitations on the Or, is the size of image data size that image data that can...
  • Page 68 9.   Other 9.17   Troubleshooting Image is whitish ・Is the [Brightness] ・Press the brightness User manual set to brighten? [Normal] button. Move the [Adaptive black stretch] slider bar in the [-] direction to darken the dark area of the image.
  • Page 69 9.   Other 9.17   Troubleshooting ・Is [<SD> Recognition ・Format the SD error] displayed in the Memory Card. [Maintenance]-[Statu s]-[SD memory card] log? ・Is the SD memory ・The SD Memory card malfunctioning? Card has a limited number of rewrites. Replace the SD Memory Card with a new one if it is rewritten frequently...
  • Page 70 9.   Other 9.17   Troubleshooting Image not refreshed or ・The port of this unit ・Change the HTTP displayed successfully may have been port number of this filtered by the firewall unit to a port number function of virus that is not filtered. check software.
  • Page 71: Precautions Pertaining To Usage

    9.   Other 9.18   Precautions pertaining to usage (PTZ part) ・This is improved by ・Decrease the camera Camera operation adjusting the camera speed. noise is too loud. operation speed. 9.18 Precautions pertaining to usage ・ Do not subject dome cover to strong impact. Doing so may cause damage or immersion.
  • Page 72 9.   Other 9.18   Precautions pertaining to usage see. - When there are raindrops on the front paneldue to wind during rainfall. - When there is snow on the front panel due towind during snowfall. (varies depending onthe amount and quality of snowfall). - When the front panel is dirty due to dust inthe air or vehicle exhaust.
  • Page 73: Disclaimer

    ・ About HEVC High Efficiency Video Codingpatents Covered by one or more claims of the HEVCpatents listed at patentlist.accessadvance.com. 9.19 Disclaimer   IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPTFOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT,...
  • Page 74 9.   Other 9.19   Disclaimer FOR THE CASES,INCLUDING BUT NOT LIMITED TO BELOW:The purpose of this product is to obtain images for monitoring specific areas. This product alone is not intended to prevent crimes. (1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT,SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THEPRODUCT (2) ANY INCONVENIENCE, LOSS, OR DAMAGE CAUSED BY INAPPROPRIATE USE...
  • Page 75: Network Security

    9.   Other 9.20   Network security 9.20 Network security As you will use this unit connected to a network, your attention is called to the following security risks. ① Leakage or theft of information through this unit ② Use of this unit for illegal operations by persons with malicious intent ③...
