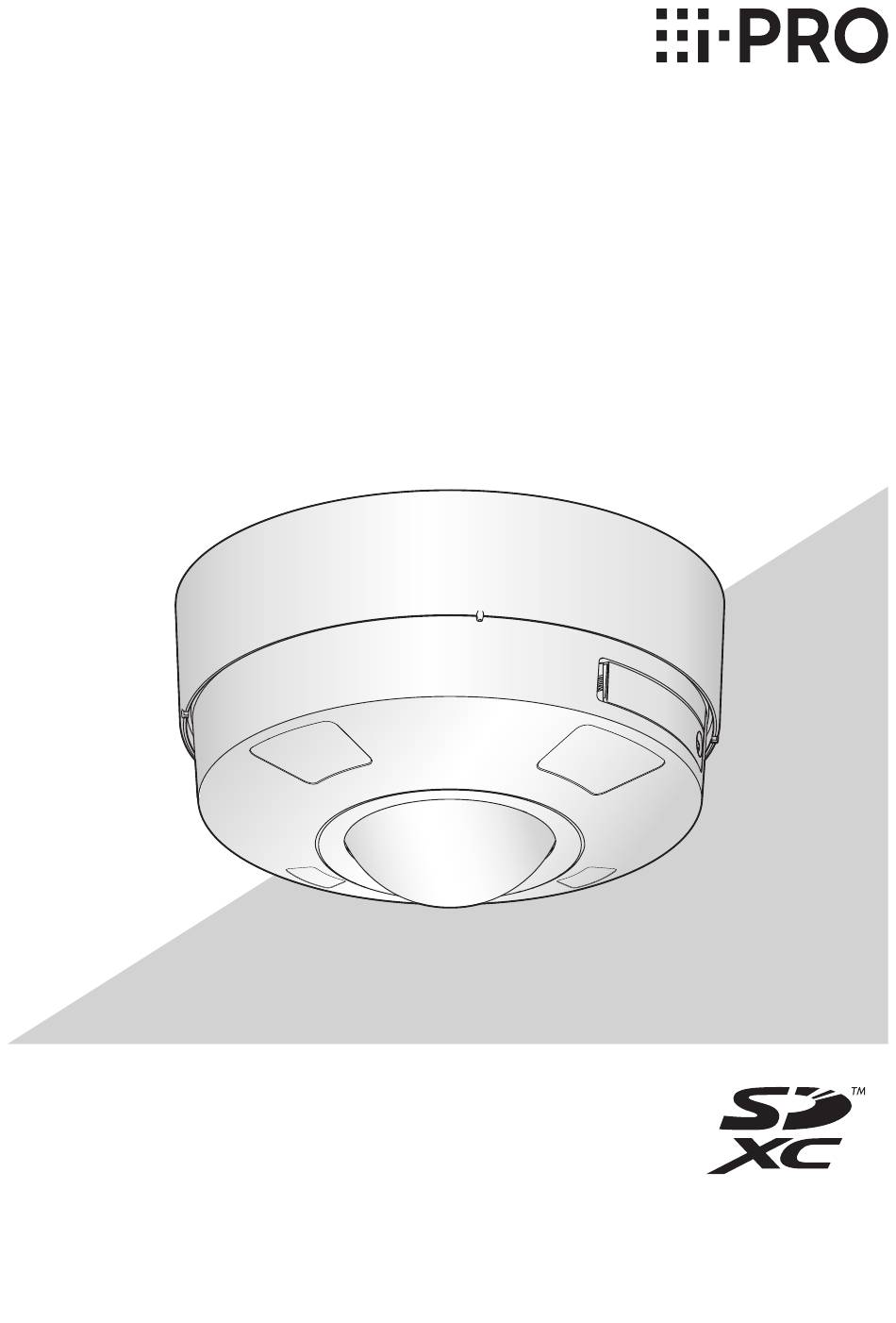

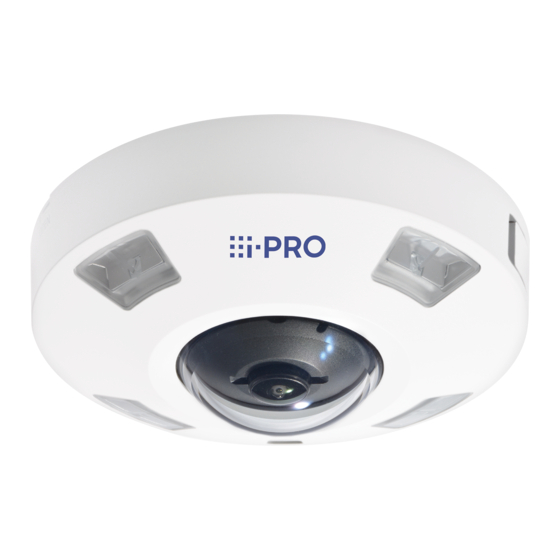

WV-X4571L / WV-X4571LM
Model No.
WV-S4550L / WV-S4550LM
* For information about the installation tasks, refer to the provided Installation
Guide. For information about how to perform the settings and how to
operate the camera, refer to the Operating Instructions on the provided
CD-ROM.
* WV-S4550LPJ is the same model as the Network Camera WV-S4550L.
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Important Information
WV-S4550L
Before attempting to connect or operate this product,
Network Camera
WV-S4550LPJ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WV-X4571L and is the answer not in the manual?

Questions and answers

Related Manuals for i-PRO WV-X4571L

Summary of Contents for i-PRO WV-X4571L

  • Page 1 Important Information Network Camera WV-X4571L / WV-X4571LM Model No. WV-S4550L / WV-S4550LM WV-S4550LPJ WV-S4550L * For information about the installation tasks, refer to the provided Installation Guide. For information about how to perform the settings and how to operate the camera, refer to the Operating Instructions on the provided CD-ROM.

  • Page 2: Table Of Contents

    Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 Preface ............................4 About notations ..........................4 Main functions ..........................4 About the user manuals ........................ 6 System requirements for a PC ...................... 6 Trademarks and registered trademarks..................7 Copyright ............................

  • Page 3: Limitation Of Liability

    IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:...

  • Page 4: Preface

    The following notations are used when describing the functions limited for specified models. The functions without the notations are supported by all models. X4571L The functions with this notation are available when using the model WV-X4571L. The functions with this notation are available when using the model WV-X4571LM. X4571LM S4550L The functions with this notation are available when using the model WV-S4550L.
  • Page 5 *2 For further information about Extension Software refer to our website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information). *3 IP66: The applicable product has “Dust tight (6)” protection against foreign solids and has “Powerful water jets (6)” protection against water (IEC60529).

  • Page 6: About The User Manuals

    About the user manuals Product documentation is composed of the following documents. • Important Information (this document): Provides basic information about the product. • Installation Guide: Explains installation, mounting, cable connections, and adjusting the field of view. • Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera.

  • Page 7: Trademarks And Registered Trademarks

    • When using Microsoft Windows 8.1, use it in the desktop. The software cannot be used in the Modern UI design. • When using the 4K monitor, it may be necessary to install an additional video card on the PC in use. For further information, refer to our website (https://i-pro.com/global/en/surveillance/train- ing_support/support/technical_information). Note: •...

  • Page 8: Open Source Software

    Open Source Software • This product contains open source software licensed under GPL (GNU General Public License), LGPL (GNU Lesser General Public License), etc. • Customers can duplicate, distribute and modify the source code of the software under license of GPL and/or LGPL. •...

  • Page 9: Precautions

    Precautions Do not insert any foreign objects. Do not attempt to disassemble or modify Fire or electrical shock may be caused if water this product. or any foreign objects, such as metal objects, Failure to observe this may cause fire or electric enter inside the unit.
  • Page 10 The screws and bolts must be tightened to [Precautions for use] the specified torque. When the product is accessible from the Failure to observe this may cause a drop Internet resulting in injury or accidents. To prevent unauthorized access, note the fol- lowing.
  • Page 11 About the automatic status detection What to do if “WARMING UP-PLEASE function WAIT” appears on the display. When this product malfunctions due to exoge- This message indicates that the temperature nous noise, etc. for 30 seconds or more, the inside the camera has become extremely low. product will automatically reset and will return The camera will be automatically restarted to normal state.
  • Page 12 AVC Patent Portfolio License THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A...

  • Page 13: Precautions For Installation

    Precautions for installation i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documentation. For information about the installation tasks, refer to the provided Installation Guide.
  • Page 14 Installing in low temperature environments When noise disturbance may happen This product may not function properly if it is Conduct the power distribution work to keep a installed and operated in an environment where distance of 1 m {3.28 feet} or more from the the temperature is –20 °C {–4 °F} or lower.

  • Page 15: Parts And Functions

    IMPORTANT: ⿟ Use all 4 pairs (8 pins) of the Ethernet cable.(only for WV-X4571L and WV-S4550L) ⿟ The maximum cable length is 100 m {328 feet}. ⿟ Make sure that the PoE device in use is compliant with IEEE802.3af standard.
  • Page 16 12 V DC power supply terminal / 2P power cable (accessory) Caution: ⿟ A READILY ACCESSIBLE DISCONNECT DEVICE SHALL BE INCORPORATED TO THE EQUIPMENT POWERED BY 12 V DC POWER SUPPLY. ⿟ ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED POWER SOURCE (IEC/EN/UL/CSA 60950-1).
  • Page 17 Audio input cable (white) Connect a microphone or the line out of an external device using a stereo mini plug (ø3.5 mm). <For microphone input> ⿟ Recommended microphone: Plug-in power type (locally procured) (Sensitivity of microphone: –48 dB ±3 dB (0 dB=1 V/Pa,1 kHz)) ⿟...
  • Page 18 When connecting to a network using a PoE hub Before starting the installation, check the entire system configuration. The following illustration gives a wiring example of how to connect the camera to the network via a PoE device (hub). Powered speaker Adjustment monitor PoE device (hub) Ethernet cable...
  • Page 19 ■Indicators and buttons * This illustration represents WV-S4550L INITIAL SET button <Inside view of the SD memory card slot cover (Initializing button) (with SD memory card slot cover opened)> SD slot cover SD memory card slot SD ON/OFF button ACT indicator SD MOUNT indicator LINK indicator DSD ERROR/ABF indicator...
  • Page 20 ACT indicator ⿟ When data is being sent via the network camera Blinks green (accessing) LINK indicator ⿟ When the camera is able to communicate with Lights orange the connected device SD ERROR/ABF indicator SD ERROR indicator S4550L X4571L S4550LM X4571LM ⿟...

  • Page 21: Insert/Remove An Sd Memory Card

    Insert / remove an SD memory card Note: ⿟ Refer to the Operating Instructions on the provided CD-ROM for further information about the SD memory card settings. ■ Insert an SD memory card 【１】 Open the SD slot cover on the side of the camera, insert an SD memory card fully into the SD memory card slot until a click is heard.
  • Page 22 ■ Remove an SD memory card When removing an SD memory card, reverse the procedure. ⿟To remove the SD memory card, hold down the SD ON/OFF button for about 2 seconds. When the flashing SD MOUNT indicator goes out, you can remove the SD memory card. IMPORTANT: ⿟...

  • Page 23: Troubleshooting

    Or install the software to format the SD memory card lights red on the PC. Refer to our website S4550L S4550LM (https://i-pro.com/global/en/surveillance/training_sup- port/support/technical_information) for further infor- mation about the supported software. • Isn't the inserted SD memory card faulty? Replace the card with a normal one.
  • Page 24 Reference Symptom Cause/solution pages • Check the following. • Grounding of the camera, a switching hub or peripheral devices are not done. • The camera is used near an electrical power line. • The camera is used near a device which produces Audio input contains strong magnetic field or radio waves (such as near noise.

  • Page 25: Specifications

    Specifications Basic • Power source * DC 12 V PoE (IEEE802.3af compliant) X4571L S4550L PoE (IEEE802.3af compliant) (Alternative A) X4571LM S4550LM Power consumption * X4571L X4571LM DC 12 V : 1.04 A/Approx. 12.5 W PoE DC 48 V : 260 mA/Approx. 12.5 W (Class 0 device) S4550L S4550LM DC 12 V...
  • Page 26 ECE-R10 (E approval) X4571LM S4550LM *1 Refer to our website (https://i-pro.com/global/en/surveillance/training_support/support/technical_ information) for further information about Power source and Power consumption information. *2 In the environment where IR-LED is always turned on, make sure that the temperature is between –40° C and +50 °C {–40 °F to +122 °F}.
  • Page 27 Minimum illumination: S4550L S4550LM BW :0 lx {0 footcandle} (F2.4, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)) 0.04 lx {0.0372 footcandle} (F2.4, Maximum shutter: Off (1/30 s), AGC: 11) 0.0025 lx {0.00023 footcandle} (F2.4, Maximum shutter: max. 16/30 s, AGC: 11)* * Converted value Intelligent auto On/ Off...
  • Page 28 Focal length: 1.4 mm {1/16 inches} X4571L X4571LM 0.84 mm {1/32 inches} S4550L S4550LM Maximum aperture ratio: 1:1.9 X4571L 1:2.4 S4550L X4571LM S4550LM Focus range: 0.5 m {19-11/16 inches} – ∞ X4571L X4571LM 0.3 m {11-13/16 inches} – ∞ S4550L S4550LM Aperture range: F1.9 (Fixed)
  • Page 29 Resolution* <Ceiling> H.265/ H.264 S4550L S4550LM JPEG (MJPEG) Double Panorama mode (max. 30 fps) 1920×1080, 1280×720, 640×360, 320×180 Fisheye + Double Panorama mode (max. 30 fps) (Fisheye) 2192×2192, 1280×1280, 640×640, 320×320 (Double Panorama) 1280×720, 640×360, 320×180 Fisheye + Quad PTZ mode (max. 30 fps) (Fisheye) 2192×2192, 1280×1280, 640×640, 320×320 (Quad PTZ) 1280×960, 800×600, VGA, QVGA Quad streams mode...
  • Page 30 JPEG (MJPEG) Image quality: 0 SUPER FINE/ 1 FINE/ 2/ 3/ 4/ 5 NORMAL/ 6/ 7/ 8/ 9 LOW (10 steps: 0-9) Transmission type: Pull/ Push Refresh interval: 0.1fps/ 0.2fps/ 0.33fps/ 0.5fps/ 1fps/ 2fps/ 3fps/ 5fps/ 6fps/ 10fps/ 12fps/ 15fps/ 30fps S4550L S4550LM...

  • Page 31: Optional Accessories

    It is recommended to use an SDXC/SDHC/SD memory card for memory card* i-PRO devices. (SD speed class 4 or higher) SDXC memory card : 64 GB, 128 GB, 256 GB SDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB...
  • Page 32 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB i-PRO Co., Ltd. Amsterdam, Netherlands Fukuoka, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 N1117-8042 PGQP2523RA...
