Russell Hobbs INFINITY RHFP66 Instructions And Warranty

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTIONS AND WARRANTY
MODEL NO. RHFP66

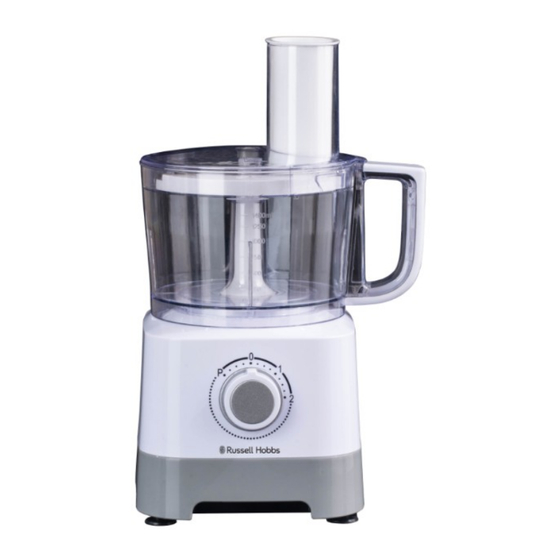

RUSSELL HOBBS INFINITY FOOD PROCESSOR

Advertisement

loading
Need help?

Need help?

Do you have a question about the INFINITY RHFP66 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Russell Hobbs INFINITY RHFP66

Summary of Contents for Russell Hobbs INFINITY RHFP66

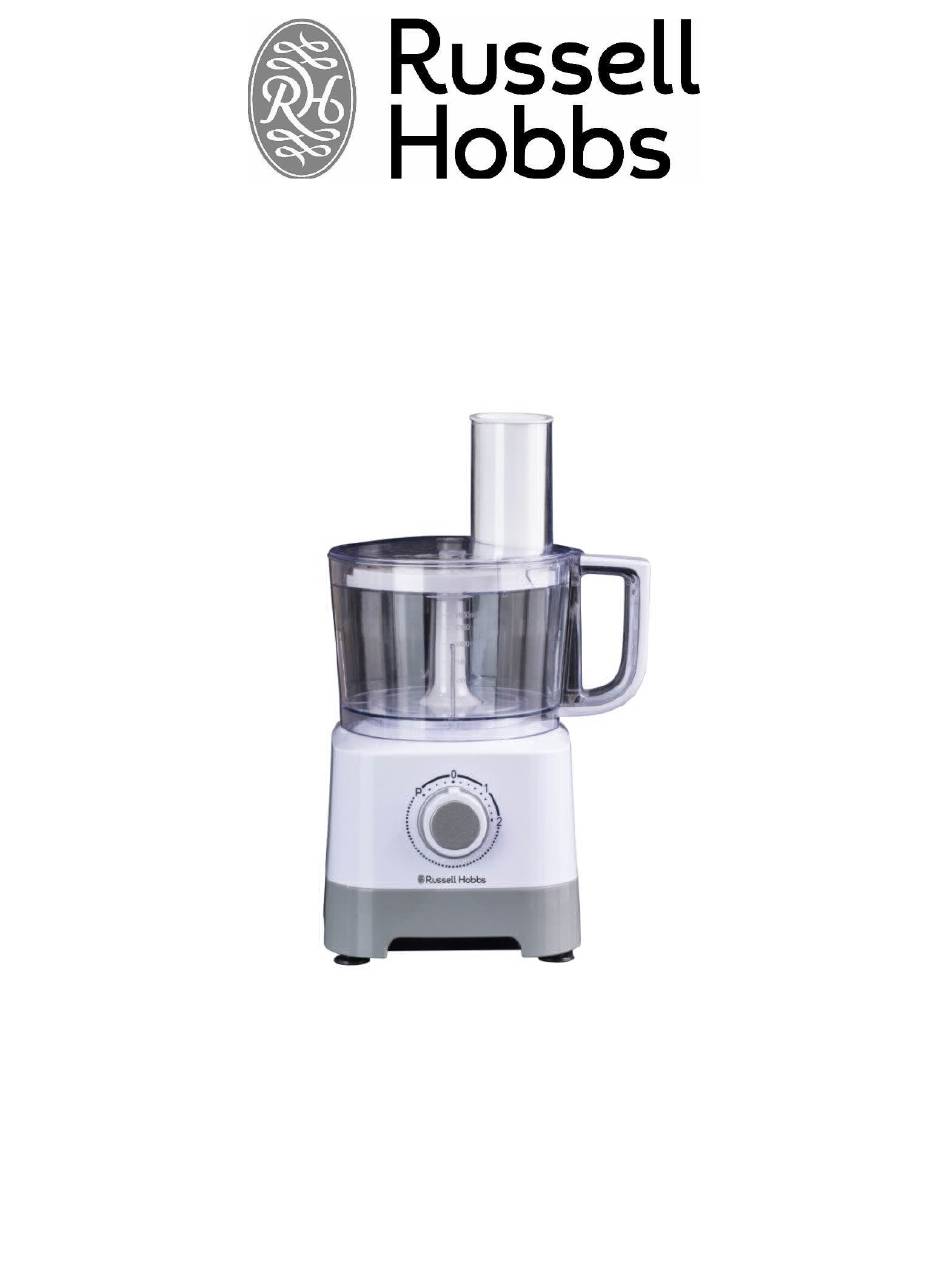

  • Page 1 INSTRUCTIONS AND WARRANTY MODEL NO. RHFP66 RUSSELL HOBBS INFINITY FOOD PROCESSOR...

  • Page 2: Important Safeguards

    Congratulations on purchasing our Russell Hobbs Infinity Food Processor. Each unit has been manufactured to ensure safety, reliability and ease of use. Before use, please read the instructions carefully and keep it for future reference. Should you pass the unit on, please ensure that you also pass the instruction manual on.
  • Page 3 4. This food processor is intended for household use only. Commercial use invalidates the warranty and the supplier can not be held responsible for injury or damage caused when using the appliance for any other purpose than that intended. 5. Avoid any contact with moving parts. 6.
  • Page 4 20. This food processor incorporates a protective device against high temperatures. If the temperature becomes too high and the above step has not been actioned, the unit will turn off automatically and will resume operation when the motor has cooled sufficiently (after about 15 minutes). 21.
  • Page 5 35. In case of technical problems, switch off the machine and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above-mentioned pre-cautions and instructions, could affect the safe operation of this machine.

  • Page 6: Parts Diagram

    PARTS DIAGRAM 1. Motor Base 2. Removable drive attachment 3. Processing Bowl 4. Blade Adapter 5. Bowl Cover 6. Safety Pusher 7. Disc Holder 8. Slicing Disc 9. Shredder Disc 10. French Fry Disc 11. Citrus Juicer Plate 12. Citrus Juicer Head 13.

  • Page 7: Before First Use

    BEFORE FIRST USE Before using your appliance for the first time, remove the appliance from the box and take off any protective wrappings. REMEMBER: DO NOT LEAVE PROTECTIVE PACKAGING LYING AROUND, AS IT COULD BE DANGEROUS AROUND INFANTS. OPERATING INSTRUCTIONS Locking the bowl Align the base and bowl as illustrated above.
  • Page 8 The control dial is conveniently located on the front of the base. Rotate the dial clockwise to increase the speed (2 speeds). For more precise start/stop control, turn the dial anti-clockwise to the (P) PULSE setting. To turn off the machine, rotate the dial to the OFF (0) position.
  • Page 9 Processing using the dough tool Blade adapter Dough tool Removable drive attachment 1. Make sure the control dial is turned to OFF (O) and the unit is unplugged. 2. Place the removable drive attachment onto the motor base. 3. Lock the food processor bowl onto the motor base (see “Locking the bowl”). 4.
  • Page 10 4. Place the blade adapter onto the removable drive attachment, put the slicing/shredding/chip slicing disc on the blade adapter attachment with the desired side facing up for either slicing or shredding. Lock lid onto bowl (See “Assembling the lid”). 5. Plug in the appliance and switch it on to start processing the food. 6.
  • Page 11 Processing using the citrus juicer Citrus Juicer Head Citrus Juicer Plate Removable drive attachment 1. Make sure the control dial is turned to the OFF (O) position and the unit is unplugged. 2. Attach the removable drive attachment to the motor base. 3.

  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE POTENTIAL PROBABLE CAUSE/SOLUTION PROBLEM Is the unit plugged in? Does the power outlet work?  Unit does not function at all. Is the bowl and bowl lid all locked in place? These have safety  mechanisms in place and if not attached correctly will not operate. See “Operating instructions”...

  • Page 13: Storing The Appliance

    1. Wash the bowl, lid, blades, discs, blade adapter, removable drive attachment and safety pusher in warm, soapy water. 2. Rinse and dry thoroughly. NOTE: Do not store the unit with lid in locked position; this may put strain on the interlock tab. 3.

  • Page 14: Changing The Plug

    A reason is provided for why it is being returned.  If the supply cord is damaged, it must be replaced by the manufacturer or an authorised service agent, in order to avoid any hazard. If service becomes necessary within the warranty period, the appliance should be returned to an approved Home of Living Brands (Pty) Ltd service centre.
  • Page 15 PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. 2 YEAR WARRANTY 1 year retail ⵏ 1 year extended warranty upon registration* visit www.russellhobbs.co.za W A R R A N T Y AND EXTENDED WARRANTY Home of Living Brands (Pty) Limited ("Home of Living Brands") warrants to the original purchaser of this product ("the customer") that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of 1 (one) year from...
  • Page 16 EXCLUSIONS TO W A R R A N T Y AND EXTENDED WARRANTY Any accessories supplied with the product, including but not limited to, bowls, jugs, mills or carafes made either of glass or plastic and supplied with this appliance (hereinafter referred to as “the accessory or accessories”), is warranted to be free from material and workmanship defects for the duration of the appliance warranty.
