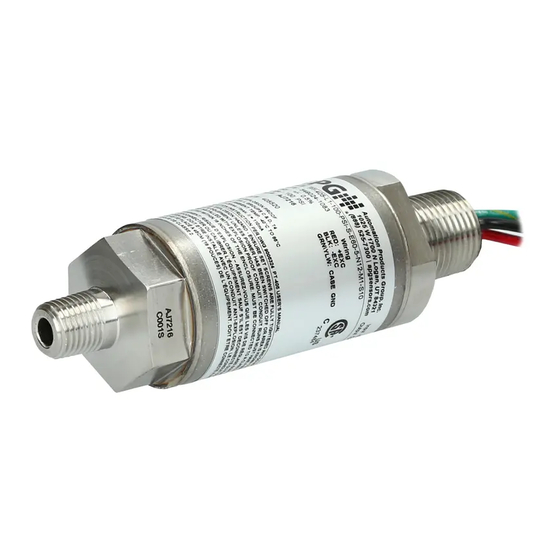

APG PT-405 User Manual
Explosion proof, heavy duty pressure transmitter
Hide thumbs
Also See for PT-405:
- Installation manual (2 pages) ,
- Installation manual (2 pages) ,
- Programming manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for APG PT-405
Summary of Contents for APG PT-405
- Page 1 PT-405 User Manual Explosion Proof, Heavy Duty Pressure Transmitter Doc #9005294 Part #200160 Rev D, 04/2024...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................ iii Warranty Statement ....................iv Chapter 1: Specifications and Options..............1 Dimensions ............................1 Specifications ........................... 2 Model Number Configurator ......................3 Electrical Connectors and Pinout Table ..................4 Chapter 2: Installation and Removal Procedures and Notes ......5 Tools Needed ............................. -
Page 3: Introduction
Introduction Thank you for purchasing a Series PT-405 Explosion Proof Heavy Duty Pressure Transmitter from APG. We appreciate your business! Please take a few minutes to familiarize yourself with your PT-405 and this manual. Series PT-405 pressure transmitters offer reliability over a wide range of pressures and in harsh industrial conditions and hazardous locations. -
Page 4: Warranty Statement
Warranty Statement This product is covered by APG’s warranty to be free from defects in material and workmanship under normal use and service of the product for 24 months. For a full explanation of our Warranty, please visit https://www.apgsensors.com/about-us/terms-conditions. Contact Technical Support to receive a Return Material Authorization before shipping your product back. -
Page 5: Chapter 1: Specifications And Options
[15.45mm] [18.1mm] PT-405 Short Can (E60 option) PT-405 Long Can (E60L option) with female NPT Process Connection with female NPT Process connection Total length of PT-405 is dependant on Process Connection Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com... -
Page 6: Specifications
• Specifications Performance Pressure Ranges 0 to 30K psi Analog Output 4-20mA, 0-5VDC, 0.5-4.5 VDC, 1-5 VDC, 0-10VDC Digital Output RS-485/Modbus Over Pressure 1.5X Full Scale or limit of fitting, whichever is less Burst Pressure 3.0X Full Scale or limit of fitting, whichever is less Accuracy Linearity, Hysteresis &... -
Page 7: Model Number Configurator
• Model Number Configurator Model Number: PT-405 - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ A. Operation / Output F. Electrical Cable Length* □ L1 ▲ 4 - 20 mA output □... -
Page 8: Electrical Connectors And Pinout Table
Case Ground Case Case Ground Ground Ground N/C indicates no connection For alternate pinouts, please consult factory PT-405 Series Supply Power Table 4-20 mA 0-5 / 0.5-4.5 / 1-5 VDC 0-10 VDC RS-485 Power Supply 9-28 VDC 9-28 VDC 12.5-28 VDC 9-28 VDC ... -
Page 9: Chapter 2: Installation And Removal Procedures And Notes
• Thread tape or sealant compound for threaded connections. • Physical Installation Notes The PT-405 should be installed in an area--indoors or outdoors--which meets the following conditions: • Ambient temperature between -40°C and 85°C (-40°F to +185°F) • Relative humidity up to 100% •... -
Page 10: Electrical Installation
• Removal Instructions Removing your PT-405 from service must be done with care. It’s easy to create an unsafe situation, or damage your sensor, if you are not careful to follow these guidelines: •... -
Page 11: Chapter 3: Maintenance
Chapter 3: Maintenance • General Care Your PT-405 series pressure transmitter is very low maintenance and will need little care as long as it is installed correctly. However, in general, you should: • Keep the transmitter and the area around it generally clean. -
Page 12: Re-Calibration
This procedure requires a known pressure source of at least ±0.1% accuracy in order to fully utilize the accuracy potential of the PT-405. (If not available, you can return it to the factory for re-calibration.) • Remove unit from Hazardous Location prior to recalibration. - Page 13 Automation Products Group, Inc. Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
