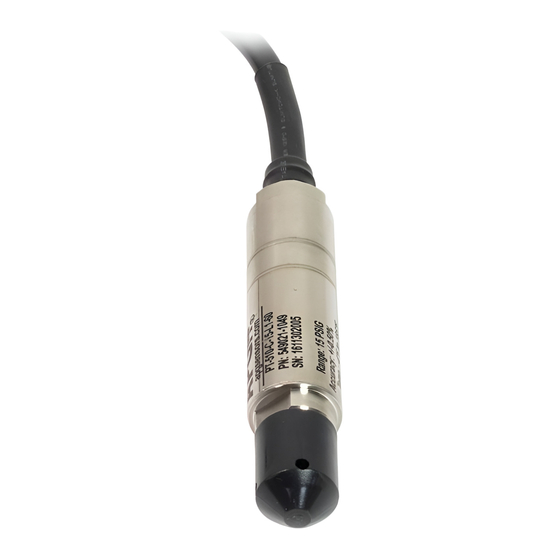

- Page 1 PT-510 and PT-510W Series User Manual 4-20 mA Doc #9005031 Rev A, 02/2017...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................ iii Warranty and Warranty Restrictions ..............iv Chapter 1: Specifications and Options..............1 Dimensions ............................1 Specifications ........................... 2 Model Number Configurator ...................... 3-4 Electrical Pinout Table and Supply Power Table ..............5 Chapter 2: Installation and Removal Procedures and Notes ......5 Tools Needed ............................. -
Page 3: Introduction
Reading your label Every APG instrument comes with a label that includes the instrument’s model number, part number, serial number, and a wiring pinout table. Please ensure that the part number and pinout table on your label match your order. -
Page 4: Warranty And Warranty Restrictions
Warranty and Warranty Restrictions This product is covered by APG’s waranty to be free from defects in material and workmanship under normal use and service of the product for 24 months. For a full explanation of our Warranty, please visit https://www.apgsensors.com/about-us/terms-conditions. -
Page 5: Chapter 1: Specifications And Options
Chapter 1: Specifications and Options • Dimensions ø 3.5" ø 0.9" [88.9mm] [21.9mm] ø 0.9" [21.9mm] 3.1" 3.7" [79.0mm] [94.2mm] 4.7" [119.8mm] 4.8" [121.4mm] 0.4" [9.4mm] ø 0.1" [2.6mm] 1.0" 1.7" 1.0" [25.7mm] [42.4mm] [25.4mm] ø 0.7" 0.3" ø 3.6" [18.8mm] [7.6mm] [91.4mm]... -
Page 6: Specifications
• Specifications Performance Pressure Ranges 0 to 20 PSIG Analog Output 4-20mA Over Pressure 2X FS Burst Pressure 3X FS Accuracy Overall ±0.5% of Full Scale (BFSL) Linearity ±0.25% of Full Scale (BFSL) Hysteresis ±0.15% of Full Scale Repeatability ±0.20% of Full Scale Span ±1% of Full Scale Zero... -
Page 7: Model Number Configurator
• Model Number Configurators Part Number: PT-510 - _____ - _____ - _____ - _____ A. Cable Type □ B Hytrel 0.31” Ø - Black (with vent tube) □ C ▲ PVC - Black (with vent tube □ E Polyurethane - Black (with vent tube) B. - Page 8 Part Number: PT-510W - _____ - _____ - _____ - _____ A. Cable Type □ B Hytrel 0.31” Ø - Black (with vent tube) □ C ▲ PVC - Black (with vent tube □ E Polyurethane - Black (with vent tube) B.
-
Page 9: Electrical Pinout Table And Supply Power Table
NOTE: If your PT-510 has a vent tube, do not seal, cover, or close the vent tube with anything other than an APG-provided venting cap or desiccant drying cartridge (See Fig- ure 3.1 and 3.2). Unapproved seals or covers will prevent proper sensor operation. -
Page 10: Removal Instructions
• Removal Instructions Removing your PT-510/PT-510W from service must be done with care. It’s easy to damage your sensor if you are not careful to follow these guidelines: • Retrieve the sensor from the vessel. Follow any and all procedures for safely isolating any media con- tained inside the line or vessel. -
Page 11: Vent Tube Drying
• Vent Tube Drying Condensation in the vent tube can damage the electronics in your sensor, resulting in unreliable readings. APG offers two methods of preventing vent tube condensation: a venting cap, and a desiccant drying cartridge. The venting cap is a PVC tube with a hydrophobic patch that allows moisture to pass out of the tube without allowing water in (See Figure 3.1). -
Page 12: Repair And Returns
• Repair and Returns Should your PT-510 series pressure transmitter require service, please contact the factory via phone, email, or online chat. We will issue you a Return Material Authorization (RMA) number with instructions. • Phone: 888-525-7300 • Email: sales@apgsensors.com •... - Page 13 Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
