APG PT-500E Series User Manual

Submersible level transmitters for potable water

Advertisement

Quick Links

PT-500E Series
Submersible Level Transmitters For Potable Water
User Manual
Doc # 9006878
Part # 201172
Rev A, 03/2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-500E Series and is the answer not in the manual?

Questions and answers

Summary of Contents for APG PT-500E Series

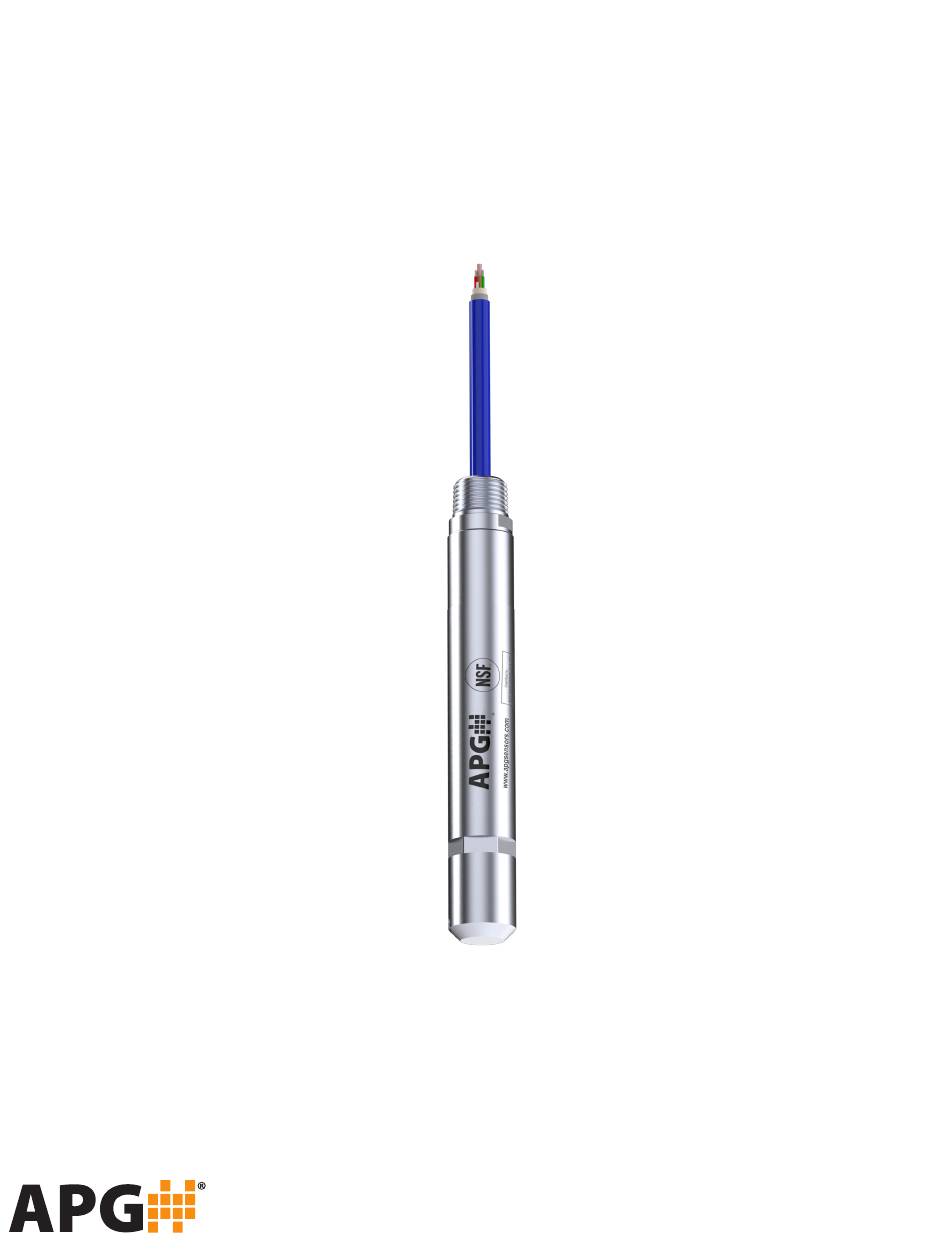

  • Page 1 PT-500E Series Submersible Level Transmitters For Potable Water User Manual Doc # 9006878 Part # 201172 Rev A, 03/2025...
  • Page 2: Table Of Contents

    Electrical Installation Removal Instructions CHAPTER 3: PROGRAMMING (MODBUS RTU OUTPUT ONLY) Modbus Programming Modbus Programming with RST–6001 and APG Modbus Software PT–500E Modbus Register Lists PT–500E Modbus Sensor Parameters – L5 pressure series PT–500E Modbus Sensor Parameters – L31 level series PT–500E Modbus Application Parameters –...
  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing a PT–500E series submersible pressure transmitter from APG. We appreciate your business! Please take a few minutes to familiarize yourself with your PT–500E and this manual. The PT-500E is a rugged submersible pressure transmitter specially designed for potable water applications requiring NSF/ANSI/CAN 61 and NSF/ANSI/CAN 372 certifications and can be used in other tank liquid level measurement, water and wastewater applications, and well depth measurement.
  • Page 4: Warranty And Warranty Restrictions

    WARRANTY AND WARRANTY RESTRICTIONS This product is covered by APG’s warranty to be free from defects in material and workmanship under normal use and service of the product for 24 months. For a full explanation of our Warranty, please visit www.apgsensors.com/resources/warranty-certifications/warranty-returns/.
  • Page 5: Chapter 1: Dimensions And Wiring

    CHAPTER 1: DIMENSIONS AND WIRING Dimensions 0.99" [25.1mm] 0.89" [22.5mm] 1/2" NPTM 1.00" [25.4mm] 4.93" [125.2mm] 7.25" [184.2mm] 1/2" NPTM 1.44" Ø.188" THRU [36.6mm] PROTECTIVE NOSE CONE 1.00" [25.4mm] PT–500E with Removable Nose Cone Electrical Pinout Table, Supply Power Table, and System Wiring Diagrams PT–500E Series Pinout Table Modbus 4-20mA...
  • Page 6 Note: Either sensor case OR shield drain wire must be connected to low-impedance earth ground. RST-6001 Modbus Controller Equivalent 120 Ω USB to computer terminating resistor with APG Modbus internal to RST-6001 software PT-500E modbus PT-500E modbus PT-500E modbus series sensor series sensor...
  • Page 7: Chapter 2: Installation And Removal Procedures And Notes

    If your PT–500E has a vent tube, do not seal, cover, or close the vent tube with anything other than an APG–provided venting cap or desiccant drying cartridge (See Figure 4.1 and 4.2). Unapproved seals or covers will prevent proper sensor operation.
  • Page 8: Removal Instructions

    Removal Instructions Removing your PT–500E from service must be done with care. It’s easy to create an unsafe situation, or damage your sensor, if you are not careful to follow these guidelines: • For sensors installed via NPT process connection, make sure the pressure is completely removed from the line or vessel.
  • Page 9: Modbus Programming With Rst-6001 And Apg Modbus Software

    APG RST–6001 Modbus Controller can be used in tandem with APG Modbus to program and control up to 20 PT–500E L5 or PT–500E L31 sensors. Through APG Modbus, you can monitor the raw readings from the sensor, including level or pressure, temperature and battery voltage, or configure the sensor.
  • Page 10 Holding Registers (0x03) – PT–500E L5 pressure series Register Function Value Range 40400 Device Address 1 to 247 40401 Units 0-16 40402 Application Type 0 or 8 40403 40404 Decimal (Calculated) 0 – 3 40405 Max Pressure *0 – 32,000 PSI 40406 Full Pressure 0 –...
  • Page 11 Holding Registers (0x03) – PT–500E L31 level series Register Function Value Range 40400 Device Address 1 to 247 40401 Units 1 = Feet, 2 = Inches, 3 = Meters 40402 Application Type 0 – 11 40403 Volume Units 1 – 7 40404 Decimal (Calculated) 0 –...
  • Page 12: 500E Modbus Sensor Parameters - L5 Pressure Series

    PT–500E Modbus Sensor Parameters – L5 pressure series 40401 – Units Determines the units of measure for the calculated reading. 0 = PSI 5 = mmH2O 10 = mmHG 14 = inSW † ‡ 1 = BAR 6 = cmH2O 11 = cmHG 15 = ftSW †...
  • Page 13: 500E Modbus Application Parameters - L31 Level Series

    40403 – Volume Units Determines the units of measure for the calculated reading when Application Type is set to 2-6 or 9-11. 1 = Feet 5 = Liters 2 = Million Feet 6 = Inches 3 = Gallons 7 = Barrels 4 = Meters PT–500E Modbus Application Parameters –...
  • Page 14 Application 3 – Volume of Standing Cylindrical Tank ± Conical Bottom Diameter Register Function Value Range 40400 Device Address 1 to 247 40401 Units — 40402 Application Type 40403 Volume Units 1 – 7 40404 Decimal (Calculated) 0 – 3 40405 Max Level (factory set)
  • Page 15 Application 5 – Volume of Horizontal Cylindrical Tank ± Hemispherical Ends Register Function Value Range 40400 Device Address 1 to 247 40401 Units — 40402 Application Type 40403 Volume Units 1 – 7 40404 Decimal (Calculated) 0 – 3 40405 Max Level (factory set) 40406...
  • Page 16 Application 7 – Pounds (Linear Scaling) Register Function Value Range 40400 Device Address 1 to 247 40401 Units 1 = Feet, 2 = Inches, 3 = Meters 40402 Application Type 40403 Volume Units — 40404 Decimal (Calculated) 0 – 3 40405 Max Level (factory set)
  • Page 17 Application 10 – Volume of Horizontal Oval Tank Register Function Value Range 40400 Device Address 1 to 247 40401 Units — 40402 Application Type 40403 Volume Units 1 – 7 40404 Decimal (Calculated) 0 – 3 40405 Max Level (factory set) 40406 Full Level 0 –...
  • Page 18: Chapter 4: Maintenance

    CHAPTER 4: MAINTENANCE General Care Your PT–500E series pressure transmitter is very low maintenance and will need little care as long as it is installed correctly. However, in general, you should: • For process connected sensors, keep the transmitter and the area around it generally clean. •...
  • Page 19: Vent Tube Drying

    Vent Tube Drying Condensation in the vent tube can damage the electronics in your sensor, resulting in unreliable readings. APG offers two methods of preventing vent tube condensation: a venting cap, and a desiccant drying cartridge. The venting cap is a PVC tube with a hydrophobic patch that allows moisture to pass out of the tube without allowing water in (See Figure 4.1).
  • Page 20 Automation Products Group, Inc. Tel: 1 (888) 525-7300 or 1 (435) 753-7300 e-mail: sales@apgsensors.com www.apgsensors.com Automation Products Group, Inc. 1025 W. 1700 N. Logan, UT 84321...
