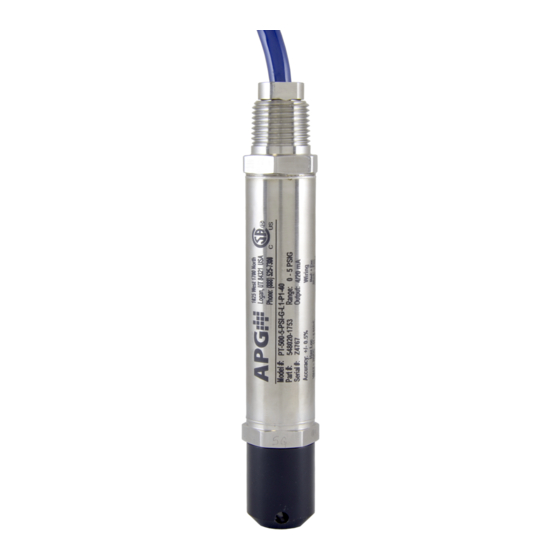

APG PT-500 Series User Manual

Analog output series 4-20 ma, 0-5 vdc, 0-10 vdc, mv/v
Hide thumbs Also See for PT-500 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
PT-500 Analog Output Series
User Manual
4-20 mA, 0-5 VDC, 0-10 VDC, mV/V
APG
Doc #9002823
Rev C6, 08/16
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for APG PT-500 Series

Summary of Contents for APG PT-500 Series

  • Page 1 PT-500 Analog Output Series User Manual 4-20 mA, 0-5 VDC, 0-10 VDC, mV/V Doc #9002823 Rev C6, 08/16...

  • Page 2: Table Of Contents

    Table of Contents Introduction ........................ iii Warranty and Warranty Restrictions ..............iv Chapter 1: Specifications and Options..............1 Dimensions ............................1 Specifications ........................... 2 Model Number Configurator ......................3 Electrical Pinout Table and Supply Power Table ..............4 Chapter 2: Installation and Removal Procedures and Notes ......4 Tools Needed .............................

  • Page 3: Introduction

    Reading your label Every APG instrument comes with a label that includes the instrument’s model number, part number, serial number, and a wiring pinout table. Please ensure that the part number and pinout table on your label match your order. The following electrical ratings and approvals are also listed on the label. Please refer to the Certificate of Compliance at the back of this manual for further details.

  • Page 4: Warranty And Warranty Restrictions

    Warranty and Warranty Restrictions This product is covered by APG’s waranty to be free from defects in material and workmanship under normal use and service of the product for 24 months. For a full explanation of our Warranty, please visit https://www.apgsensors.com/about-us/terms-conditions.

  • Page 5: Chapter 1: Specifications And Options

    Chapter 1: Specifications and Options • Dimensions 7.14" [181.3mm] 7.40” [187.9mm] NON-REMOVABLE REMOVABLE SENSOR CAGE SENSOR CAGE ASSEMBLY ASSEMBLY 2.00" [50.8] 2.24” [56.9mm] ø3.50" ø3.50” [88.9mm] [88.9mm] PT-500 with Reusable Cage PT-500 with Welded Anti-snag Cage 6.44" [163.5mm] 5.29" [134.4mm] PROTECTIVE ø.188 THRU CONE...

  • Page 6: Specifications

    • Specifications Performance Pressure Ranges 0 to 300 PSIG Analog Outputs 4-20mA, 0-5VDC, 0-10VDC, mV/V Over Pressure 2X FSO Burst Pressure 3.0X FSO 1 Year Stability 0.75% FSO Accuracy Linearity, Hystereses & Repeatability ±0.25% of Full Scale (BFSL) up to ±0.1% of Full Scale Thermal Zero Shift @ 70 °F ±0.045% FSO/°C (±0.025% FSO/°F)

  • Page 7: Model Number Configurator

    • Model Number Configurator Part Number: PT-500_____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ A. Cable Type E. NPTM □ - ▲ ▲ □ E0 Urethane - Blue (with vent tube) 1/2” NPTM fitting for conduit,with pigtail □...

  • Page 8: Electrical Pinout Table And Supply Power Table

    • Electrical Pinout Table and Supply Power Table PT-500 Analog Output Series Pin Out Table 4-20 mA Voltage + Power/Signal + Power Black - Power/Signal - Power Green + Out White - Out Shield Case Gnd Case Gnd PT-500 Analog Output Series Supply Power Table 4-20 mA 0-5 VDC 0-10 VDC...

  • Page 9: Removal Instructions

    Chapter 3: Maintenance • General Care Your PT-500 series pressure transmitter is very low maintenance and will need little care as long as it is installed correctly. However, in general, you should: • For process connected sensors, keep the transmitter and the area around it generally clean.

  • Page 10: Zero Adjust

    • Vent Tube Drying Condensation in the vent tube can damage the electronics in your sensor, resulting in unreliable readings. APG offers two methods of preventing vent tube condensation: a venting cap, and a desiccant drying cartridge. The venting cap is a PVC tube with a hydrophobic patch that allows moisture to pass out of the tube without allowing water in (See Figure 3.3).

  • Page 11: Repair And Returns

    • Repair and Returns Should your PT-500 series pressure transmitter require service, please contact the factory via phone, email, or online chat. We will issue you a Return Material Authorization (RMA) number with instructions. • Phone: 888-525-7300 •...

  • Page 12: Chapter 4: Hazardous Location Installation And Certification

    Chapter 4: Hazardous Location Installation and Certification • Intrinsically Safe Wiring Diagram Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...

  • Page 13: Non-Incendive Wiring Diagrams

    • Non-Incendive Wiring Diagram Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...

  • Page 14: Csa Certificate Of Compliance

    • CSA Certificate of Compliance Certificate of Compliance 1984045 237484 Certificate: Master Contract: 2587208 December 17, 2012 Project: Date Issued: Issued to: Automation Products Group Inc 1025 West 1700 North Logan, UT 84321 Attention: Karl Reid The products listed below are eligible to bear the CSA Mark shown with adjacent indicators 'C' and 'US' for Canada and US or with adjacent indicator 'US' for US only or without either indicator for Canada only.
  • Page 15 1984045 237484 Certificate: Master Contract: 2587208 December 17, 2012 Project: Date Issued: Ci = 0.055µF Li = 7.95µH • Model PT-400-L3/L10xxxx Pressure Transmitter. Rated 9-28VDC, 4-20mA or 0-5V, 20mA or 0-10V, 20mA; Maximum Ambient 85° C; Temperature Code T4; Maximum Working Pressure 10,000 PSI. Installed as per Drawing 9002794.
  • Page 16 1984045 237484 Certificate: Master Contract: 2587208 December 17, 2012 Project: Date Issued: CLASS 2258 84 - Process Control Equipment - Intrinsically Safe, Entity - For Hazardous Locations - Certified to US Standards Class I, Div. 1, Groups C, D Class I, Zone 0, Group IIB Ex ia IIB T4;...
  • Page 17 1984045 237484 Certificate: Master Contract: 2587208 December 17, 2012 Project: Date Issued: APPLICABLE REQUIREMENTS C22.2 No 0 - M1991 General Requirements - Canadian Electrical Code Part C22.2 No 0.4 - M2004 Bonding and Grounding of Electrical Equipment (Protective Grounding). C22.2 No 142 - M1987 Process Control Equipment.
  • Page 18 Automation Products Group, Inc. Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
