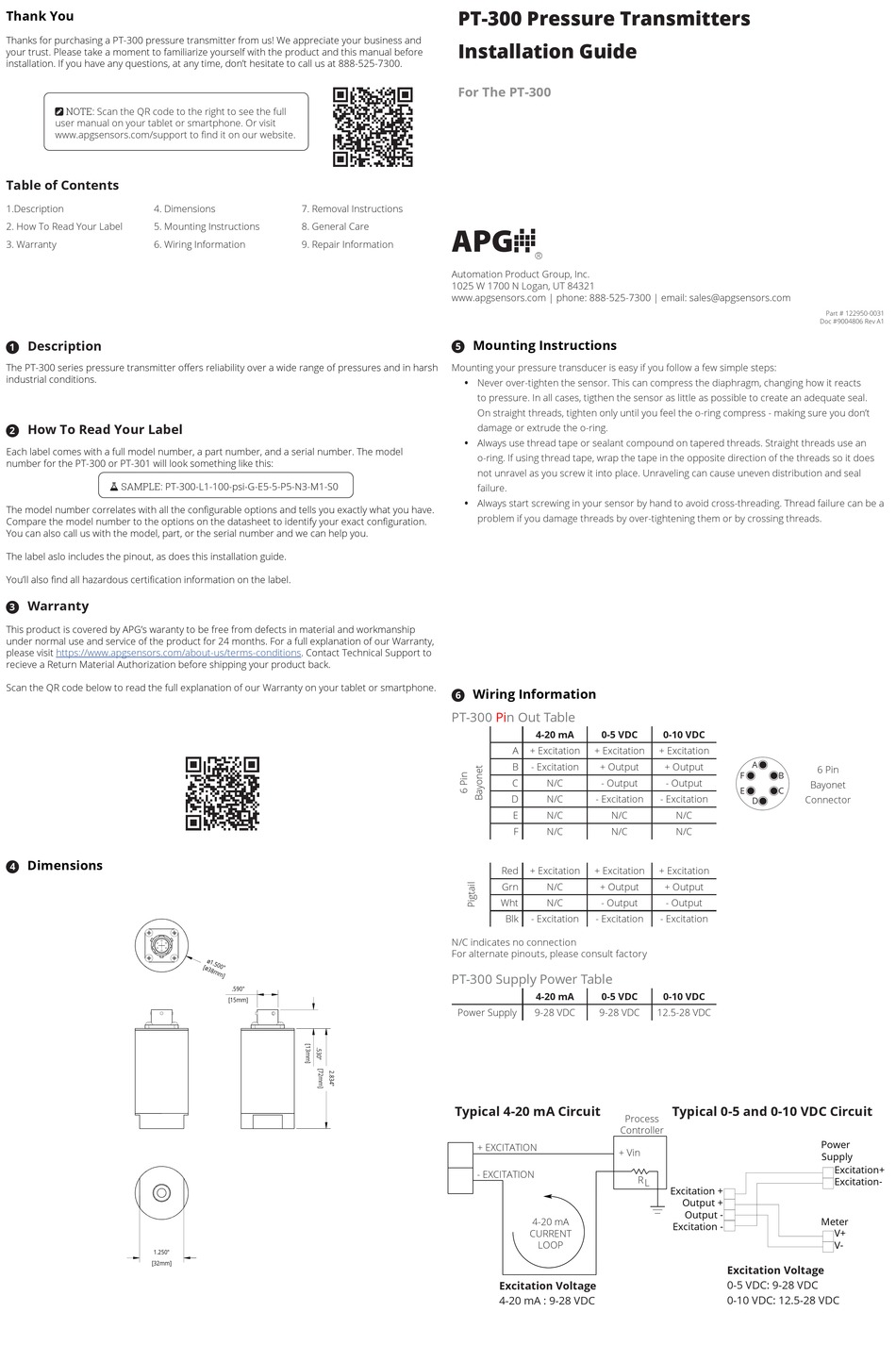

APG PT-300 Installation Manual

Thank You
Thanks for purchasing a PT-300 pressure transmitter from us! We appreciate your business and
your trust. Please take a moment to familiarize yourself with the product and this manual before
installation. If you have any questions, at any time, don't hesitate to call us at 888-525-7300.
 NOTE: Scan the QR code to the right to see the full
user manual on your tablet or smartphone. Or visit
www.apgsensors.com/support to find it on our website.
Table of Contents

1.Description

4. Dimensions

2. How To Read Your Label

5. Mounting Instructions

3. Warranty

6. Wiring Information

Description
1
The PT-300 series pressure transmitter offers reliability over a wide range of pressures and in harsh
industrial conditions.
How To Read Your Label
2
Each label comes with a full model number, a part number, and a serial number. The model
number for the PT-300 or PT-301 will look something like this:
 SAMPLE:
PT-300-L1-100-psi-G-E5-5-P5-N3-M1-S0
The model number correlates with all the configurable options and tells you exactly what you have.
Compare the model number to the options on the datasheet to identify your exact configuration.
You can also call us with the model, part, or the serial number and we can help you.
The label aslo includes the pinout, as does this installation guide.
You'll also find all hazardous certification information on the label.
Warranty
3
This product is covered by APG's waranty to be free from defects in material and workmanship
under normal use and service of the product for 24 months. For a full explanation of our Warranty,
please visit https://www.apgsensors.com/about-us/terms-conditions. Contact Technical Support to
recieve a Return Material Authorization before shipping your product back.
Scan the QR code below to read the full explanation of our Warranty on your tablet or smartphone.
Dimensions
4
1.250"
[32mm]
7. Removal Instructions
8. General Care
9. Repair Information
.590"
[15mm]
PT-300 Pressure Transmitters
Installation Guide
For The PT-300
APG
R
Automation Product Group, Inc.
1025 W 1700 N Logan, UT 84321
www.apgsensors.com | phone: 888-525-7300 | email: sales@apgsensors.com
Mounting Instructions
5
Mounting your pressure transducer is easy if you follow a few simple steps:
• Never over-tighten the sensor. This can compress the diaphragm, changing how it reacts
to pressure. In all cases, tigthen the sensor as little as possible to create an adequate seal.
On straight threads, tighten only until you feel the o-ring compress - making sure you don't
damage or extrude the o-ring.
• Always use thread tape or sealant compound on tapered threads. Straight threads use an
o-ring. If using thread tape, wrap the tape in the opposite direction of the threads so it does
not unravel as you screw it into place. Unraveling can cause uneven distribution and seal
failure.
• Always start screwing in your sensor by hand to avoid cross-threading. Thread failure can be a
problem if you damage threads by over-tightening them or by crossing threads.
Wiring Information
6
PT-300 Pin Out Table
4-20 mA 0-5 VDC
+ Excitation + Excitation
A
- Excitation
B + Output
C N/C - Output
- Excitation
D N/C
E N/C N/C
F N/C N/C
+ Excitation + Excitation
Red
Grn N/C + Output
Wht N/C - Output
- Excitation - Excitation
Blk
N/C indicates no connection
For alternate pinouts, please consult factory
PT-300 Supply Power Table
4-20 mA 0-5 VDC
Power Supply
9-28 VDC 9-28 VDC
Typical 4-20 mA Circuit
+ EXCITATION
+ Vin
- EXCITATION
4-20 mA
CURRENT
LOOP
Excitation Voltage
4-20 mA : 9-28 VDC
0-10 VDC
+ Excitation
A
+ Output
F B
- Output
E C
- Excitation
D
N/C
N/C
+ Excitation
+ Output
- Output
- Excitation
0-10 VDC
12.5-28 VDC
Typical 0-5 and 0-10 VDC Circuit
Process
Controller
R L
Excitation +
Output +
Output -
Excitation -
Excitation Voltage
0-5 VDC: 9-28 VDC
0-10 VDC: 12.5-28 VDC
Part # 122950-0031
Doc #9004806 Rev A1
6 Pin
Bayonet
Connector
Power
Supply
Excitation+
Excitation-
Meter
V+
V-
