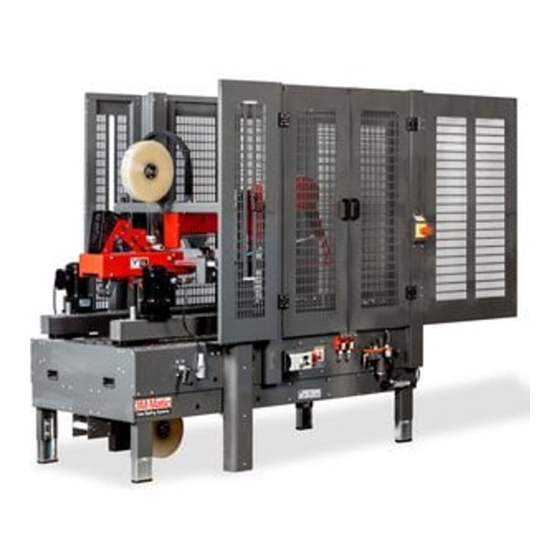

Adjustable case sealer with accuglide 3 taping heads
Hide thumbs Also See for Matic 8000af:
Table of Contents

Advertisement

Quick Links

Download this manual
Instructions and Parts List
3M-Matic
8000af-8000af3
Type 22100
Adjustable Case Sealer with
AccuGlide
Serial #:
Important Safety Information
BEFORE INSTALLING OR OPERATING THIS EQUIPMENT
Read, understand and follow all safety and operating instructions.
Spare Parts
It is recommended you immediately order the spare parts listed in the "Spare
Parts/Service Information" section. These parts are expected to wear through
normal use, and should be kept on hand to minimize production delays.
3M-Matic™ 8000af Type 22100
Page i
™
3 Taping Heads
™
For reference, record machine serial number here.
North American - ENG
March 2024
44-0009-2153-4
