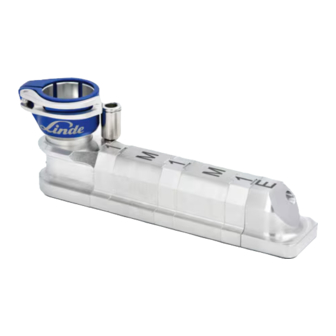

ARCLINE® MT Quick Start Guide
1
Pipe diameter 1
mm Inch Mother module + following parts
60.3 2" 9-E
76.1 2 1/2" 9-E
88.9 3" 8-E
101.6 3 1/2" 8-E
114.3 4" 7-E
139.7 5" 6-E
168.3 6" 6-E
193.7 7" 5-E
219.1 8" 5-E
273 10" 4-E
323.9 12" 4-E
355.6 14" 4-E
406.4 16" 3-E
457.2 18" 3-E
508 20" 3-E
609.6 24" 2-E
711 28" 2-E
813 32" 2-E
914 36" 2-E
1016 40" 2-E
1120 44" 2-E
1220 48" 2-E
1320 52" 2-E
1420 56" 2-E
1520 60" 2-E
1620 64" 2-E
1720 68" 2-E
1820 72" 1-E
2020 80" 1-E
flat flat 1-E
E – End module, M – Middle module, 1-9 – Wedges
4
Number of middle modules
0
1
2
3
4
Material Thickness (mm)
2-3 4
9-M-9-E 9-M-9-M-9-E
9-M-8-E 9-M-8-M-8-E
8-M-8-E 8-M-8-M-8-E
8-M-8-E 8-M-8-M-6-E
7-M-7-E 7-M-7-M-7-E
6-M-6-E 6-M-6-M-6-E
6-M-5-E 6-M-5-M-5-E
5-M-5-E 5-M-5-M-5-E
5-M-5-E 5-M-5-M-5-E
4-M-4-E 4-M-4-M-4-E
4-M-3-E 4-M-3-M-4-E
4-M-2-E 4-M-2-M-3-E
3-M-3-E 3-M-3-M-3-E
3-M-3-E 3-M-3-M-2-E
3-M-3-E 3-M-3-M-2-E
2-M-2-E 2-M-2-M-2-E
2-M-2-E 2-M-2-M-2-E
2-M-2-E 2-M-2-M-2-E
2-M-1-E 2-M-1-M-2-E
2-M-1-E 2-M-1-M-2-E
2-M-1-E 2-M-1-M-2-E
2-M-1-E 2-M-1-M-2-E
2-M-1-E 2-M-1-M-2-E
2-M-1-E 2-M-1-M-2-E
2-M-1-E 2-M-1-M-2-E
2-M-1-E 2-M-1-M-2-E
2-M-1-E 2-M-1-M-2-E
1-M-1-E 1-M-1-M-1-E
1-M-1-E 1-M-1-M-1-E
1-M-1-E 1-M-1-M-1-E
Gas flow (l/min)
I1 -Ar R1 - ArH-2
26 18
39 27
52 36
65 45
78 54
2

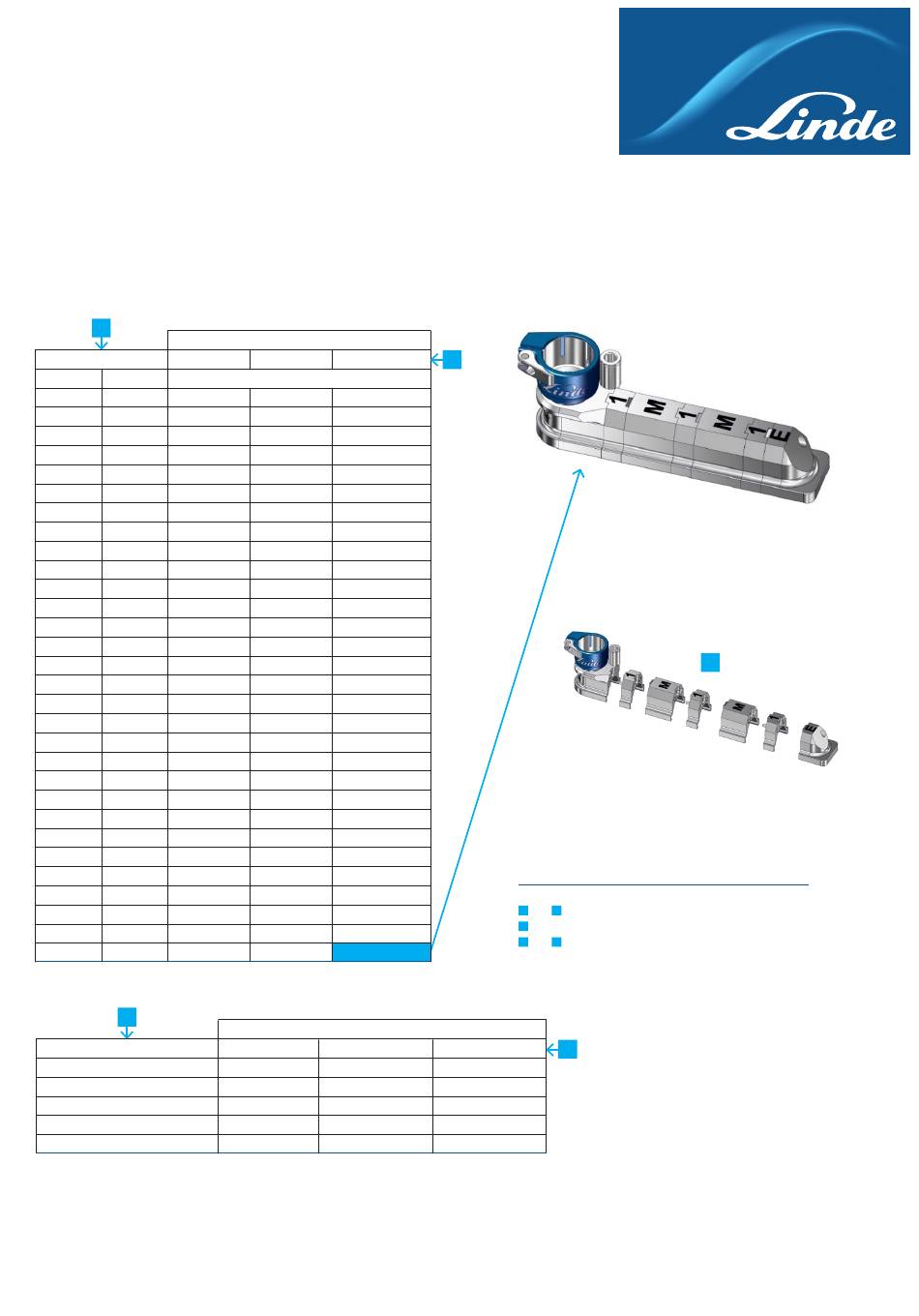

Example: flat plate, thickness 4 mm
Key
and - Check the required parts for your application
1 2
- Assemble your parts (details see back page)
3
and - Set the flow according to the length of your trail
4 5
(number of middle modules) and your gas composition
R1 - ArH-5
5
14
21
28
35
42
3
