Steps Linkable Power Installation Instructions
Reference Number: 6AJ5053
A
INSTRUCTIONS APPLY TO THE
FOLLOWING PATTERN NUMBERS
UPDB –
UPSB –
UPDL –
UPSL –
UPDR –
UPSR –
UPDUB –
UPSUB –
UPDUL –
UPSUL –
UPDUR –
UPSUR –
HARDWARE LIST
B
Steps linkable electrical module(s) (patterns: UPPM – )
1. Rotate step (A) on to its side.
(Fig. 1)

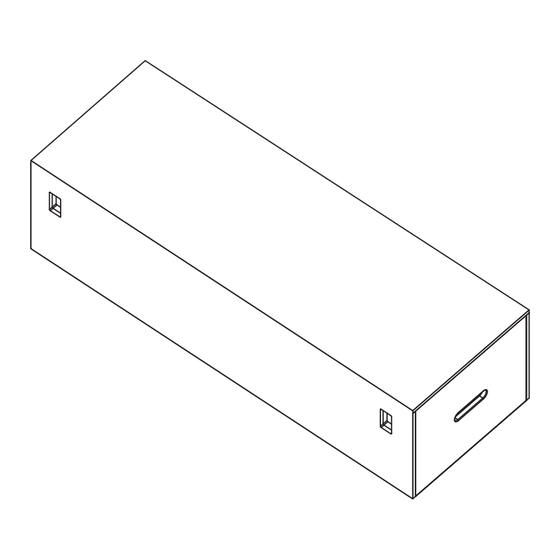

Shown:
Upholstered one step long,
with two cutouts for power,
patter number UPSUB602016
Shown:
Plywood one step long,
with two cutouts for power,
patter number UPSB602016
Rockwell Unscripted
®
March 14, 2018
Rockwell Unscripted
Rockwell Unscripted
upholstered step(s)
D
C
3.5" knob
Bracket
Power extender unit(s)
(patterns: UPPPLJ – )
Fig. 1
rockwell_ii_steps_linkable_power_hardware_180226.ai
rockwell_ii_steps_linkable_power_1_180302.ai
®
Steps Linkable Power Installation Instructions
Rockwell Unscripted
plywood step(s)
E
(Optional)
Linking power starter cord
(patterns: UPPPLS – )
F
Linking power starter
control box
A
A
Part Number: 6AJ5053
Sheet 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Knoll Rockwell Unscripted Steps Linkable Power 6AJ5053
Summary of Contents for Knoll Rockwell Unscripted Steps Linkable Power 6AJ5053
- Page 1 Rockwell Unscripted ® Steps Linkable Power Installation Instructions Steps Linkable Power Installation Instructions Reference Number: 6AJ5053 INSTRUCTIONS APPLY TO THE FOLLOWING PATTERN NUMBERS UPDB – UPSB – UPDL – UPSL – UPDR – UPSR – UPDUB – UPSUB – UPDUL – UPSUL –...
- Page 2 Rockwell Unscripted ® Steps Linkable Power Installation Instructions Steps Linkable Power Installation Instructions Reference Number: 6AJ5053 Fig. 2 2. Feed electrical cable of module (B) through cut-out opening into base. (Fig. 2) Fig. 3 3. Slide electrical module (B) into position, so it is flush with step surface.
- Page 3 Rockwell Unscripted ® Steps Linkable Power Installation Instructions Steps Linkable Power Installation Instructions Reference Number: 6AJ5053 Fig. 7 7. Feed electrical cord through 3" diameter opening(s) in step's internal vertical dividers to link to other modules or out through base opening to link to starter control box (F).
- Page 4 Rockwell Unscripted ® Steps Linkable Power Installation Instructions Steps Linkable Power Installation Instructions Reference Number: 6AJ5053 Note: 1. The linkable power starter monitors for correct number of units. Once connected to power, light on power starter control box will be green. If more than 8 modules or power extender units are plugged into starter control box, power will shut down and light will be...
