electrical harness for the navigation system to the top
of the battery (Figure
Note: You will complete the installation of the ring
terminals in Routing the Navigation Electrical Harness
to the Battery (page
Routing and Connecting the Data
Cable to the Sprayer Monitor

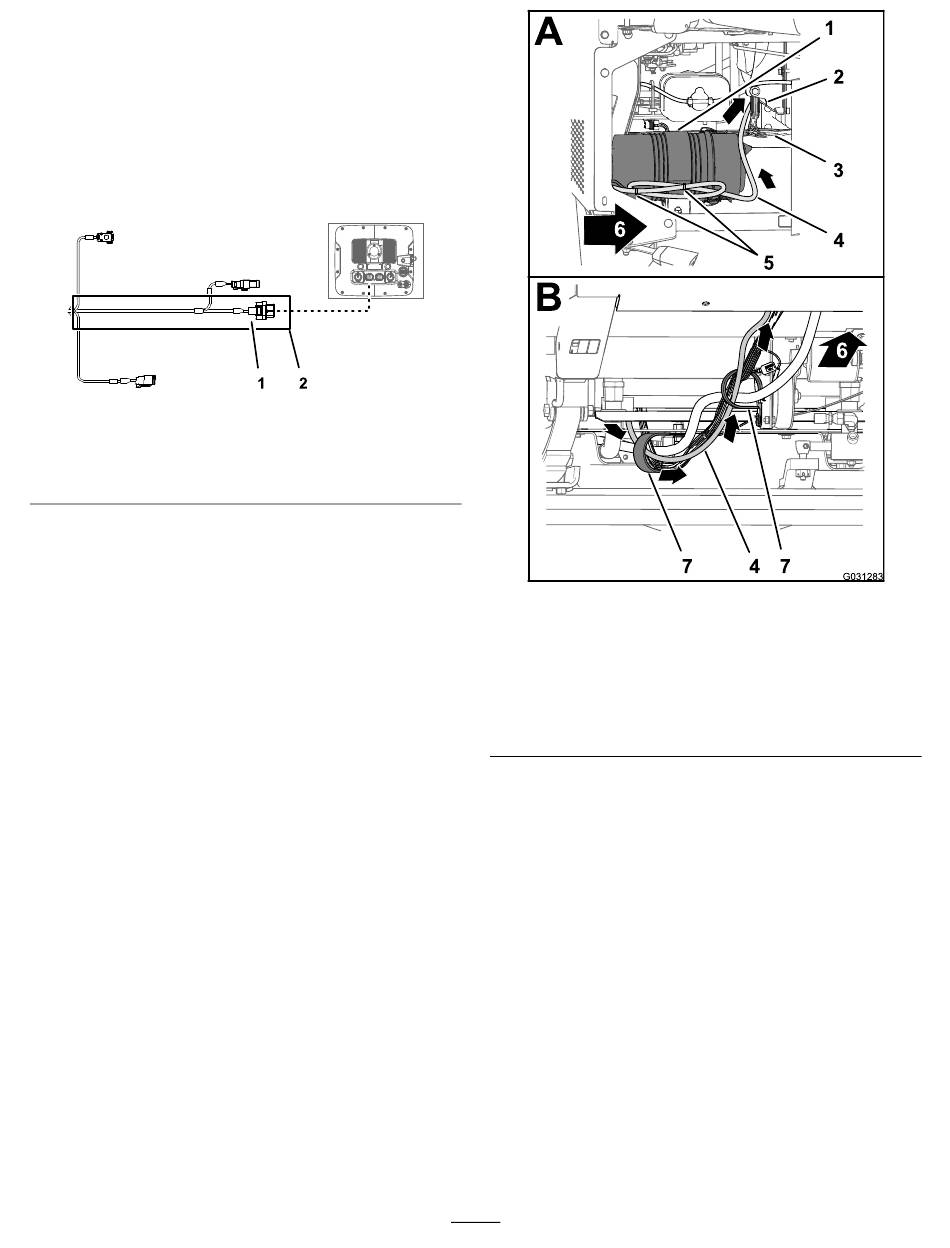

Figure 165
1. 26-socket
connector—data harness
(sprayer monitor)
1. At the right side of the engine compartment, route the
220 cm (86-5/8 inches) branch of the data harness
forward of the air filter for the engine and down toward
the lower right corer of the radiator
164).
70).
2. 220 cm (86-5/8 inch)
data-harness branch
(sprayer monitor)
(Figure 166).
g203669
1. Air filter (engine)
2. Radiator
3. Front wire harness of the
machine
4. 220 cm (86-5/8 inches)
data harness branch
2. Route the route the 220 cm (86-5/8 inches) branch of
the data harness forward and through the 2 R-clamps
at the bottom of the machine
3. Route the route the 220 cm (86-5/8 inches) branch of
the data harness forward and up through grommet that
surrounds the hole in the floor panel
71
Figure 166
5. Cable ties
6. Font of the machine
7. R-clamps
(Figure 166).
(Figure
g031283
167).
