7. Use a piece of tape to mark the length of the old liquid
and air tubes onto the new tube assembly.
8. At the new tube assembly, add 26 cm (10 inches) length
from the mark that you made in step 7, mark the tube
assembly, and cut the tubes at the second (longer) mark
(Figure 12).
9. If the old liquid and air tubes ares marked with a
cable tie, mark the new tube assembly with a cable tie;
otherwise skip to step 10.
Note: You no longer need the old liquid and air tubes.
10. Remove 77 to 102 mm (3 to 4 inches) of the sheathing
from around each end of the tube assembly
11. Repeat steps 1 through
at the other side of the machine.
Installing the New Tube Assembly
Machines without the Center Boom Extension
Kit

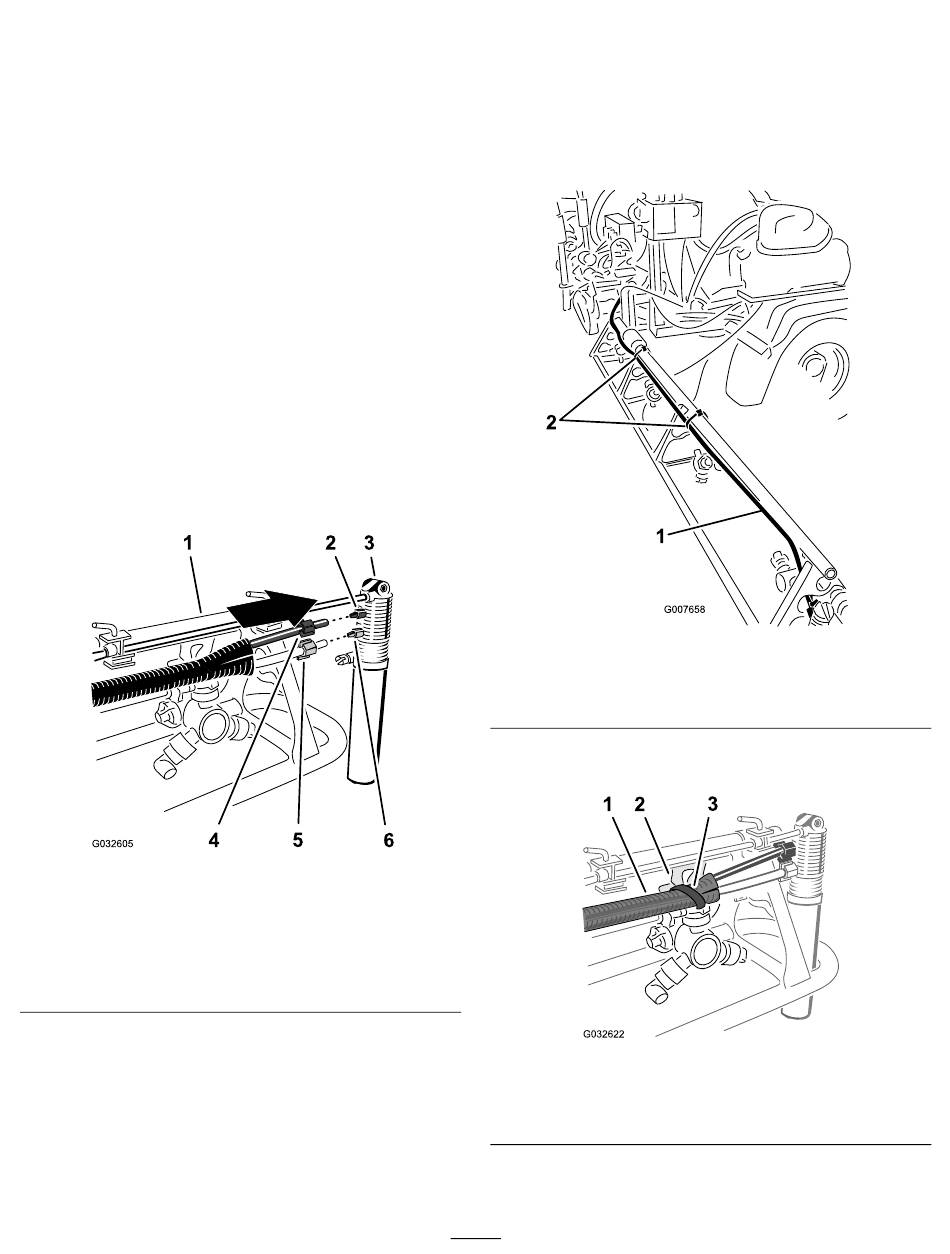

1. Slip the blue compression nut over the ends of blue
tube and the white compression nut over the clear tube
(Figure 13).
1. Outer boom section
2. Compression fitting (blue)
3. Foam-marker nozzle
2. Align the end of the clear tube with the white
compression nut to the white fitting of the
foam-marker nozzle, and tighten the compression nut
by hand (Figure 13).
3. Align the end of the blue tube with the blue
compression nut to the blue fitting of the foam-marker
nozzle, and tighten the compression nut by hand
(Figure 13).
(Figure
10 for the liquid and air tubes
Figure 13
4. Compression nut
(blue—blue water tube)
5. Compression nut
(white—clear air tube)
6. Compression fitting (white)
4. Route the tube assembly along the rear side of the
upper support pole of the outer boom section as
shown in Figure
Important: If the tube assembly is installed at
the wrong side of the upper support pole, the
tubes pinch between the cradle and the outer
boom section when the booms are in the transport
position.
12).
1. Tube assembly (right
boom section shown)
5. Secure the tube assembly to the hole in the nozzle
support with a cable tie as shown in
g032605
1. Tube assembly
2. Nozzle support
6. Secure the tube assembly to the outer boom section
with cable ties as shown in
11
14.
Figure 14
2. Cable ties
Figure
Figure 15
3. Cable tie
Figure 14.
g007658
15.
