Note: Retain the 90° barbed fitting and 2 clamps for
installation in steps 8
4. Remove the hose clamps that secure the drain-valve
hose and the rear tank-drain hose to the barbed
T-fitting (Figure 52).

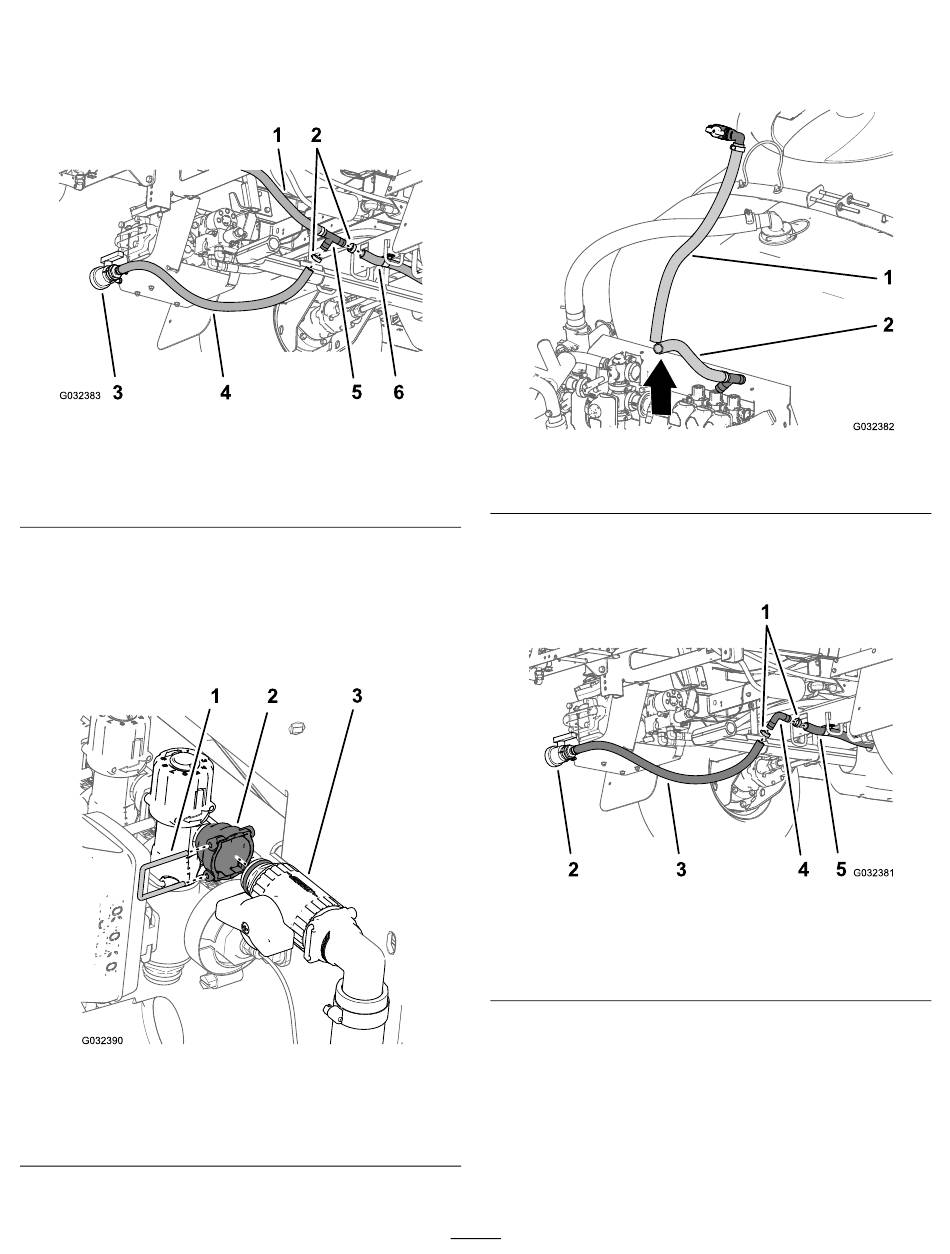

Figure 52
1. Lower bypass hose
2. Hose clamp
3. Drain valve
5. Remove the T-fitting from the drain-valve hose and the
rear tank-drain hose
6. Remove the retainer that secures the shutoff valve to
the coupler fitting at the outboard side of the bypass
valve for the right boom-section valve, and separate
the valves (Figure 53).
Figure 53
1. Retainer
2. Coupler fitting (bypass
valve)
and 9.
4. Drain-valve hose
5. Barbed T-fitting
6. Rear tank-drain hose
(Figure 51).
3. Shutoff valve
7. Remove the upper and lower bypass hoses from the
machine (Figure
Note: You no longer need the shutoff valve, T-fitting,
upper bypass hose, and lower bypass hose.
g032383
1. Upper bypass hose
8. Insert the 90° barbed fitting that you removed in step
into the drain-valve hose and the rear tank-drain hose
(Figure 55).
1. Hose clamp
2. Drain-valve hose
3. Drain valve
9. Secure the 90° barbed fitting and drain hoses with the
2 hose clamps that you removed in step
g032390
25
54).
Figure 54
2. Lower bypass hose
Figure 55
4. 90° barbed fitting
5. Rear tank-drain hose
2 (Figure
g032382
3
g032381
55).
