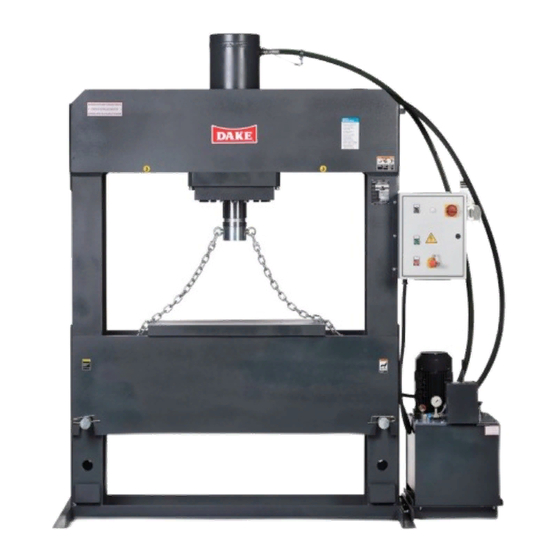

FORCE 150 Ton Press
INSTRUCTION MANUAL
220V/440V
WARNING! Read and understand all instructions and responsibilities before
operating. Failure to follow safety instructions and labels could result in
serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr.
customerservice@dakecorp.com
Grand Haven, MI 49417
Advertisement
Table of Contents
Related Manuals for Laguna Tools Dake Force 150
Summary of Contents for Laguna Tools Dake Force 150

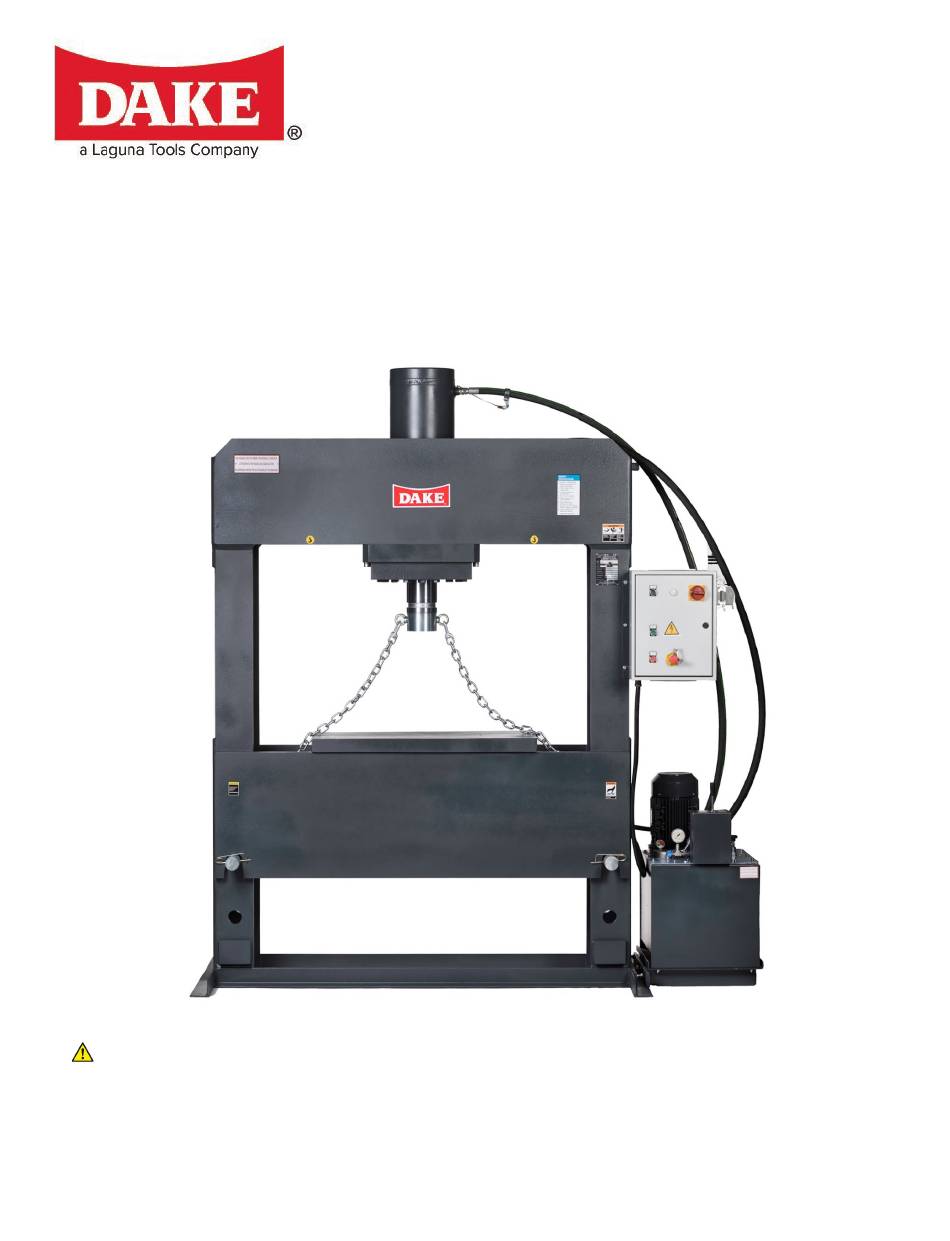

- Page 1 FORCE 150 Ton Press INSTRUCTION MANUAL 220V/440V WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr. customerservice@dakecorp.com Grand Haven, MI 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Table of Contents DAKE Standard Limited Warranty ..................... 3 Finished Machines ..........................3 Parts ..............................3 Sale of Service (Repairs)........................3 Warranty Process ..........................3 Warranty Exceptions ......................... 4 Return &... -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE Standard Limited Warranty Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. -
Page 4: Warranty Exceptions
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Purchasers who notify Dake within the warranty period will be issued a Case number and/or a Return Material Authorization (RMA) number. If the item is to be returned per Dake’s request, the RMA number must be clearly written on the exterior packaging. -
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Return & Refund Policy Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. - Page 6 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFEGUARDING THE POINT OF OPERATION ANSI B11.2 – Hydraulic Power Presses Safety Requirements for Construction, Care and Use It is important that Dake press users have a clear understanding of their responsibility involving the care and use of their Dake hydraulic press, including point-of-operation safeguards.
-
Page 7: Specifications
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Specifications Product Features: Double acting cylinder, utilizes the pulling force to raise and lower the table via chains, eliminating the need for hoist assemblies. Fast, quiet, dependable, economical price, smooth operating press that is very simple to operate. -
Page 8: Safety Labels
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Width Between Uprights 59 Inches Width Between Table Channels 14 Inches Maximum Ram to Table 35 Inches Minimum Ram to Table 14 Inches Available 220 – Volt 3 Phase Available 440 –... -
Page 9: Machine Procedures
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Machine Procedures Loading and Unloading Machine: WARNING! Be sure the maximum capacity of each strap is greater than the total weight of the press. Do not make sudden movements when transporting the machine. The manufacturer is not responsible for damage to the machine while loading or unloading the press. -
Page 10: Pump Rotation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Pump Rotation: After making the electrical connections to the press it is necessary to make a visual check on the direction of rotation of the electric motor. Before checking the direction of rotation of the pump, fill the reservoir with oil see Fig. 6 Unscrew the inspection cap. -
Page 11: First Start Up
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Figure 5 220 Volt Connection 440 Volt Connection First Start Up: After filling the reservoir through the fill cap, it is necessary to prime the pump. Check that all the valves and distributors are in the rest position, at the time of starting do not operate any movement. -
Page 12: Worktable Height Adjustment
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Worktable Height Adjustment: To optimize the use of the press it is necessary to set the worktable at a convenient height in relation to the operation to be carried out and to the equipment to be used. Before proceeding to lift the mobile table, check that: 1. -
Page 13: Trouble Shooting Issues
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Trouble Shooting Issues Question: Foam forms in the fluid? Solution: Fluid level too low. Fluid unsuitable. Fittings or joints let air inside the hydraulic system. Bring back up to correct level. Replace with suitable fluid. Replace or tighten fittings. Discharge the remaining air from the system Question: Pump delivers little to no fluid? -
Page 14: Parts List
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Parts List Electrical Box: Item # Part Name Part number Pump Start Button 716542 Stop Button 716539 Start Button 716556 Emergency Button 716538 Power Light 300298 Main Power Switch 302169 Elect. -
Page 15: Electrical Box Components
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Electrical Box Components: Item # Part Name 150 Ton Contactor Transformer Overload 220 volt Overload 440 volt N.O. Contact Block Relay Fuse Block Fuse 2 Amp Terminal Block Ground Terminal Block Black On-Off Switch Body Part# 972016-2... -
Page 16: Cylinder Breakdown
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Cylinder Breakdown: Item # Part Name Part# 150 Ton Piston Gasket Piston O-ring Head Guide Rings Head O-ring Head Gasket Head Scraper Repair Kit Washer Hose Fitting Top 302922 Hose Fitting Bottom 302922 NOT SHOWN... -
Page 17: Electrical Diagram
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Electrical Diagram Part# 972016-2 REV#082020... -
Page 18: Order Information
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Order Information Please contact factory for current prices Parts are available for direct purchase from Dake or through a distributor. When placing a parts order, you will need to provide the part number, name of part, and model number. All parts shipped F.O.B.
