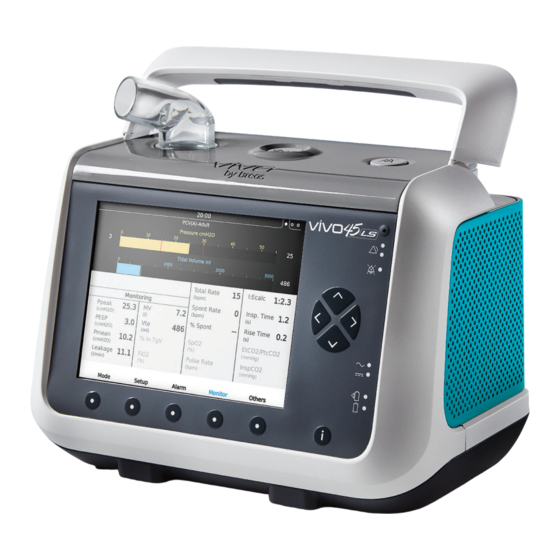

- Page 1 Vivo 45LS Quick Reference Guide for Lay Caregiver This is not a complete guide for the Vivo 45LS. See your manual for complete instructions.
-
Page 2: Connection To Power
Connection to Power Connecting a Patient Circuit If using an exhalation valve If using a heated wire circuit Connect the patient circuit circuit connect pressure connect wire to back tube to back Breas Vivo 45LS Quick Reference Guide for Lay Caregiver... -
Page 3: Start Treatment
Turn Off Press Start/Stop Press Button Under “Off” Silence Existing Alarm Silence All Alarms for 2 Minutes Press Audio Pause Button Press Audio Pause Button for 3 seconds then press OK Breas Vivo 45LS Quick Reference Guide for Lay Caregiver... -
Page 4: Front Panel
Navigation / Setting Buttons = Navigation Menu Buttons = Navigate display and define settings Select menus Mains LED = Connection to Mains Power External DC LED = Connection to External DC Power Breas Vivo 45LS Quick Reference Guide for Lay Caregiver... -
Page 5: Main Display
Peak (max pressure of last breath) Tidal volume during last breath Battery status and connected sensors Bar graph of tidal volume PEEP value Bar graph of current pressure Red lines in bar graphs are alarm limits Breas Vivo 45LS Quick Reference Guide for Lay Caregiver... -
Page 6: Menu Navigation
Monitor = breath to breath data / patient activity Other = miscellaneous information and options (humidifier settings adjustment) i Button = information given when information button is engaged / cursor highlighted area Breas Vivo 45LS Quick Reference Guide for Lay Caregiver... - Page 7 Press Setup to display Press Alarm to display current Ventilator settings current Alarm settings Monitor Others Press Monitor to display Press Others to display additional measured values ventilator settings and controls Breas Vivo 45LS Quick Reference Guide for Lay Caregiver...
-
Page 8: Battery Status Indicators
Air bypass unit or humidifier is not Push air bypass unit or humidifier into Humidifier/ Vivo 45 LS User manual Doc. 007300 Y-3 Bypass Loose fully inserted into device Vivo 45 LS until a “CLICK” is heard Breas Vivo 45LS Quick Reference Guide for Lay Caregiver... -
Page 9: Connecting Oxygen
Navigation / Setting Up and Down Buttons to get help informational text about a selected display element. Connecting Oxygen Connect oxygen tube to the oxygen inlet’s adapter fitting on the back of the unit Breas Vivo 45LS Quick Reference Guide for Lay Caregiver... - Page 10 Make sure not to fill above the Max indication. A water chamber filled to the maximum level contains approximately 350 ml. You can also remove the lid and fill water through the top of the chamber. Detaching Breas Vivo 45LS Quick Reference Guide for Lay Caregiver...
- Page 11 If there are mineral deposits inside the water based on the care provider’s infection chamber, dissolve them using warm water and control procedures. citric acid (i.e., lemon juice) for 30 minutes. Breas Vivo 45LS Quick Reference Guide for Lay Caregiver...
- Page 12 Vivo by Breas is a trademark of Breas Medical AB. © 2024 Breas Medical – All rights reserved. Breas Medical reserves the right to make changes in specifications and features shown herein, or discontinue the product described at any time without notice or obligation. Contact your Breas representative for the most current information.
