Summary of Contents for ICP DAS USA ZB-2571

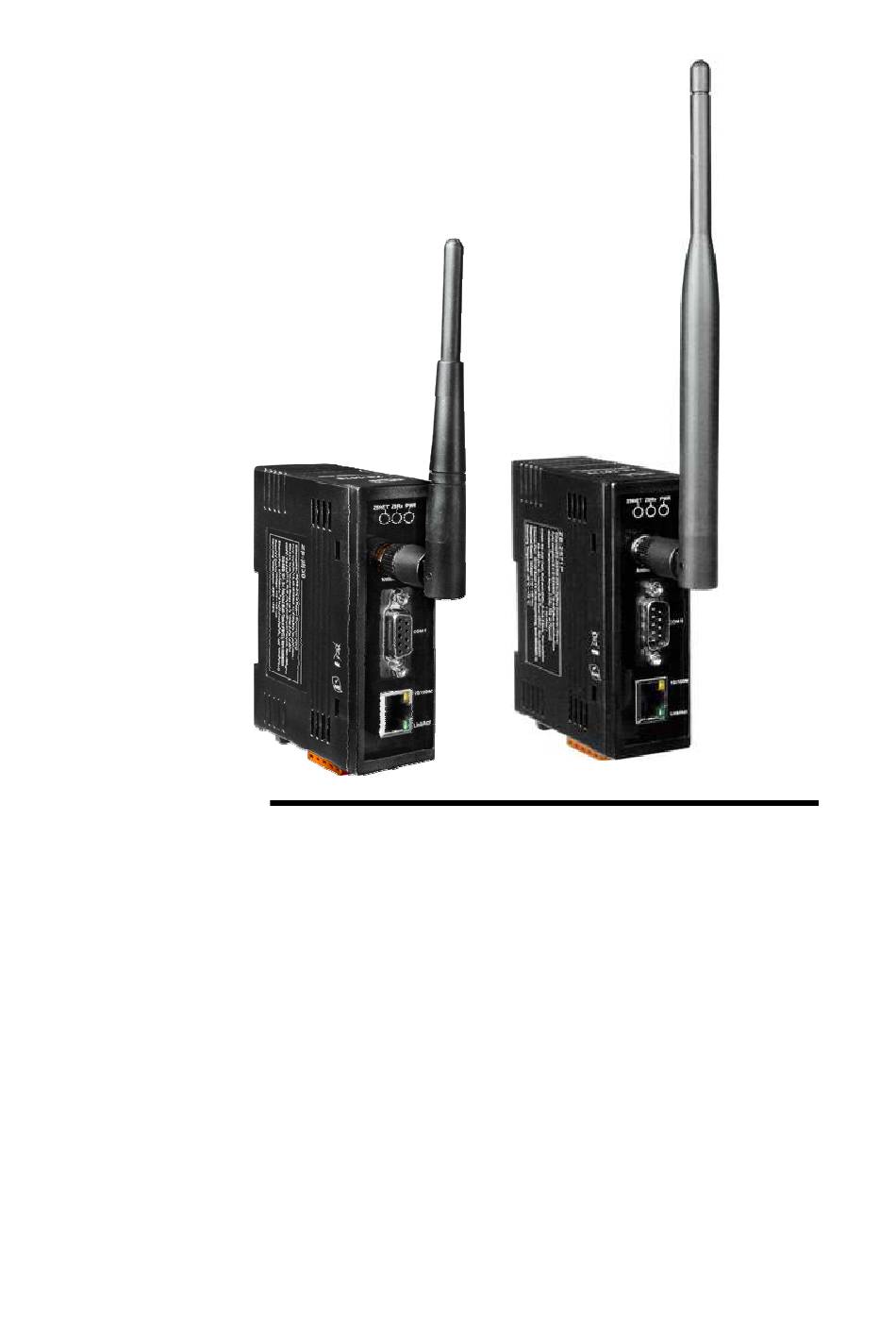

- Page 1 Quick Start Guide Become familiar with your ZB-2570/2571/2570P/2571P in minutes! ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.6 Page 1...
- Page 2 Quick Start for the ZigBee Converter 1. Before configuring the ZigBee converter, adjust the switch to the ZBSET position then switch on the power (Figure 1). After configuration is complete, adjust the switch to the RUN position then switch on the power (Figure 2). Be sure to turn the power off before adjusting the switch.
- Page 3 5. When the following screen is displayed: Build the Connection In the section: 1. Select the configuration interface of your ZigBee converter module. 2. Enter the interface parameters (COM Port number or IP) 3. Click the Connect button. ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.6 Page 3...
- Page 4 6. When the following screen is displayed: Set the Operating Mode In the section: 1. Select the interface that you plan to use for your ZigBee converter and devices. ZB-2570/2570P ZB-2571/2571P ZB-2571/2571P ZB-2571/2571P ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.6 Page 4...
- Page 5 If you select interface which is Ethernet, that you must select two thing. One is operation mode. The other is that ZB-2570/2570P or ZB-2571/2571P be a server or a client. If you select interface which is RS-232/RS-485, that you only need to select the operation mode.
- Page 6 7. When the following screen is displayed: Set the Parameters In the section: 1. Set the ZigBee parameters. After entering the ZigBee parameter settings, click the Set button. 2. Set the interface parameters, after finishing the interface parameter settings, click the Set button. 3.
-
Page 7: Installing The Hardware
2. Installing the Hardware 1. Adjust the switch to the RUN position then power on the module. 2. Serial Port - RS-232 ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.6 Page 7... - Page 8 3. Serial Port - RS-485 ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.6 Page 8...
- Page 9 4. Ethernet – RJ-45 ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.6 Page 9...
