Page 1: Quick Start Guide

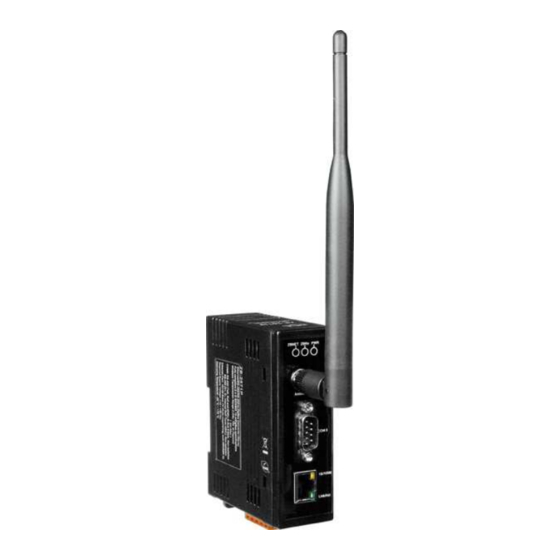

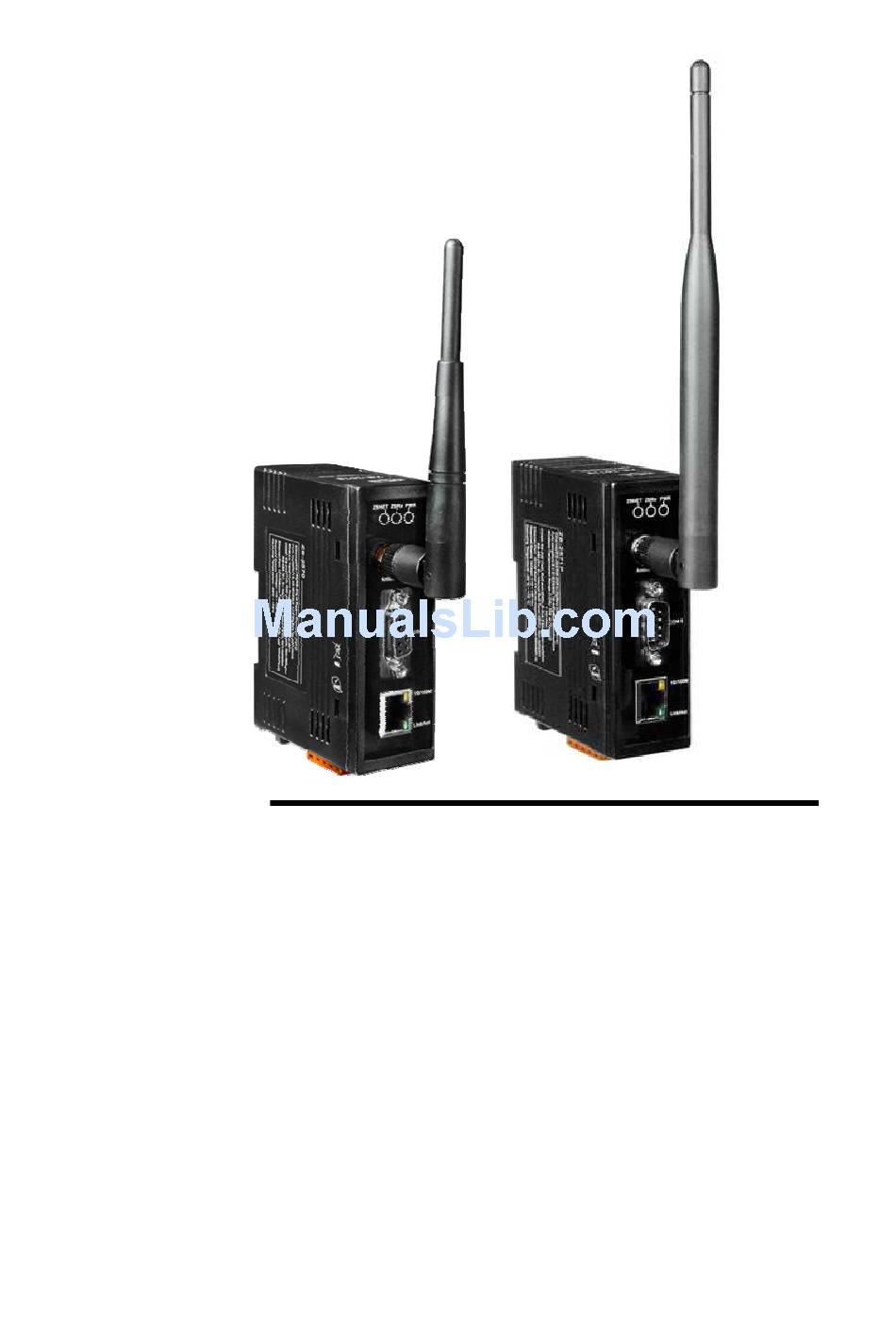

Quick Start Guide Become familiar with your ZB-2570/2571/2570P/2571P in minutes! ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.0 Page 1... - Page 2 RS-232) and execute the utility. 4. When the following screen is displayed: In the Environment Settings section: 1. Choose the language. 2. Choose the module (ZB-2570/2571/2570P/2571P). 3. Click the Next button. ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.0 Page 2...
- Page 3 5. When the following screen is displayed: Build the Connection In the section: 1. Select the configuration interface of your ZigBee converter module. 2. Enter the interface parameters (COM Port number or IP) 3. Click the Connect button. ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.0 Page 3...
- Page 4 6. When the following screen is displayed: Set the Operating Mode In the section: 1. Select the operating mode that you plan to use for your ZigBee converter and devices. 2. Click the Set button. ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.0 Page 4...
- Page 5 Click the OK button to continue the configuration. When the following alert is displayed, it means that configuration is finished. Click the OK button to exit the configuration. ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.0 Page 5...
-
Page 6: Installing The Hardware
2. Installing the Hardware 1. Adjust the switch to the RUN position then power on the module. 2. Serial Port - RS-232 ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.0 Page 6... - Page 7 3. Serial Port - RS-485 ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.0 Page 7...
- Page 8 4. Ethernet – RJ-45 ZB-2570/2571/2570P/2571P Quick Start Guide, Ver. 1.0 Page 8...
