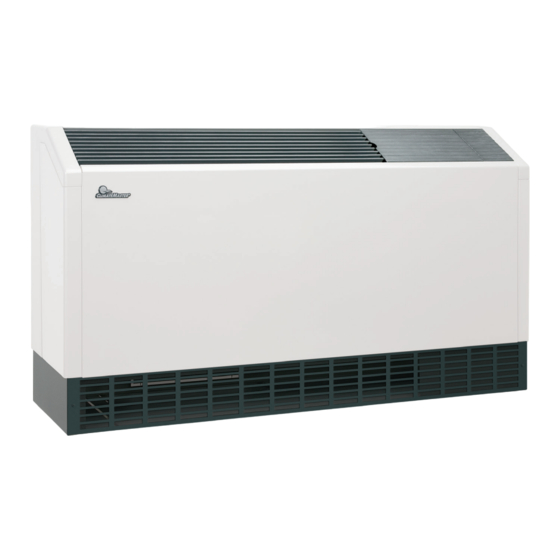

- Page 1 COMMERCIAL TranquiliTy® COnSOlE (SD) SEriES INSTALLATION, OPERATION & MAINTENANCE MANUAL Part#: 97B0163N01 | Created: May 14, 2024 Models: SD 09-18 60Hz – R-454B Preliminary...
-
Page 2: Table Of Contents
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Table of Contents 09-18 Model Nomenclature Controls: CXM2 Attentions, Cautions, and Warnings Operating Limits and Commissioning Conditions General Information Piping System: Cleaning and Flushing Installation Unit and System Checkout Piping Details Unit Startup Procedure Piping Connections Unit Operating Conditions Water-Loop Heat Pump Applications... - Page 3 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Model Nomenclature 09-18 PRODUCT NAME STANDARD S = R-454B Refrigerant S = Standard MODEL TYPE BLOWER MOTOR D = Console Water-Source Series P = PSC T = Constant Torque (CT) EC CABINET, RETURN, AND COLOR COPPER CONNECTIONS Pipe...
- Page 4 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Attentions, Cautions, and Warnings 09-18 SAFETY WARNING All refrigerant discharged from this unit must be recovered WITHOUT Warnings, cautions, and notices appear EXCEPTION. Technicians must follow industry accepted guidelines and throughout this manual. Read these items carefully all local, state, and federal statutes for the recovery and disposal of refrigerants.
-
Page 5: Attentions, Cautions, And Warnings
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Attentions, Cautions, and Warnings 09-18 CAUTION DO NOT store or install units in corrosive environments or in locations subject to temperature or humidity extremes (e.g., attics, garages, rooftops, etc.). Corrosive conditions and high temperature or humidity can significantly reduce performance, reliability, and service life. -
Page 6: General Information
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: General Information 09-18 INSPECTION PRE-INSTALLATION Upon receipt of the equipment, carefully check the Installation, Operation, and Maintenance instructions shipment against the bill of lading. Make sure all units are provided with each unit. Horizontal equipment have been received. - Page 7 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: General Information 09-18 Work Procedure Checks to the Refrigeration Equipment Work shall be undertaken under a controlled procedure The following checks shall be applied to installations so as to minimise the risk of a flammable gas or vapor using FLAMMABLE REFRIGERANTS: being present while the work is being performed.
- Page 8 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: General Information 09-18 REPAIR TO INTRINSICALLY SAFE COMPONENTS Intrinsically safe components must be replaced. CABLING Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.
- Page 9 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Physical Data 09-18 SD Console Series Unit Size Number of Refrigerant Circuits Factory Charge R-454B (oz) [kg] 22 [0.62] 23 [0.65] 26 [0.74] 31 [0.88] Refrigerant Leak Detection System Optional Refrigerant Leak Detection Sensors Water Connection Size O.D.
-
Page 10: Installation
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Installation 09-18 The installation of console water-source heat pumps and Connect the final piping as described in the all associated components, parts, and accessories that Supply and Return Piping and Condensate Piping make up the installation shall be in accordance with the section of the manual. - Page 11 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Installation 09-18 Maximum torque which may be applied to If the building drain connection is parallel with floor, brass fittings is 30 ft-lbs (41 N-m). When a torque the height can be up to 11/2 inches (38 mm) above the wrench is not used, tighten brass fittings finger- subbase for proper pitch and correct drainage.
-
Page 12: Piping Details
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Actual area is 7.25” w x 8.875”h Piping Details Models: Guides indicate .125” bleed all around Sizes 09-15 09-18 Right Hand Con guration Optional Flow Regulator 40.98 (1040) 1.62 (41) Optional 2.00 (51) Motorized Control Box Water Valve Water Out... - Page 13 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Actual area is 7.25” w x 8.875”h Piping Details Models: Guides indicate .125” bleed all around Size 18 09-18 Right Hand Con guration Optional Optional Motorized Auto ow Water Valve Valve Optional Auto Flow Valve Optional Motorized 1.75 (44)
-
Page 14: Piping Connections
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Piping Connections 09-18 INSTALLATION OF SUPPLY AND RETURN PIPING Follow these piping guidelines. Maximum allowable torque for brass fittings is 30 ft-lbs (41 N-m). If a torque wrench is not available, Install a drain valve at the base of each supply tighten finger-tight plus one quarter turn. -
Page 15: Water-Loop Heat Pump Applications
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Water-Loop Heat Pump Applications 09-18 COMMERCIAL WATER LOOP APPLICATIONS Commercial systems typically include a number of The piping system should be flushed to remove units connected to a common piping system. Any dirt, piping chips, and other foreign material prior unit plumbing maintenance work can introduce to operation (see Piping System Cleaning and air into the piping system;... -
Page 16: Ground-Loop Heat Pump Application
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Ground-Loop Heat Pump Application 09-18 Test individual horizontal loop circuits before CAUTION backfilling. Test vertical U-bends and pond loop The following instructions represent industry accepted installation assemblies prior to installation. Pressures of at least practices for closed loop earth coupled heat pump systems. -
Page 17: Water Quality Requirements
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Water Quality Requirements 09-18 Table 4: Water Quality Requirements Clean water is essential to the performance and life span of water source heat pumps. Contaminants, chemicals, and minerals all have the potential to cause damage to the water heat exchanger if not treated properly. - Page 18 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Water Quality Requirements 09-18 α The ClimateMaster Water Quality Table provides Hydrogen Sulfide has an odor of rotten eggs. water quality requirements for coaxial and If one detects this smell, a test for H S must be brazed plate heat exchangers.
- Page 19 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Actual area is 7.25” w x 8.875”h Models: Water Quality Requirements Guides indicate .125” bleed all around 09-18 Measuring Earth Ground Resistance for Ground-Water Applications � 0.02 Building Well Casing Ground Rod Ohm meter Measure the earth ground bond using an Ohm meter between the building’s ground rod and the steel well casing.
- Page 20 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Actual area is 7.25” w x 8.875”h Models: Water Quality Requirements Guides indicate .125” bleed all around 09-18 Measuring Electrolysis, Voltage, and Current for Ground-Water Applications 300mV Heat Pump Volt Meter Wire Electrode inserted into port for Voltage Measurement Pete’s Port Water in...
-
Page 21: Electrical Data
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Electrical Data Models: PSC Blower Motor 09-18 No Interal Secondary Pump TOTAL FUSE/ COMPRESSOR VOLTAGE VOLTAGE Model VOLTAGE MOTOR UNIT CIRCUIT HACR CODE MIN/MAX MCC RLA A.B. 115-1-60 104/126 12.5 50.0 11.0 SD09 G.J. 208/230-1-60 187/252 22.0... - Page 22 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Electrical Data Models: CT EC Blower Motor 09-18 No Interal Secondary Pump TOTAL FUSE/ COMPRESSOR VOLTAGE VOLTAGE Model VOLTAGE MOTOR UNIT CIRCUIT HACR CODE MIN/MAX MCC RLA A.B. 115-1-60 104/126 12.5 50.0 11.5 13.5 SD09 G.J.
-
Page 23: Electrical Data: Power Wiring
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Electrical Data: Power Wiring 09-18 POWER CONNECTION WARNING Disconnect electrical power source to prevent injury or death from Line voltage connection is made by connecting the electrical shock. incoming line voltage wires to the “L” side of the CAUTION contactor as shown in Figure 2 Consult electrical data tables for maximum fuse size. -
Page 24: Electrical Data: Low Voltage Wiring
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Electrical Data: Low Voltage Wiring 09-18 LOW WATER TEMPERATURE CUTOUT SELECTION Field Supplied The CXM2/DXM2.5 control allows the field selection of Disconnect Switch low water (or water-antifreeze solution) temperature limit by clipping jumper JW3 (see Figure 4 below), which changes the sensing temperature associated with thermistor LT1. - Page 25 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Electrical: Low Voltage Wiring 09-18 REFRIGERANT DETECTION SYSTEM (RDS) The function, operation, and required servicing measures for the Refrigerant Detection System (RDS) include the following: The RDS monitors the status of the refrigerant sensor(s) in the unit.
-
Page 26: Electrical: Thermostat Wiring
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Electrical: Thermostat Wiring 09-18 Unit-mounted control models include digital display To Change Mode unit-mounted auto changeover (ACO) control. Press the Mode button to toggle through heat only, cool only, auto, off. Stop where desired. Figure 6: CM 100 (ATA32V01) To Adjust Setpoint Press the Up Arrow for temperature increase or down... - Page 27 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Electrical: Thermostat Wiring 09-18 To enter Advanced mode, push and hold the Fan button for 10-15 seconds. Use Mode and Arrow buttons to make selections. Code 02 is sensor selection: rS is remote (default) - DO NOT CHANGE.
- Page 28 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Electrical: Thermostat Wiring 09-18 OPTIONAL WALL-MOUNTED THERMOSTAT Tranquility SD units (Model digit 9 is C or D) are built Zone integrity must be maintained to efficiently with standard internal thermostat that has automatic control units or groups of units.
-
Page 29: Blower Performance
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Blower Performance 09-18 PSC Blower Performance Rated SCFM Model Airflow Medium Low Speed High Speed Speed SD09 SD12 SD15 SD18 Blower performance data is based on the lowest nameplate voltage setting. Blower performance is based on a wet coil with clean 1-inch filter. Blower performance is based on operating conditions of 80°F DB and 67°F WB. -
Page 30: Controls: Cxm2
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Controls: CXM2 09-18 CXM2 Controls For detailed controller information, see the CXM2 Application, Operation, and Maintenance (AOM) manual (part # 97B0137N01). To confirm the controller type of your particular unit, refer to digit 9 on the unit model number and the unit nomenclature diagram found on page 3 of this manual. -
Page 31: Operating Limits And Commissioning Conditions
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Operating Limits and Commissioning Models: Conditions 09-18 OPERATING LIMITS COMMISSIONING CONDITIONS Environment – Units are designed for indoor Starting conditions vary depending upon model and installation only. Never install units in areas subject are based upon the following notes: to freezing or where humidity levels could cause NOTES: cabinet condensation (such as unconditioned... -
Page 32: Piping System: Cleaning And Flushing
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Piping System: Cleaning and Flushing 09-18 PIPING SYSTEM CLEANING AND FLUSHING Cleaning and flushing the WLHP piping system is the 8. When the cleaning process is complete, single most important step to ensure proper start-up remove the short-circuited hoses. -
Page 33: Unit And System Checkout
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Unit and System Checkout 09-18 UNIT AND SYSTEM CHECKOUT SYSTEM CHECKOUT BEFORE POWERING SYSTEM, please System water temperature: Check water † check the following: temperature for proper range and also verify heating and cooling set points for proper operation. UNIT FEATURES System pH: Check and adjust water pH if †... -
Page 34: Unit Startup Procedure
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Unit Startup Procedure 09-18 UNIT STARTUP PROCEDURE Turn the thermostat fan position to “ON”. Blower 6. Allow five (5) minutes between tests for pressure should start. to equalize before beginning heating test. 2. Balance air flow at registers. a. -
Page 35: Unit Operating Conditions
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Unit Operating Conditions 09-18 Operating Pressure/Temperature tables include the following notes: Airflow is at nominal (rated) conditions Entering air is based upon 70°F (21°C) DB in heating and 80/67°F (27/19°C) in cooling Subcooling is based upon head pressure at compressor service port Cooling air and water values can vary greatly with changes in humidity level Table 8: SD Series Typical Unit Operating Pressures and Temperatures SD09... - Page 36 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Unit Operating Conditions 09-18 SD15 Full Load Cooling Full Load Heating Entering Water Water Water Suction Discharge Suction Discharge Water Flow Super- Sub- Temp Temp Super- Sub- Temp Temp Pressure Pressure Pressure Pressure Temp GPM/ heat...
- Page 37 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Unit Operating Conditions 09-18 Table 9: Coax Water Pressure Drop PD Added for Pressure Drop, PSI Model Motorized Water 30°F 50°F 70°F 90°F Valve SD09 SD12 SD15 SD18 w w w. c l i m a t e m a s t e r. c o m C r e a t e d : M a y 1 4 , 2 0 2 4 PA G E : 3 7...
-
Page 38: Startup Log Sheet
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Startup Log Sheet Startup Log Sheet 09-18 Model: Console Series Units 7300 S.W. 44th Street, Oklahoma City, OK 73179 • Phone: 1-800-299-9747 Installer: Complete Unit and System Checkout and follow Unit Startup Procedures in the IOM. Use this form to record unit information, temperatures, and pressures during startup. -
Page 39: Preventative Maintenance
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Preventative Maintenance 09-18 WATER COIL MAINTENANCE COMPRESSOR (WATER LOOP APPLICATIONS) Conduct annual amperage checks to ensure that amp draw is no more than 10% greater than Generally water coil maintenance is not needed for indicated on the serial dataplate. -
Page 40: Functional Troubleshooting
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Functional Troubleshooting 09-18 Fault Htg Clg Possible Cause Solution Check line voltage circuit breaker and disconnect. Check for line voltage between L1 and L2 on the contactor. Main power problems Green Status LED Off Check for 24VAC between R and C on CXM2/DXM2.5. - Page 41 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Functional Troubleshooting 09-18 Table continued from previous page. Fault Htg Clg Possible Cause Solution Check power supply and 24VAC voltage before and during operation. Check power supply wire size. Under Voltage Check compressor starting. Need hard start kit? Over/Under Voltage Code 7 Check 24VAC and unit transformer.
- Page 42 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: 09-18 Table continued from previous page. Fault Htg Clg Possible Cause Solution Check G wiring at heat pump. Jumper G and R for fan operation. Thermostat wiring Check thermostat wiring at heat pump. Jumper Y and R for compressor operation in test mode.
-
Page 43: Performance Troubleshooting
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Performance Troubleshooting 09-18 Symptom Htg Clg Possible Cause Solution Dirty filter Replace or clean. Check for dirty air filter and clean or replace. Reduced or no airflow in heating Check fan motor operation and airflow restrictions. Too high of external static? Check static vs. - Page 44 TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Performance Troubleshooting 09-18 Table continued from previous page. Symptom Htg Clg Possible Cause Solution Too high of airflow Check fan motor speed selection and airflow chart. High humidity Recheck loads & sizing. Check sensible cooling load and heat Unit oversized pump capacity.
-
Page 45: Functional Troubleshooting Form
Serial Number: ________________________ TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Date: ________________________ Packa ged Unit Refrigeration Schematic Customer: _______________________________ ______ Antifreeze: ________________________ Models: Model#: ________________________ Serial#: ________________ Loop type: _______________ Functional Troubleshooting Form 09-18 Complaint: ________________________________________________________________________ HEATING CY CLE ANALYS IS - °F SUCT ION COIL... -
Page 46: Warranty (U.s. And Canada)
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Warranty (U.S. and Canada) 09-18 PA G E : 4 6 C r e a t e d : M a y 1 4 , 2 0 2 4 w w w. c l i m a t e m a s t e r. c o m... -
Page 47: Warranty (International)
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Warranty (International) 09-18 w w w. c l i m a t e m a s t e r. c o m C r e a t e d : M a y 1 4 , 2 0 2 4 PA G E : 4 7... -
Page 48: Revision History
TranquiliTy® 16 (SD) VErSaTilE SEriES– iOM Models: Revision History 09-18 Date Section Description 05/14/24 Created 7300 SW 44th St. | Oklahoma City, OK 73179 *97B0163N01* Phone: 1-800-299-9747 www.climatemaster.com ClimateMaster works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice and may not be as described herein.
