COMMERCIAL

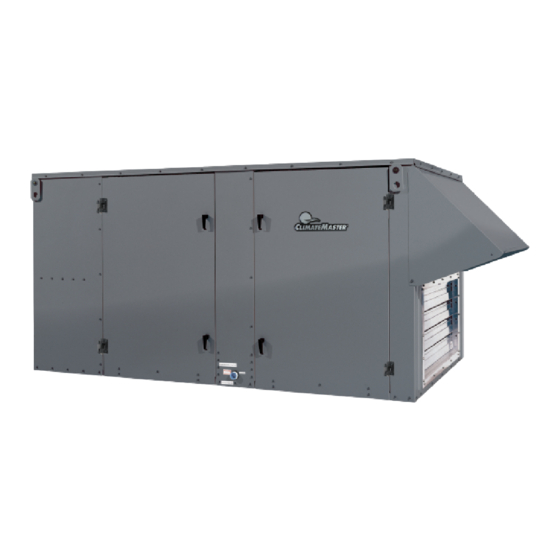

TranquiliTy® (ST) rOOFTOP SEriES
INSTALLATION, OPERATION
& MAINTENANCE MANUAL
Part#: 97B0162N01 | Created: May 14, 2024
Models: ST 036-240
60Hz – R-454B
PRELIMINARY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ClimateMaster Tranquility Rooftop ST Series and is the answer not in the manual?

Questions and answers

Related Manuals for Nibe ClimateMaster Tranquility Rooftop ST Series

Summary of Contents for Nibe ClimateMaster Tranquility Rooftop ST Series

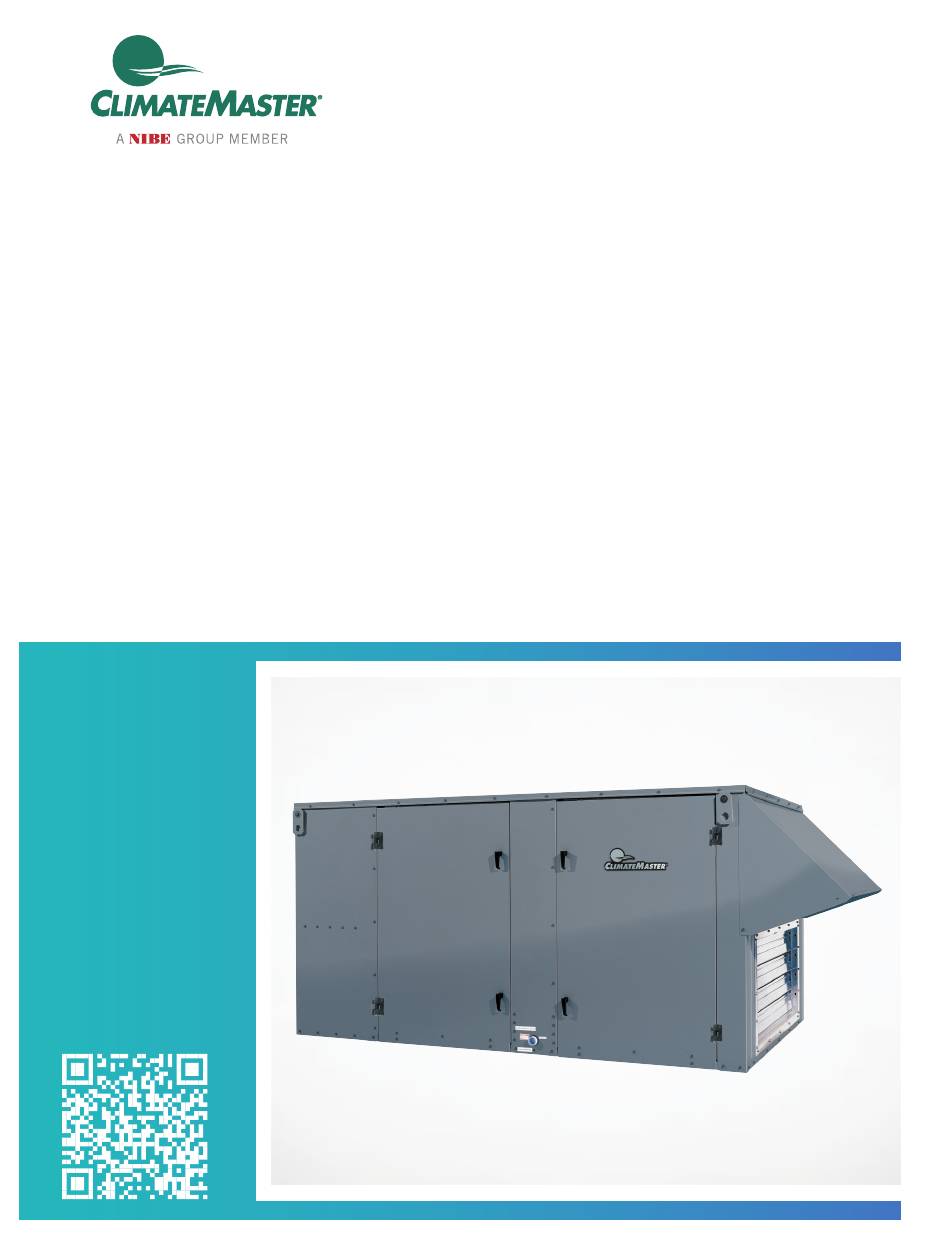

  • Page 1 COMMERCIAL TranquiliTy® (ST) rOOFTOP SEriES INSTALLATION, OPERATION & MAINTENANCE MANUAL Part#: 97B0162N01 | Created: May 14, 2024 Models: ST 036-240 60Hz – R-454B PRELIMINARY...
