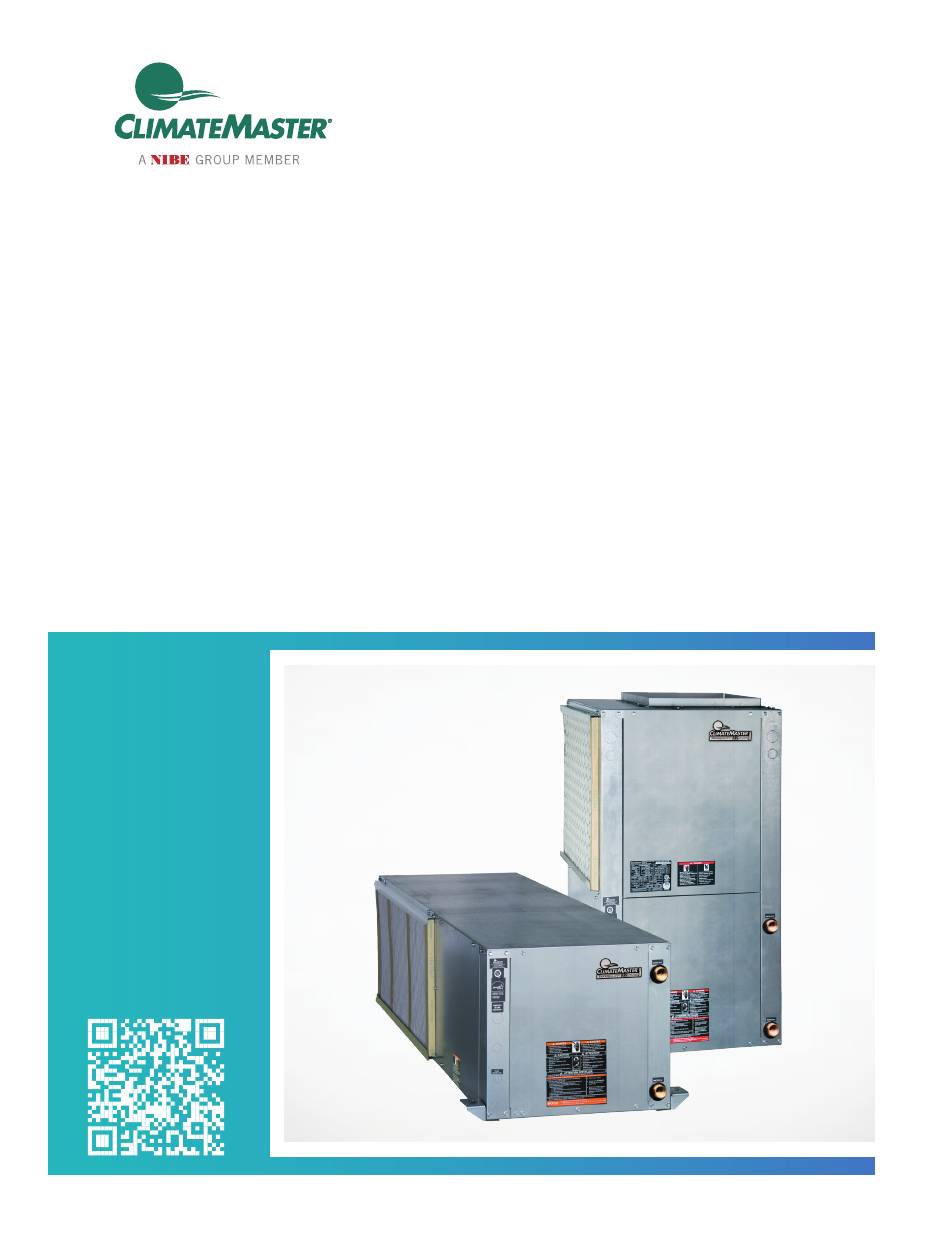

TranquiliTy® 24 (Sy) COMPaCT TWO-STaGE SEriES
INSTALLATION, OPERATION
& MAINTENANCE MANUAL
Part#: 97B0075N33 | Created: January 18, 2024
Models: SY 024-060
60Hz – R-454B
Preliminary

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLIMATEMASTER Tranquility SY Series and is the answer not in the manual?

Questions and answers

Related Manuals for Nibe CLIMATEMASTER Tranquility SY Series

Summary of Contents for Nibe CLIMATEMASTER Tranquility SY Series

  • Page 1 TranquiliTy® 24 (Sy) COMPaCT TWO-STaGE SEriES INSTALLATION, OPERATION & MAINTENANCE MANUAL Part#: 97B0075N33 | Created: January 18, 2024 Models: SY 024-060 60Hz – R-454B Preliminary...

  • Page 2: Table Of Contents

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Table of Contents 024-060 Model Nomenclature Electrical: Low Voltage Wiring Attentions, Cautions, and Warnings Electrical: Thermostat Wiring General Information EC Blower Control Minimum Installation Area Blower Performance Refrigerant System Servicing Controls: DXM2.5 Physical Data Operating and Commissioning Limits Horizontal Installation Piping System Cleaning and Flushing...

  • Page 3: Model Nomenclature

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Model Nomenclature 024-060 MODEL STANDARD S = R-454B Refrigerant S = Standard MODEL TYPE BLOWER MOTOR Y = Compact Two-Stage Series V = Constant Volume (CV) EC SUPPLY & RETURN EXTENDED OPTIONS CONFIGURATIONS 0 = None Horizontal Confi guration DRAIN PAN/HEAT EXCHANGER OPTIONS...

  • Page 4: Attentions, Cautions, And Warnings

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Attentions, Cautions, and Warnings 024-060 SAFETY WARNING All refrigerant discharged from this unit must be recovered WITHOUT Warnings, cautions, and notices appear EXCEPTION. Technicians must follow industry accepted guidelines and throughout this manual. Read these items carefully all local, state, and federal statutes for the recovery and disposal of refrigerants.
  • Page 5 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Attentions, Cautions, and Warnings 024-060 CAUTION DO NOT store or install units in corrosive environments or in locations subject to temperature or humidity extremes (e.g., attics, garages, rooftops, etc.). Corrosive conditions and high temperature or humidity can significantly reduce performance, reliability, and service life.

  • Page 6: General Information

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: General Information 024-060 INSPECTION PRE-INSTALLATION Upon receipt of the equipment, carefully check the Installation, Operation, and Maintenance instructions shipment against the bill of lading. Make sure all units are provided with each unit. Horizontal equipment have been received.
  • Page 7 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: General Information 024-060 Work Procedure Checks to the Refrigeration Equipment Work shall be undertaken under a controlled procedure The following checks shall be applied to installations so as to minimise the risk of a flammable gas or vapor using FLAMMABLE REFRIGERANTS: being present while the work is being performed.
  • Page 8 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: General Information 024-060 REPAIR TO INTRINSICALLY SAFE COMPONENTS REQUIRED AREA FOR INSTALLATION Do not apply any permanent inductive or The minimum room area of the space (A ) or a capacitance loads to the circuit without ensuring minimum room area of conditioned space (T ) shall amin...

  • Page 9: Minimum Installation Area

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Minimum Installation Area 024-060 MINIMUM INSTALLATION AREA Minimum area where a blower-equipped unit can be installed, and mechanical/natural ventilation is not required Minimum Installation Minimum area where unit is installed where unit Charge Area ft ) [A has incorporated airflow...
  • Page 10 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Minimum Installation Area 024-060 When the openings for connected rooms or natural ventilation are required, the following conditions shall be applied: The area of any openings above 11.8 inches (300 mm) from the floor shall not be considered in determining compliance with Anv At least 50% of the required opening area Anv shall be below 7.8 inches (200 mm) from the floor.

  • Page 11: Refrigerant System Servicing

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Refrigerant System Servicing 024-060 REFRIGERANT SYSTEM To maintain sealed circuit integrity, do not install The outlet for the vacuum pump shall not service gauges unless unit operation appears be close to any potential ignition sources, abnormal.
  • Page 12 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Refrigerant System Servicing 024-060 Leak detection equipment shall be set at a percentage of the lower flammability limit of the refrigerant and shall be calibrated to the refrigerant employed, and the appropriate percentage of gas (25 % maximum) is confirmed.

  • Page 13: Physical Data

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Physical Data 024-060 Tranquility (SY) Series Model Compressor (1 Each) Scroll Number of refrigerant circuits Factory Charge (oz) R-454B Refrigerant Leak Detection System Number of Sensors Water Connection Size Swivel - Residential Class 1"...

  • Page 14: Horizontal Installation

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Horizontal Installation 024-060 HORIZONTAL UNIT LOCATION The installation of water source heat pump units and all associated components, parts and accessories which Units are not designed for outdoor installation. Locate make up the installation shall be in accordance with the unit in an INDOOR area that allows enough the regulations of ALL authorities having jurisdiction space for service personnel to perform typical...

  • Page 15: Horizontal Installation:service Access

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Actual area is 7.25” w x 8.875”h Horizontal Installation: Models: Guides indicate .125” bleed all around Service Access 024-060 Left Return Back Discharge Right Return Back Discharge Supply Supply Air Flow Air Flow Return Return Air Flow Air Flow...
  • Page 16 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Actual area is 3.5313” w x 8.875”h Horizontal Installation 024-060 Guides indicate .125” bleed all around Figure 2: Horizontal Unit Pitch 1/4” (6.4mm) pitch toward drain for drainage HORIZONTAL INSTALLATION Drain connection Figure 3: Typical Horizontal Unit Installation Figure 3: Typical Unit Installation 3/8"...
  • Page 17 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Horizontal Installation 024-060 CONDENSATE PIPING POLYMER DRAIN PANS A condensate drain line must be installed and Condensate drain connection is a rubber coupling pitched away for the unit to allow for proper that connects to 3/4-inch schedule 40/80 PVC. Use hose drainage.

  • Page 18: Duct System Installation

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Duct System Installation 024-060 DUCT SYSTEM INSTALLATION Proper duct sizing and design is critical to the For water source heat humps connected via an air duct performance of the unit. The duct system should system to one of more rooms and containing R-454B, be designed to allow adequate and even airflow the supply and return air shall be directly ducted to the...

  • Page 19: Field Conversion Of Air Discharge

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Actual area is 3.5313” w x 8.875”h Field Conversion of Air Discharge 024-060 Guides indicate .125” bleed all around Figure 5: Left Return – Side-to-Back OVERVIEW Remove Screws Water Horizontal unit blower assembly can be field Connection End converted between side (straight) and back (end) discharge using the instructions below.

  • Page 20: Vertical Installation

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Vertical Installation 024-060 VERTICAL UNIT LOCATION Figure 7: Vertical Unit Mounting Units are not designed for outdoor installation. Locate the unit in an INDOOR area that allows enough space for service personnel to perform typical maintenance or repairs without removing unit from the mechanical room/closet.
  • Page 21 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Vertical Installation 024-060 SOUND ATTENUATION FOR VERTICAL UNITS Always vent the condensate line when dirt or air can collect in the line or a long horizontal drain line Sound attenuation is achieved by enclosing the is required.

  • Page 22: Vertical Installation: Service Access

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Actual area is 7.25” w x 8.875”h Models: Vertical Installation: Service Access Guides indicate .125” bleed all around 024-060 Left Return Supply Air Opening Front CCP and BSP Right Return Supply Air Opening Front CCP and BSP = mandatory 2-foot (61 cm) service access Notes:...

  • Page 23: Piping Installation

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Piping Installation 024-060 INSTALLATION SUPPLY AND RETURN PIPING Optional pressure-rated hose assemblies designed specifically for use with ClimateMaster units are Follow these piping guidelines: available. Similar hoses can be obtained from alternate suppliers. Supply and return hoses are Install a drain valve at the base of each supply fitted with swivel-joint fittings at one end to prevent and return riser to facilitate system flushing.

  • Page 24: Water-Loop Heat Pump Applications

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Water-Loop Heat Pump Applications 024-060 COMMERCIAL WATER LOOP APPLICATIONS Commercial systems typically include a number of The piping system should be flushed to remove units connected to a common piping system. Any dirt, piping chips, and other foreign material prior unit plumbing maintenance work can introduce to operation (see Piping System Cleaning and air into the piping system;...

  • Page 25: Ground-Loop Heat Pump Application

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Ground-Loop Heat Pump Application 024-060 Test individual horizontal loop circuits before CAUTION backfilling. Test vertical U-bends and pond loop The following instructions represent industry accepted installation assemblies prior to installation. Pressures of at least practices for closed loop earth coupled heat pump systems.
  • Page 26 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Ground-Loop Heat Pump Applications 024-060 Figure 12: Typical Ground-Loop Application with Central Pumping To Thermostat Water Out Water In High and Low Voltage Shut Off Knockouts Ball Valves for Isolation Vibration Isolation Pad Figure 13: Ground Water Heat Pump Applications Typical Open Loop/Well To Thermostat Water Out...

  • Page 27: Water Quality Requirements

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Water Quality Requirements 024-060 Table 4: Water Quality Requirements Clean water is essential to the performance and life span of water source heat pumps. Contaminants, chemicals, and minerals all have the potential to cause damage to the water heat exchanger if not treated properly.
  • Page 28 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Water Quality Requirements 024-060 α The ClimateMaster Water Quality Table provides Hydrogen Sulfide has an odor of rotten eggs. water quality requirements for coaxial and If one detects this smell, a test for H S must be brazed plate heat exchangers.
  • Page 29 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Actual area is 7.25” w x 8.875”h Models: Water Quality Requirements Guides indicate .125” bleed all around 024-060 Measuring Earth Ground Resistance for Ground-Water Applications � 0.02 Building Well Casing Ground Rod Ohm meter Measure the earth ground bond using an Ohm meter between the building’s ground rod and the steel well casing.
  • Page 30 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Actual area is 7.25” w x 8.875”h Models: Water Quality Requirements Guides indicate .125” bleed all around 024-060 Measuring Electrolysis, Voltage, and Current for Ground-Water Applications 300mV Heat Pump Volt Meter Wire Electrode inserted into port for Voltage Measurement Pete’s Port Water in...

  • Page 31: Electrical Data: (Cv) Ec Blower Motor Standard Unit

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Electrical Data: (CV) EC Blower Motor Models: Standard Unit 024-060 Compressor Voltage Min/Max Fan Motor Total Unit Min Circ Max Fuse/ Model Voltage Code Voltage HACR 208/230-60-1 197/252 10.3 62.0 14.5 17.1 265-60-1 239/292 56.0 10.5 12.1...

  • Page 32: Electrical: Power Wiring

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Electrical: Power Wiring 024-060 POWER CONNECTION WARNING Disconnect electrical power source to prevent injury or death from Line voltage connection is made by connecting the electrical shock. incoming line voltage wires to the “L” side of the CAUTION contactor as shown in Figure 14.

  • Page 33: Electrical: Dxm2.5 Example Wiring Diagram

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Electrical: DXM2.5 Example Wiring Diagram 024-060 w w w. c l i m a t e m a s t e r. c o m C r e a t e d : J a n u a r y 1 8 , 2 0 2 4 PA G E : 3 3...

  • Page 34: Electrical: Low Voltage Wiring

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Electrical: Low Voltage Wiring 024-060 THERMOSTAT CONNECTIONS Therefore, LT1 is sensing refrigerant temperature, not water temperature, which is a better indication The thermostat should be wired directly to the of how water flow rate/temperature is affecting DXM2.5 board.
  • Page 35 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Electrical: Low Voltage Wiring 024-060 ACCESSORY CONNECTIONS WATER SOLENOID VALVES A terminal paralleling the compressor contactor coil An external solenoid valve(s) should be used on has been provided on the CXM2/DXM2.5 control. ground water installations to shut off flow to the Terminal “A”...
  • Page 36 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Electrical: Low Voltage Wiring 024-060 Figure 19 illustrates piping for two-stage solenoid valves. Review figures 19-21 for wiring of stage one valve. Stage two valve should be wired between terminal “Y2” and terminal “C.” NOTE: When EWT is below 50°F [10°C], a minimum 2 gpm per ton (2.6 l/m per kW) is required.
  • Page 37 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Electrical: Low Voltage Wiring 024-060 REFRIGERANT DETECTION SYSTEM (RDS) RDS INSTALLATION The function, operation, and required servicing For horizontal systems installed on ceiling plenum measures for the Refrigerant Detection System (RDS) for non-ducted applications, use the following include the following: guidelines to install a refrigerant detection sensor upstream of the return of the unit:...

  • Page 38: Electrical: Thermostat Wiring

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Electrical: Thermostat Wiring 024-060 THERMOSTAT INSTALLATION The thermostat should be located on an interior Mark the position of the back plate mounting wall in a larger room, away from supply duct holes and drill holes with a 3/16-inch (5 mm) bit. drafts.
  • Page 39 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: EC Blower Motor Control 024-060 The EC blower motor is controlled directly by the It is highly recommended that the Communicating DXM2.5 control board that converts thermostat (AWC) Thermostat or ACDU03C be used to inputs and CFM settings to signals used by the EC set dehumidification mode electronically.

  • Page 40: Blower Performance

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Blower Performance 024-060 (CV) EC MOTOR ADVANTAGE A major benefit of the (CV) EC motor over other blower motor types is its ability to adjust airflow remotely through the iGate 2 web portal/mobile app or directly at the unit with a communicating diagnostic service tool. Airflow levels can be adjusted in increments of 25 CFM from the unit’s minimum and maximum CFM range (see the (CV) EC motor configuration table for details).

  • Page 41: Controls: Dxm2.5

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Controls: DXM2.5 024-060 DXM2.5 Controls For detailed controller information, see the DXM2.5 Application, Operation, and Maintenance (AOM) manual (part # 97B0142N01). To confirm the controller type of your particular unit, refer to digit 9 on the unit model number and the unit nomenclature diagram found on page 3 of this manual.

  • Page 42: Operating And Commissioning Limits

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Operating and Commissioning Limits 024-060 OPERATING LIMITS COMMISSIONING CONDITIONS Environment – Units are designed for indoor Starting conditions vary depending upon model and installation only. Never install units in areas subject are based upon the following notes: to freezing or where humidity levels could cause NOTES: cabinet condensation (such as unconditioned...

  • Page 43: Piping System Cleaning And Flushing

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Piping System Cleaning and Flushing 024-060 PIPING SYSTEM CLEANING AND FLUSHING Refill the system and add trisodium phosphate in a proportion of approximately one pound per Cleaning and flushing the WLHP piping system is the 150 gallons (0.8 kg per 1000 l) of water (or other single most important step to ensure proper start-up equivalent approved cleaning agent).

  • Page 44: Unit And System Checkout

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Unit and System Checkout 024-060 SYSTEM CHECKOUT WARNING Polyolester Oil, commonly known as POE oil, is a synthetic oil used in System water temperature: Check water † many refrigeration systems including those with R-454B refrigerant. temperature for proper range and also verify POE oil, if it ever comes in contact with PVC or CPVC piping, may cause failure of the PVC/CPVC.

  • Page 45: Unit Startup Procedure

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Unit Startup Procedure 024-060 UNIT STARTUP PROCEDURE Heat of rejection (HR) can be calculated and compared to submittal data capacity pages. Turn the thermostat fan position to “ON”. The The formula for HR for systems with water is blower should start.
  • Page 46 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Unit Startup Procedure 024-060 e. Check air temperature rise across the air coil when compressor is operating. Air temperature rise should be between 20°F and 30°F [11°C and 17°C]. Check for vibration, noise, and water leaks. If unit fails to operate, perform troubleshooting analysis (see Functional Troubleshooting).

  • Page 47: Unit Operating Conditions

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Unit Operating Conditions 024-060 Table 9: SY Coax Water Pressure Drop Pressure Drop (psi) Model 30°F* 50°F 70°F 90°F 110°F 2.20 3.00 SY*024 4.50 6.00 2.80 3.80 SY*030 5.60 7.50 3.40 4.50 SY*036 6.80 9.00 4.25...
  • Page 48 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Unit Operating Conditions 024-060 Operating Pressure/Temperature tables include the following notes: Airflow is at nominal (rated) conditions Entering air is based upon 70°F [21°C] DB in heating and 80/67°F [27/19°C] in cooling Subcooling is based upon head pressure at compressor service port Cooling air and water values can vary greatly with changes in humidity level Table 10: SY Series Typical Unit Operating Pressures and Temperatures SY*024...
  • Page 49 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Unit Operating Conditions 024-060 SY*036 Full Load Cooling - without HWG active Full Load Heating - without HWG active Entering Water Discharge Suction Water Discharge Suction Water Superheat Subcooling Temp Superheat Subcooling Temp Water Flow Pressure...
  • Page 50 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Unit Operating Conditions 024-060 SY*048 Full Load Cooling - without HWG active Full Load Heating - without HWG active Entering Water Discharge Suction Water Discharge Suction Water Superheat Subcooling Temp Superheat Subcooling Temp Water Flow Pressure...

  • Page 51: Preventive Maintenance

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Preventive Maintenance 024-060 WATER COIL MAINTENANCE COMPRESSOR (WATER LOOP APPLICATIONS) Conduct annual amperage checks to ensure that amp draw is no more than 10% greater than Generally water coil maintenance is not needed for indicated on the serial dataplate.

  • Page 52: Functional Troubleshooting

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Functional Troubleshooting 024-060 Fault Htg Clg Possible Cause Solution Check line voltage circuit breaker and disconnect. Check for line voltage between L1 and L2 on the contactor. Main power problems Green Status LED Off Check for 24 VAC between R and C on CXM2/DXM2.5.
  • Page 53 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Functional Troubleshooting 024-060 Table continued from previous page. Fault Htg Clg Possible Cause Solution Check power supply and 24 VAC voltage before and during operation. Check power supply wire size. Under Voltage Check compressor starting. Need hard start kit? Over/Under Voltage Code 7 Check 24 VAC and unit transformer.

  • Page 54: Dxm2.5 Functional Troubleshooting Flow Chart

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Actual area is 7.25” w x 8.875”h Models: Guides indicate .125” bleed all around DXM2.5 Functional Troubleshooting Flow Chart 024-060 DXM2.5 Functional Start Troubleshooting Flow Chart Did Unit Check Main Attempt to power (see power Start? problems) Did Unit...

  • Page 55: Performance Troubleshooting

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Performance Troubleshooting 024-060 Symptom Htg Clg Possible Cause Solution Dirty filter Replace or clean. Check for dirty air filter and clean or replace. Reduced or no airflow in heating Check fan motor operation and airflow restrictions. Too high of external static? Check static vs.
  • Page 56 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Performance Troubleshooting 024-060 Table continued from previous page. Symptom Htg Clg Possible Cause Solution Thermostat wiring Check G wiring at heat pump. Jumper G and R for fan operation. Jumper G and R for fan operation. Check for line voltage across blower Fan motor relay relay contacts.

  • Page 57: Startup Log Sheet

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Startup Log Sheet Startup Log Sheet 024-060 Models: Small Packaged Units Ty, TZ 7300 S.W. 44th Street, Oklahoma City, OK 73179 • Phone: 405.745-6000 Installer: Complete Unit and System Checkout and follow Unit Startup Procedures in the IOM. Use this form to record unit information, temperatures, and pressures during startup.

  • Page 58: Functional Troubleshooting Form

    Model Number: ________________________ Serial Number: ________________________ TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Date: ________________________ Packaged Unit Refrigeration Schematic Customer: _____________________________________ Antifreeze: ________________________ Models: Functional Troubleshooting Form Model#: ________________________ Serial#: ________________ Loop type: _______________ 024-060 Complaint: ________________________________________________________________________ HEATING CYCLE ANALYSIS - °F SUCTION COIL...

  • Page 59: Warranty (U.s. And Canada)

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Warranty (U.S. and Canada) 024-060 w w w. c l i m a t e m a s t e r. c o m C r e a t e d : J a n u a r y 1 8 , 2 0 2 4 PA G E : 5 9...

  • Page 60: Warranty (International)

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Warranty (International) 024-060 PA G E : 6 0 C r e a t e d : J a n u a r y 1 8 , 2 0 2 4 w w w. c l i m a t e m a s t e r. c o m...
  • Page 61 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Notes 024-060 w w w. c l i m a t e m a s t e r. c o m C r e a t e d : J a n u a r y 1 8 , 2 0 2 4 PA G E : 6 1...
  • Page 62 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Notes 024-060 PA G E : 6 2 C r e a t e d : J a n u a r y 1 8 , 2 0 2 4 w w w. c l i m a t e m a s t e r. c o m...
  • Page 63 TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Notes 024-060 w w w. c l i m a t e m a s t e r. c o m C r e a t e d : J a n u a r y 1 8 , 2 0 2 4 PA G E : 6 3...

  • Page 64: Revision History

    TranquiliTy® 24 (Sy) VErSaTilE SEriES– iOM Models: Revision History 024-060 Date Item Action 01/18/24 Created 7300 SW 44th St. | Oklahoma City, OK 73179 *97B0075N33* Phone: 405.745.6000 www.climatemaster.com ClimateMaster works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice and may not be as described herein.
