70mm

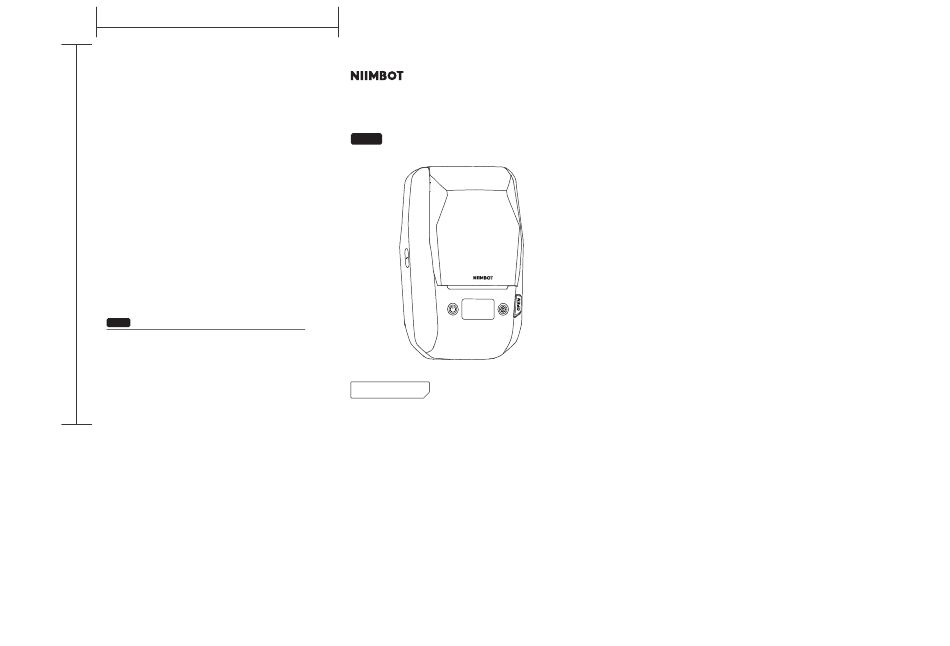

Quick Start Guide

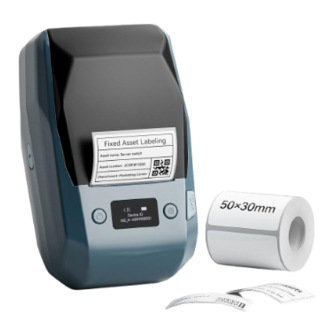

Smart
Label Printer
110mm
Notice:
If the device cannot be turned on, please charge for one hour.
Wuhan Jingchen Intelligent ldentificationTechnology Co., Ltd.
Support Email : service@niimbot.com
Official Website : www.niimbot.net
Office Address : Creative Workshop No. 5, Creative World, Yezhihu
West Road, Hongshan District, Wuhan, China
Production Address : 3rd Floor, Building 1 Workshop, Building 1 Spare
Warehouse, Linkong Economic Demonstration Industrial Park,
Hengdian Street, Huangpi District, Wuhan, China
NIIMBOT M2_H
© 2022 NIIMBOT. All rights reserved.
NIIMBOT is a brand under Wuhan Jingchen Intelligent ldentification Technology Ltd.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for NIIMBOT M2 H
Summary of Contents for NIIMBOT M2 H
- Page 1 Production Address : 3rd Floor, Building 1 Workshop, Building 1 Spare Warehouse, Linkong Economic Demonstration Industrial Park, Hengdian Street, Huangpi District, Wuhan, China NIIMBOT M2_H © 2022 NIIMBOT. All rights reserved. NIIMBOT is a brand under Wuhan Jingchen Intelligent ldentification Technology Ltd.
- Page 2 Production Address : 3rd Floor, Building 1 Workshop, Building 1 Spare Warehouse, Linkong Economic Demonstration Industrial Park, Hengdian Street, Huangpi District, Wuhan, China NIIMBOT M2_H © 2022 NIIMBOT. All rights reserved. NIIMBOT is a brand under Wuhan Jingchen Intelligent ldentification Technology Ltd.
-
Page 3: Package Contents
Package Contents Smart Label Printer *1 USB Type-C Cable *1 Thermal Transfer Ribbon *1 Product Manual *1... -
Page 4: Specifications
01 · 02 Specifications Product Label Printer Model NIIMBOT M2_H Dimensions 108*178*74mm Weight 764g Charging Time 3 - 4 hours Input 5V DC, 2A Thermal Transfer Battery Capacity 2000mAh Printing Method Printing Printing Printing Width 300dpi 20-50mm Resolution Connectivity Bluetooth、Type-C... -
Page 5: Product Description
Product Description 03-1 Label Printer Monitor Screen Paper Blade Charging Port Open Cover Power/Menu Paper Feed/Select 03-2 The Carbon Ribbon Parts Ribbon Cassette Unlock Switch Ribbon Cassette... - Page 6 03 · 04 Operation Instruction 04-1 Loading Paper Open Compartment Button Press the Open Compartment Button. Print Side Fit the label paper into the compartment with the print side facing down. Adjust the paper guide to insert the label paper.
- Page 7 Label Paper Pull the label paper out of the paper compartment and close the compartment cover. 04-2 Carbon Ribbon Installation Instructions Carbon Ribbon Cartridge Unlock Switch Carbon Ribbon Cartridge Unlock Switch...
- Page 8 05 · 06 Carbon Ribbon Cartridge Unlock Switch Insert the carbon ribbon cartridge, holding it with one hand while securing the lock with the other.
- Page 9 04-3 Software Download 01.Download the NIIMBOT APP Before using the printer, please install the NIIMBOT app from Google Play or the App Store. NIIMBOT Design & Print APP easy to download and use More information available on the NIIMBOT app.
-
Page 10: Special Notes
After downing the APP, make sure your phone’s Bluetooth is on. Note: For Android phones, location permission must be granted. 8:30 Turn on Bluetooth NIIMBOT Open the APP, search and connect to the device through Bluetooth. Notice: If a PIN code is required, input 0000 or 1234. -
Page 11: The Control Panel
The Control Panel 05-1 Interface Description Bluetooth Connection Status Information Display Power Level Paper Type USB Connection Status Device ID M2_H-AB01000001 Crack Label Connected Four-Grid Display Black Label TRN Label Blink While Charging Black Mark Gap Paper Connected to PC Paper Types Crack Label: There is a gap between two label papers. - Page 12 09 · 10 Power/Menu Paper Feed/Select 05-2 Operation Instructions 1.The Power/Menu Button: Menu Selection. 2.The Paper Feed/Select Button: Function Selection. 04-3 Function Description Main Menu Secondary Menu Tertiary Menu Function Description Calibrate when encountering Paper Calibration —— —— paper feed issues. Print Density 1/2/ 3/4/5 ——...
- Page 13 Main Menu Secondary Menu Tertiary Menu Function Description Crack Label Paper Types Select the type of label paper Advanced Black Label Settings in use TRN Label Black Mark Restore to factory Select and restore to factory —— default settings default settings...
-
Page 14: Safety Precautions
11 · 12 Safety Precautions Please read all the instructions and warnings in this manual carefully before using this product to ensure the proper functioning of the device and your safety. *Warnings Don't disassemble the product Do not wipe the product with Do not use the product without authorization. - Page 15 Additionally, NIIMBOT may not be able to provide support for issues related to products obtained through unauthorized channels.
- Page 16 13 · 14 Related Statements FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 17 EU member states. This device can be used in European Union. Hereby, [Wuhan Jingchen Intelligent Identifification Technology Co., Ltd.] declares that the radio equipment type [NIIMBOT M2_H] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:http://www.niimbot.com.
- Page 18 13 · 14 L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L' appareil ne doit pas produire de brouillage; (2) L' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' en compromettre le fonctionnement.
