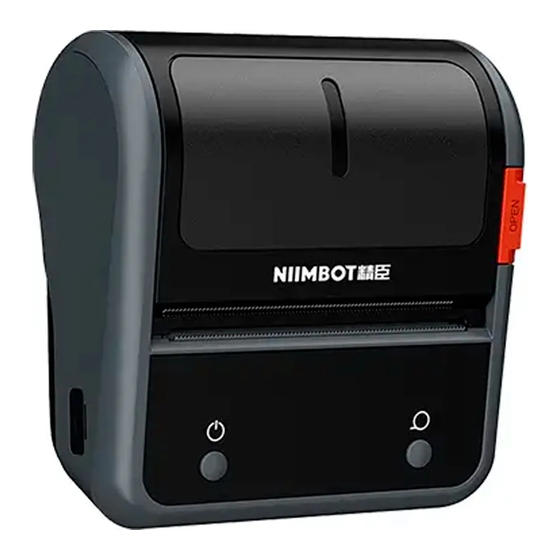

NIIMBOT B3S Quick Start Manual

Smart label printer
Hide thumbs Also See for B3S:
Table of Contents

Advertisement

Quick Links

Label Printer
Smart
Quick Start Guide
NIIMBOT B3S
Wuhan Jingchen Intelligent ldentificationTechnology Co., Ltd.
Support Email : service@niimbot.com
Official Website : www.niimbot.net
Office Address :Creative Workshop No. 5, Creative World,Yezhihu West
Road,Hondshan District,Wuhan,China
Production Address : No. 1 Tianyang Road, Chuanlong Avenue, Hengdian
Street, Huangpi District, Wuhan, China
© 2022 NIIMBOT. All rights reserved.
NIIMBOT is a brand under Wuhan Jingchen Intelligent ldentification Technology Ltd.

Advertisement

Table of Contents
loading

Related Manuals for NIIMBOT B3S

Summary of Contents for NIIMBOT B3S

  • Page 1 Office Address :Creative Workshop No. 5, Creative World,Yezhihu West Road,Hondshan District,Wuhan,China Production Address : No. 1 Tianyang Road, Chuanlong Avenue, Hengdian Street, Huangpi District, Wuhan, China © 2022 NIIMBOT. All rights reserved. NIIMBOT is a brand under Wuhan Jingchen Intelligent ldentification Technology Ltd.

  • Page 2: Table Of Contents

    CONTENTS Package Contents Installation Basic Functions and Settings Installing App Connecting and Printing Basic Functions Specifications Safety Precautions Related statements...

  • Page 3: Package Contents

    01 · 02 Package Contents Smart Label Printer *1 Label Paper Roll *1 USB Type-C Cable *1 Quick Start Guide *1...

  • Page 4: Installation

    Installation Tear off the seal on the label paper. Paper Compartment Open Button Press down the Paper Compartment Open Button to open the paper compartment.
  • Page 5 03 · 04 Spindle Paper Compartment Baffle Toggle the spindle to the “open” position as the arrow sign indicates. Paper Blade Print Head Paper Compartment Scale Slide the paper compartment baffle to the correct scale according to the width of the paper roll and toggle the spindle towards the blade.
  • Page 6 Print Side Fit the paper roll into the paper compartment and make sure the print side faces the print head. Pull a certain length of paper out from the paper exit and then close the paper compartment cover. Distinguish the sides of the paper roll. It will not print if the paper roll is reversed.

  • Page 7: Basic Functions And Settings

    Power/Setting button for 2 seconds to power on the device and the monitor screen will display the home interface. Device ID B3S-AB09000001 2. Feeding Paper Press the Paper Exit/OK button and the device will roll out one stretch of paper.
  • Page 8 “The battery level is low. Please charge!” and will automatically power off in 10 seconds. The battery level is low. Please charge! 6. Bluetooth Connection When the Bluetooth is connected, the Bluetooth icon will be displayed in inverted white. Device ID B3S-AB09000001...
  • Page 9 When the device is connected with a power adapter, the power icon will be displayed as follows. Device ID B3S-AB09000001 8. Settings Press Power/Settings button at the home interface to enter the settings interface; continue to press the Power/Settings button to switch among 5 different setting interfaces, including “Density”/...
  • Page 10 Shutdown Time < 60 minutes > 4) Language is available in 2 types (Chinese/English). Language < English > 5) Press the “Paper Exit/OK” button to print the self-check page. The self-check page will include information of printer model, firmware version, hardware version, device serial number, etc. Self-check Page? 9.

  • Page 11: Installing App

    09 · 10 Installing App Before using the printer, please install the NIIMBOT app from Google Play or the App Store. NIIMBOT Design & Print APP easy to download and use More information available on the NIIMBOT app. Sign in to NIIMBOT...

  • Page 12: Connecting And Printing

    Connecting and Printing Open NIIMBOT app and turn on Bluetooth on your phone. 8:30 Turn on Bluetooth NIIMBOT On Home, tap Connect smart label printer. Then select device model. Notice: If a PIN code is required, input 0000 or 1234.

  • Page 13: Basic Functions

    11 · 12 Basic Functions Function Operation Switch on Hold down the Power button for three seconds. Hold down the Power button for three seconds when Switch off the device is on. Print history Press the right button while the device is powered on. While the device is powered on, press the left button to Print a test page switch to “Print Self-check Page”...

  • Page 14: Specifications

    Specifications Product Label Printer Model NIIMBOT B3S Dimensions 115.5*109.67*58.58mm Weight 317g Charging Time 5 - 6 hours Input 5V DC, 1A Battery Printing 2000mAh Thermal printing Capacity Method Printing Printing 203dpi 25-75mm Resolution Width Connectivity Bluetooth,Type-C Charge Type-C Operating Transmit Power 4dBm(Maximum) 5℃...

  • Page 15: Safety Precautions

    13 · 14 Safety Precautions Please read all the instructions and warnings in this manual carefully before using this product to ensure the proper functioning of the device and your safety. *Warnings Don't disassemble the product Do not wipe the product with Do not use the product without authorization.
  • Page 16 The battery contains special protection circuit and device, please do not disassemble the battery without authorization, otherwise it may cause a short circuit or leakage. If electrolyte gets into your eyes, flush with water immediately and seek medical help; Do not expose the product and the power adapter to high temperature or high humidity.

  • Page 17: Related Statements

    15 · 16 Related Statements FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 18 EU member states. This device can be used in European Union. Hereby, [Wuhan Jingchen Intelligent Identifification Technology Co., Ltd.] declares that the radio equipment type [NIIMBOT D11] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:http://www.niimbot.com.
  • Page 19 17 · 18 L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L' appareil ne doit pas produire de brouillage; (2) L' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' en compromettre le fonctionnement.
