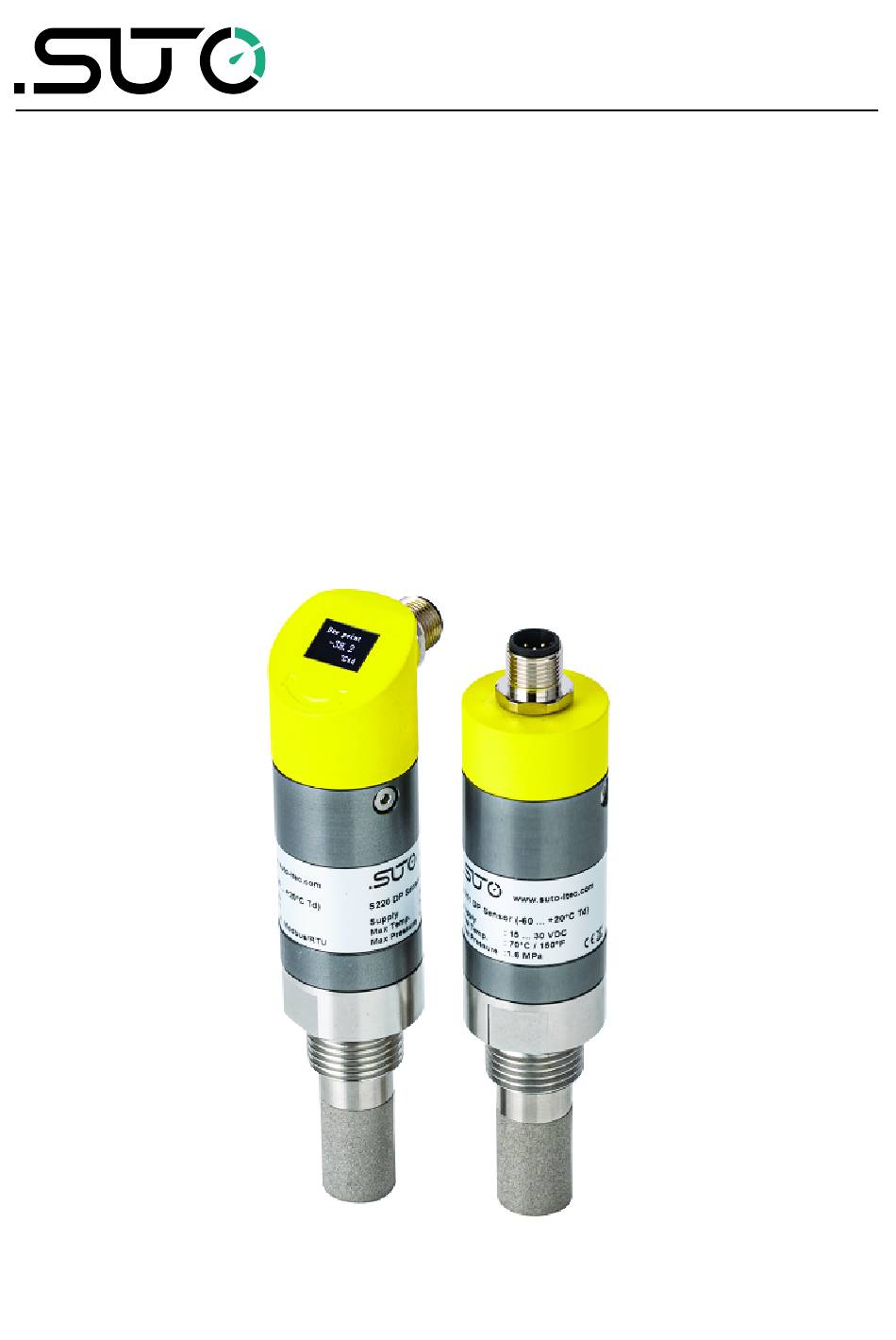

- Page 1 English Instruction and Operation Manual S211/S215/S220 Dew Point Transmitter...
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
7.2.1 Install with Measuring Chamber A699 3491......15 7.2.2 Install with By-pass Measuring Chamber A699 3493...16 7.2.3 Install without Measuring Chamber........18 7.3 Remove the Dew Point Transmitter........19 7.4 Electrical Connection ............20 7.5 Connection between S211/S215/S220 and Customer Equipment ....................21 8 Display (Option)................23 8.1 Display Information.............23 8.2 Compatibility..............23 8.3 Displayed Values..............23... -
Page 4: Safety Instructions
• Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance work. • Any electrical work on the system is only allowed by authorized qualified personal. S211/S215/S220... - Page 5 • Always use spanner to mount the product properly. ATTENTION! Measurement values can be affected by malfunction! The product must be installed properly and frequently maintained, otherwise it may lead to wrong measurement values, which can lead to wrong results. S211/S215/S220...
-
Page 6: Registered Trademarks
• Avoid direct UV and solar radiation during storage. • For the storage the humidity must be <95% rH, no condensation. 2 Registered Trademarks SUTO ® Registered trademark of SUTO iTEC MODBUS ® Registered trademark of the Modbus Organization, Hopkinton, USA HART ®... -
Page 7: Application
Remark: You can change the units using the Wireless DP Transmitter Adapter (optional) and the S4C-DP App. The S211 / S215 / S220 Dew Point Transmitters are mainly used in compressed air systems in the industrial environment, and not developed to be used in explosive areas. To use them in explosive areas, contact the manufacturer. -
Page 8: Technical Data
: 0 ... 90 % rH Temperature : -30 ... +70°C Pressure (option) : 0 ... 1.6 MPa Sensor S215 / S211: Polymer S220: QCM + Polymer Temperature sensor: Pt100 Pressure sensor: Piezo resistive type Measuring medium Air, Argon, O , CO →... -
Page 9: Electrical Data
Screwing thread G ½” thread (ISO 228/1) Weight 180 g * For CO , the measurement range of S211 is limited to -40°C Td ** The rotation force cannot exceed 3.0 N.m 5.2 Electrical Data Power supply 15 ... 30 VDC Current consumption 2-wire: 4 ... -
Page 10: Accuracy
In order to reach a fast response time please ensure a flow rate of 2... 5 l/min at the sensor tip. Note: If the Measuring chamber A699 3491 is used, this flow rate will be maintained by the chamber at a pressure > 0.3 MPa. S211/S215/S220... -
Page 11: Dimensional Drawing
6 Dimensional Drawing 6 Dimensional Drawing S211/S215/S220... - Page 12 6 Dimensional Drawing S211/S215/S220...
-
Page 13: Installation
No P/N Calibration certificate No P/N The 3 Dew Point Transmitters S211, S215 and S220 are offered in different versions. Depending on the version the options might be different, see table below for an overview about the different models, their signal output and available options. -
Page 14: Installation Requirements
• The device is for indoor use only! At an outdoor installation, it must be protected from solar radiation and rain. • It is strongly recommend not to install S211 / S215 / S220 permanently in a wet environment, which usually exists right after a compressor outlet. -
Page 15: Installation Procedure
3. Connect the measuring chamber to the compressed air system using a quick connector. Make sure the Dew Point Transmitter is screwed on the chamber before connecting. The measuring chamber will create a purge flow. S211/S215/S220... -
Page 16: Install With By-Pass Measuring Chamber A699 3493
Note: The full flow must pass the measuring chamber. Ensure a certain flow rate to get fast response time. 2. Connect the outlet of the chamber to your system using the 6 mm hose quick connector. See figure below for details. S211/S215/S220... - Page 17 If there is no pressure difference between P1 and P2, there will be no flow through the chamber and therefore the response time will be very slow or the device will not even respond at all to the dew point changes. S211/S215/S220...
-
Page 18: Install Without Measuring Chamber
• Check the size of the nozzle and make sure that no less than 1/3 of the sensor tip is inside of the pipe. • The inner thread of the nozzle must be G 1/2”. S211/S215/S220... -
Page 19: Remove The Dew Point Transmitter
NPT 1/2" process connection. 7.3 Remove the Dew Point Transmitter Unscrew the device off the measurement chamber or from the nozzle. Please make sure that the system is pressure-less before the Dew Point Transmitter is removed. S211/S215/S220... -
Page 20: Electrical Connection
Dew Point Transmitter versions: S699 3215 / S699 3211 / S699 3220 / S699 4215 / S699 4211/ S699 4220 Output signal: 3-wire analog output and Modbus/RTU Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 4 … 20 mA Modbus/RTU Modbus/RTU Brown White Blue Black Gray S211/S215/S220... -
Page 21: Connection Between S211/S215/S220 And Customer Equipment
7.5 Connection between S211/S215/S220 and Customer Equipment This section provides figures to show how outputs supported by the S211/S215/S220 connect with the customer equipment. In the following figures, the SUTO instrument indicates the S211/S215/S220. 2-wire analog output 3-wire analog output... - Page 22 7 Installation 3-wire analog and Modbus/RTU outputs Modbus/RTU output S211/S215/S220...
-
Page 23: Display (Option)
8 Display (Option) 8.1 Display Information The dew point transmitter series S211, S215 and S220 can be equipped with an optional display directly mounted on the sensor. The display shows the live values of Dew point, Temperature, Humidity and Pressure (if the dew point transmitter with a pressure sensor). -
Page 24: Signal Outputs
• The 2-wire analog output is a current loop (loop-powered sensor). • The 3-wire analog output is an active current output. 9.1.1 Scaling The following table shows the standard scaling of the analog output. Type Scaling S211 4 mA = -60°C Td 20 mA = +20°C Td S215 4 mA = -20°C Td... - Page 25 For example, if the main system follows the LSB first order: When the 4-byte floating number, in the order of Byte1-Byte0- Byte3-Byte2, is received from the slave (sensor), the master must change the byte order to Byte0-Byte1-Byte2-Byte3 for the correct display of the value. S211/S215/S220...
-
Page 26: Holding Register Table For Modbus/Rtu
Unit+Resolution+Data type of INT16U 2-Byte Pressure 2203 Unit+Resolution+Data type of INT16U 2-Byte Temperature 2300 Status INT16U 2-Byte 2301 Channel Value of FLOAT 4-Byte Dew point 2303 Channel Value of FLOAT 4-Byte Alternative humidity 2305 Channel Value of FLOAT 4-Byte S211/S215/S220... - Page 27 1: Sensor settings have been changed since last reading from the master 0: The 1st measuring channel that follows the Status channel (addressed 2301) is working properly. 1: This measuring channel is not working properly. S211/S215/S220...
-
Page 28: Connect Modbus/Rtu Devices To A Master
9.2.2 Connect Modbus/RTU Devices to a Master Sensors and devices with a Modbus/RTU output can be connected to a Modbus master device. This master can be either SUTO displays and gateways or any third-party Modbus/RTU master. See below specifications of the Modbus/RTU connections. - Page 29 (A553 0123). • The shield must be connected at one end to the master GND connection. • At the end of the bus, a 120 Ohm resistor should be placed a termination resistor. See the below picture for details. S211/S215/S220...
- Page 30 9 Signal Outputs 9.2.2.3 Daisy-Chain using RS-485 Splitter SUTO devices with M12 connectors can be easily connected in a Modbus/RTU daisy-chain using a M12 RS-485 splitter (A554 3310). Furthermore this allows to easily place the M12 termination resistor (C219 0055) at the last splitter in the bus-chain.
- Page 31 Other connection topologies are not recommended and should be avoided. Avoid a connection of slaves to the master in ring or star topology. Avoid a connection of Slaves to the master in ring or star topology. Avoid a star topology Avoid a ring topology S211/S215/S220...
-
Page 32: Optional Accessories
10.2 Wireless DP Transmitter Adapter The Wireless DP Transmitter Adapter provides a wireless interface between the mobile phone App S4C-DP and the S211/S215/S220. With this DP Adapter, you can manage the S211/S215/S220 settings through the free mobile phone App S4C-DP. For details, see Wireless DP Transmitter Adapter instruction manual. -
Page 33: Calibration
The device, the accessories and its packings must be disposed according to your local statutory requirements. The dispose can also be carried by the manufacturer of the product, for this please contact the manufacturer. S211/S215/S220... - Page 34 S211/S215/S220...
- Page 35 S211/S215/S220...
- Page 36 SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Grißheimer Weg 21 Room 10, 6/F, Block B, Cambridge Plaza D-79423 Heitersheim 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7634 50488 00 Tel: +852 2328 9782 Email: sales@suto-itec.com...
