Summary of Contents for SUTO S020

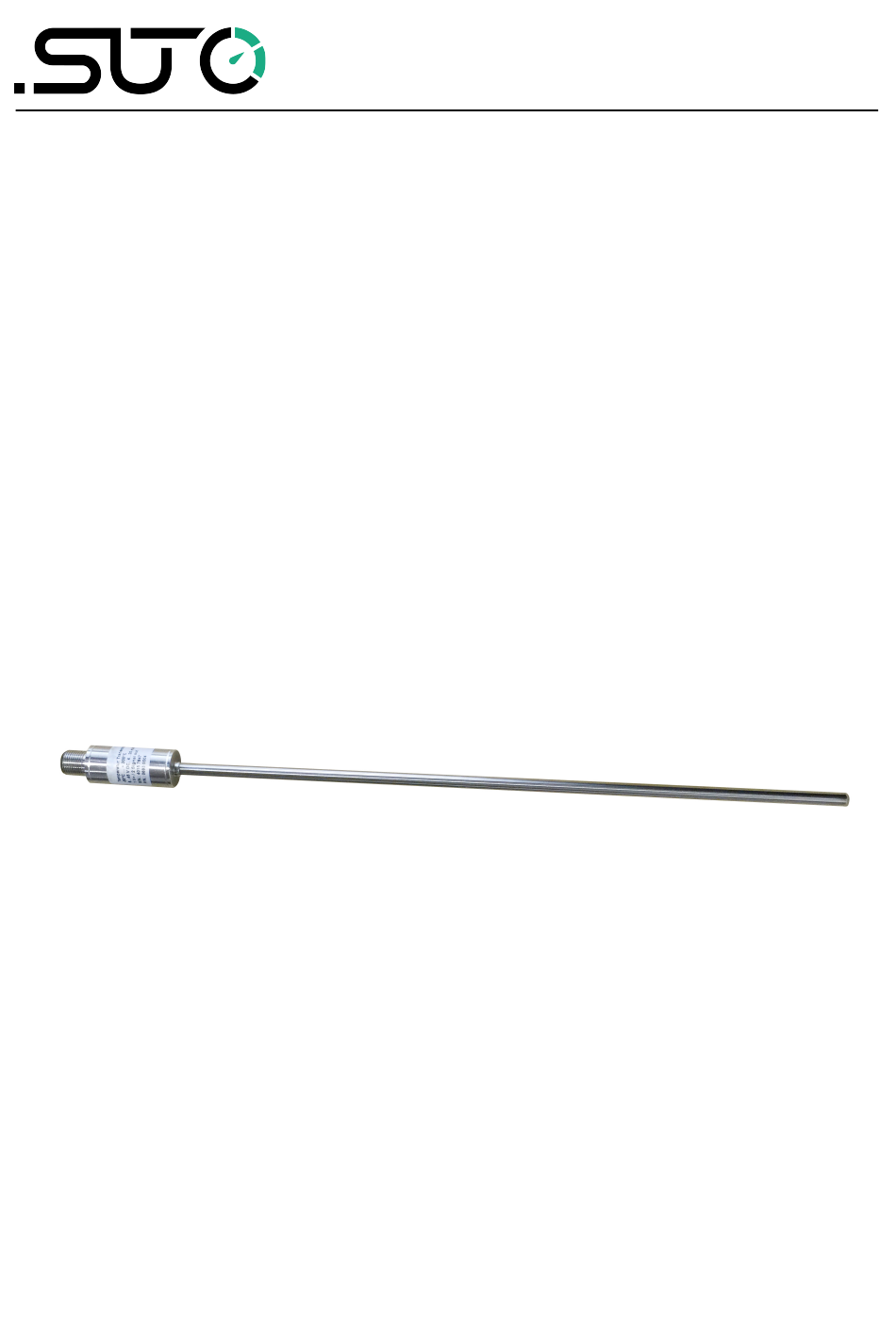

- Page 1 English Instruction and Operation Manual S020 Temperature Transmitter...
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
6 Dimensional Drawing..............8 7 Determination of the Installation Point...........8 8 Installation ................9 8.1 Installation Requirements............9 8.2 Installation Procedure ............9 8.3 Electrical Connection ............10 9 Signal Outputs................11 10 Optional Accessories..............11 10.1 Compression Fitting ............11 11 Calibration................11 12 Maintenance................11 13 Disposal or Waste..............11 S020... -
Page 4: Safety Instructions
• Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance work. • Any electrical work on the system is only allowed by authorized qualified personal. S020... - Page 5 • Do not exceed the maximum operation temperature at the sensors tip. • Avoid condensation on the sensor element as this will affect the accuracy enormously. S020...
-
Page 6: Registered Trademarks
• Avoid direct UV and solar radiation during storage. • For the storage the humidity has to be <90%, no condensation. 2 Registered Trademarks SUTO ® Registered trademark of SUTO iTEC MODBUS ® Registered trademark of the Modbus Organization, Hopkinton, USA S020... -
Page 7: Application
Application 3 Application The S020 Temperature Transmitter is a sensor which is designed to measure the temperature of liquid, vapour, compressed air and gases within the permissible operating parameters. These parameters can be found in the Technical Data section. The S020 Temperature Transmitter is not developed to be used in explosive areas. -
Page 8: Output Signals
• The Temperature Transmitter is for indoor use only! At an outdoor installation, the Temperature Transmitter must be protected from solar radiation and rain. • It is strongly recommend not to install the Temperature Transmitter permanently in wet environment as it exists usually right after a compressor outlet. S020... -
Page 9: Installation
8 Installation Please make sure that all components listed below are included in your package. Qty Description Item No. S020 Temperature Transmitter S693 0003/ S693 0004 Depending on orders: Plug: C219 0059 M12 plug or M12 cable Cable: A553 0104/A553 0105... -
Page 10: Electrical Connection
The Temperature Transmitter is equipped with a M12 connector plug. The cable is connected to the transmitter using the M12 connector. Please refer to connection diagram below. ATTENTION! Do not screw the M12 plug using force. Otherwise, it may damage the connecting pins. S020... -
Page 11: Signal Outputs
The Temperature Transmitter, the accessories and its packings must be disposed according to your local statutory requirements. The dispose can also be carried by the manufacturer of the product, for this please contact the manufacturer. S020... - Page 12 SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Grißheimer Weg 21 Room 10, 6/F, Block B, Cambridge Plaza D-79423 Heitersheim 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7634 50488 00 Tel: +852 2328 9782 Email: sales@suto-itec.com...
