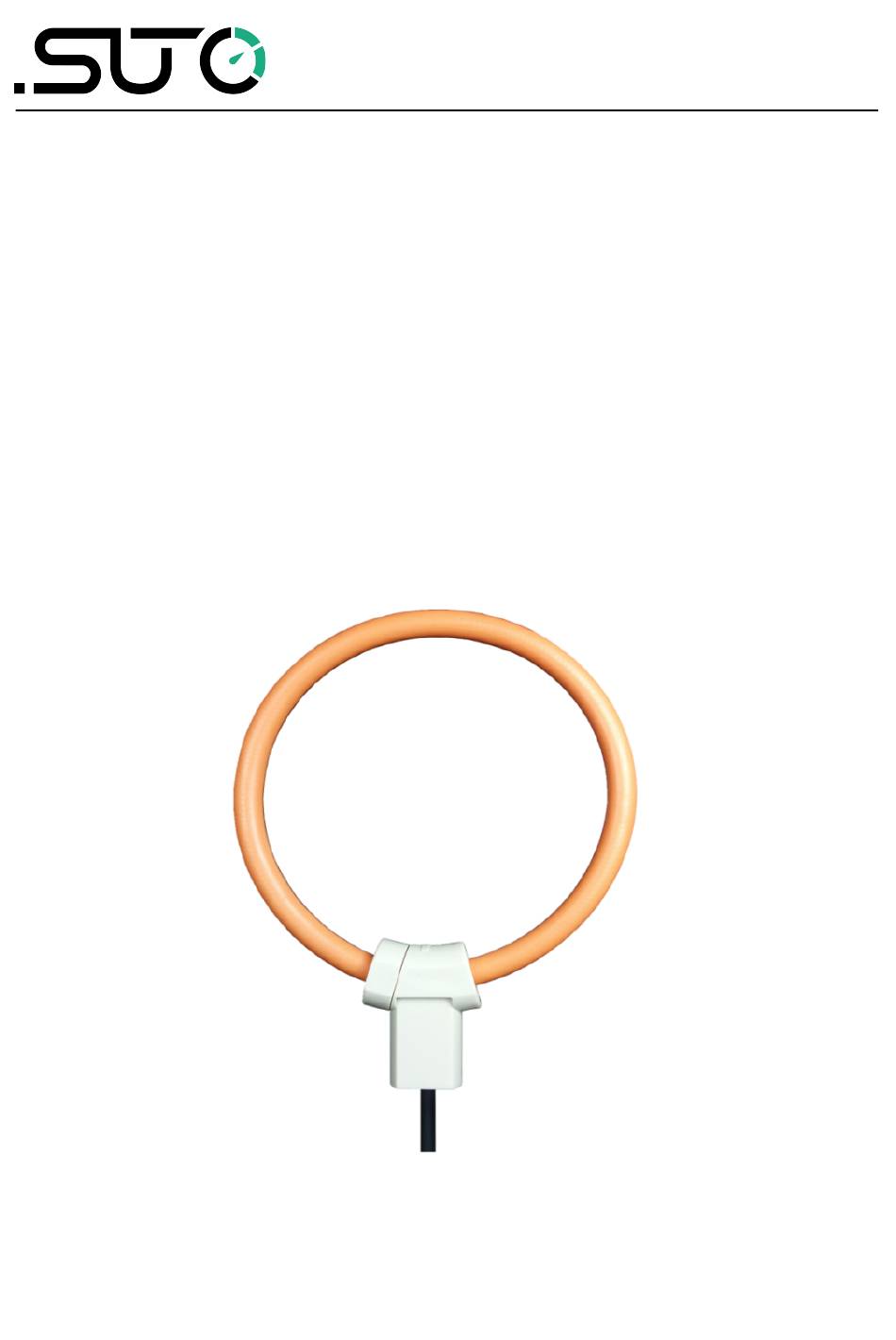

- Page 1 English Instruction and Operation Manual S030 Electrical Current Transmitter...
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
1 Safety Instructions..............4 2 Registered Trademarks..............5 3 Application.................6 4 Features..................6 5 Technical Data................7 5.1 General................7 5.2 Electrical Data...............7 5.3 Output Signals..............7 5.4 Accuracy ................7 6 Installation ................8 6.1 Installation................8 6.2 Electrical Connection..............9 7 Signal Outputs................9 8 Maintenance................9 9 Disposal or Waste..............10 S030... -
Page 4: Safety Instructions
• Do not exceed the permitted operating parameters. • Make sure the product is operated in its permitted limitations. • Do not exceed or undercut the permitted storage and operation temperature. S030... -
Page 5: Registered Trademarks
• Avoid direct UV and solar radiation during storage. • For the storage the humidity has to be <90%, no condensation. 2 Registered Trademarks SUTO ® Registered trademark of SUTO iTEC MODBUS ® Registered trademark of the Modbus Organization, Hopkinton, USA HART ®... -
Page 6: Application
These parameters can be found in the technical data section. The S030 Electrical Current Transmitter is not developed to be used in explosive areas. For the use in explosive areas please contact the manufacturer. -
Page 7: Technical Data
5.2 Electrical Data Power supply 21 VDC ... 27 VDC 5.3 Output Signals Analogue output 4 ... 20 mA DC equal to 0 ... max. AC current Output ripple factor 5.4 Accuracy Accuracy 0.5% of reading 0.25% of range S030... -
Page 8: Installation
ATTENTION! Wrong measurement is possible if the transmitter is not installed correctly. The S030 is for indoor use only! At an outdoor installation, the transmitter must be protected from solar radiation and rain. 6.1 Installation The following steps explain the procedure of an appropriate installation. -
Page 9: Electrical Connection
3 or 4 of the S551. 7 Signal Outputs The S030 Electrical Current Transmitter has an analog output range of 4 mA ... 20 mA. This output is scaled to: • 4 mA = 0 A •... -
Page 10: Disposal Or Waste
The transmitter, accessories and its packings must be disposed according to your local statutory requirements. The dispose can also be carried by the manufacturer of the product. For more information, please contact the manufacturer. S030... - Page 11 S030...
- Page 12 SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Grißheimer Weg 21 Room 10, 6/F, Block B, Cambridge Plaza D-79423 Heitersheim 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7634 50488 00 Tel: +852 2328 9782 Email: sales@suto-itec.com...
