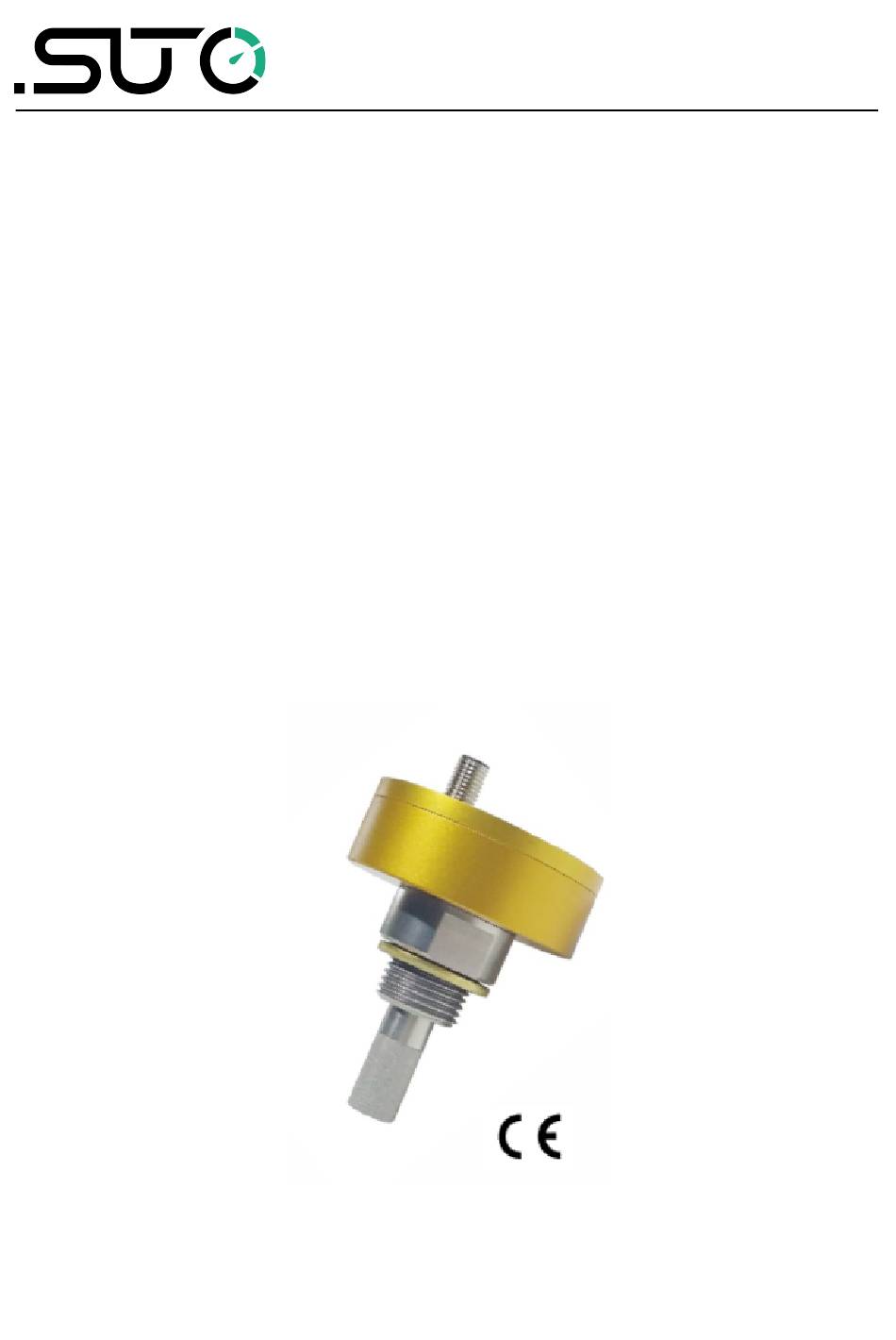

- Page 1 English Instruction and Operation Manual S217 OEM IO-Link Compact Dew Point Transmitter...
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
8.1 TD..................10 8.2 Communication..............10 8.3 Features................10 8.4 Process Data ..............11 8.5 ariables................11 8.6 Events................13 8.7 Error Types.................14 9 Installation ................15 9.1 Installation requirements............15 9.2 Installation procedure ............15 9.3 Order information..............19 10 Calibration................19 11 Maintenance................19 12 Disposal or waste..............20 S217 OEM IO-Link... -
Page 4: Safety Instructions
• Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance work. • Any electrical work on the system is only allowed by authorized qualified personal. S217 OEM IO-Link... - Page 5 • Please make sure that the storage temperature of the sensor is between -10 ... +50°C. • Avoid direct UV and solar radiation during storage. • For the storage the humidity must be <95% rH, no condensation. S217 OEM IO-Link...
-
Page 6: Registered Trademarks
Registered Trademark of the PROFIBUS Nutzerorganisation e.V., Germany 3 Application The SUTO S217 OEM IO-Link Compact Dew Point Transmitter provides reliable and long term stable dew point monitoring in industrial applications. The newly developed device features improved signal and stability in demanding industrial applications. -
Page 7: Technical Data
M12 connector, 5-pole (M12 plug included) Casing Process connection: stain-less steel Casing: Al alloy Classification IP65 Process connection G ½” thread (ISO 228/1) Sensor protection Stainless steel sinter filter pore size <30 µm According to IEC 61326-1 S217 OEM IO-Link... -
Page 8: Accuracy
5 Technical data 5.2 Accuracy Stated accuracy under following conditions: • Ambient / process temperature 23 ± 3°C • Ambient humidity <95% rH, no condensation • Airflow > 2 l/min at sensor tip 6 Dimensional drawing S217 OEM IO-Link... -
Page 9: Electrical Connection
7 Electrical connection 7 Electrical connection M12 connector Pin assignment Pin 1 Pin 2 Not used Pin 3 Pin 4 C/Q (IO-Link) Pin 5 Not used S217 OEM IO-Link... -
Page 10: Io-Link Interface
Vendor ID 1490 Vendor Name SUTO iTEC Vendor Text www.suto-itec.com Vendor URL www.suto-itec.com Device ID 1038 8.2 Communication IO-LINK Revision V1.1 Bitrate COM1 Minimum Cycle 40 ms Time SIO Mode Supported 8.3 Features Block parametrization Data storage S217 OEM IO-Link... -
Page 11: Process Data
Link 1.1 system test command 240, Event 8DFE will appear (241) IO- Link 1.1 system test command 241, Event 8DFE will disappear (242) IO- Link 1.1 system test command 242, Event 8DFF will appear (243) IO- Link 1.1 S217 OEM IO-Link... - Page 12 OUT 2 Sub 0 UInte 8bit (4) OFF (2) ON behavio gerT (4) OFF ur in case of fault Temperat Selectio Sub 0 UInte 8bit (1) °C (1) °C ure unit n of the gerT (2) °F S217 OEM IO-Link...
-
Page 13: Events
Event disappears by setting index 2 to value 241 36351 d / 8D Test Event 2 Warning Event appears by setting index 2 to value 242, FF h Event disappears by setting index 2 to value 243 S217 OEM IO-Link... -
Page 14: Error Types
32821 d / 80 35 h Function not available Written command is not supported by the device application 32898 d / 80 82 h Application not ready Read or write service is refused due to a temporarily unavailable application S217 OEM IO-Link... -
Page 15: Installation
9 Installation Before installing the device, please make sure that all components listed below are included in your package. Description Item No. S217 OEM IO-Link Compact Model specific (See section 9.3.) Dew Point Transmitter M12 Plug No P/N Instruction manual... - Page 16 Note: The full flow must pass the measuring chamber. Ensure a certain flow rate to get fast response time. 2. Connect the outlet of the chamber to your system using the 6 mm hose quick connector. See below figure for details. S217 OEM IO-Link...
- Page 17 If there is no pressure difference between P1 and P2, there will be no flow through the chamber and therefore the response time will be very slow or the device will not even respond at all to the dew point changes. S217 OEM IO-Link...
- Page 18 >30°. Removal of the device To remove the device unscrew the device from the measurement chamber or from the nozzle. Please observe that the system is pressureless when the device is removed. S217 OEM IO-Link...
-
Page 19: Order Information
Please observe from time to time the sinter cap. If it appears to be dirty, it is recommended to replace it for this please contact the manufacturer. ATTENTION! Contaminated filters can lead to longer response time and to wrong measurements. S217 OEM IO-Link... -
Page 20: Disposal Or Waste
The dispose can also be carried by the manufacturer of the product, for this please contact the manufacturer. SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Grißheimer Weg 21 Room 10, 6/F, Block B, Cambridge Plaza D-79423 Heitersheim 188 San Wan Road, Sheung Shui, N.T.
