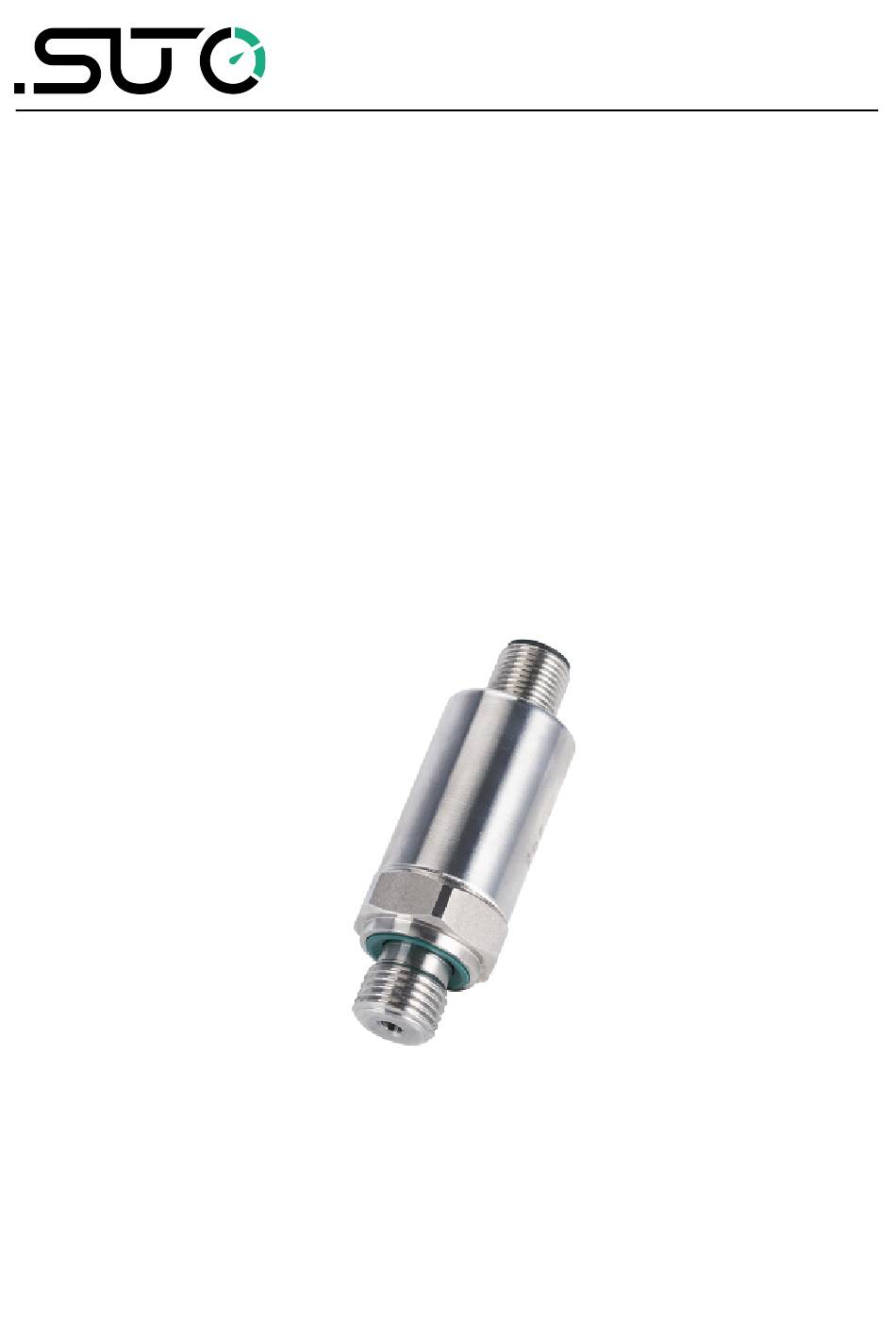

- Page 1 English Instruction and Operation Manual S010 Pressure Transmitter...
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
5 Technical data................8 5.2 General................8 5.3 Electrical data..............8 5.4 Output signals..............8 5.5 Accuracy ................9 6 Dimensional drawing..............9 7 Installation ................10 7.2 Installation Requirements............10 7.3 Installation Procedure............10 7.4 Electrical connection............11 8 Signal outputs................11 9 Calibration................11 10 Maintenance................12 11 Disposal or waste..............12 S010... -
Page 4: Safety Instructions
• Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance work. • Any electrical work on the system is only allowed by authorized qualified personal. S010... - Page 5 Measurement values can be affected by malfunction! The product must be installed properly and frequently maintained, otherwise it may lead to wrong measurement values, which can lead to wrong results. • Do not exceed the maximum operation temperature at the sensors tip. S010...
-
Page 6: Registered Trademarks
• Avoid direct UV and solar radiation during storage. • For the storage the humidity has to be <90%, no condensation. 2 Registered trademarks SUTO ® Registered trademark of SUTO iTEC MODBUS ® Registered trademark of the Modbus Organization, Hopkinton, USA HART ®... -
Page 7: Application
The S010 Pressure Transmitter can measure the following values: pressure in MPa. The S010 Pressure Transmitter is not developed to be used in explosive areas. For the use in explosive areas please contact the manufacturer. The S010 Pressure Transmitter is mainly used in compressed air systems in industrial environment. -
Page 8: Technical Data
M12, 4 pins Stability < ± 0.25% F.S. Vibration resistance IEC 60068-2-6 5 ... 2000Hz, 10 g Weight 70 g 5.3 Electrical data Power supply 24 VDC (12 ... 32 VDC) 5.4 Output signals Analogue output 4 ... 20 mA, 2-wire S010... -
Page 9: Accuracy
5 Technical data 5.5 Accuracy Accuracy ± 0.5% F.S. Repeatability ± 0.25% F.S. 6 Dimensional drawing S010... -
Page 10: Installation
7 Installation 7 Installation Please make sure that all components listed below are included in your package. Qty Description Item No. S010 Pressure Transmitter (1.6 MPa S694 1886/ (g) or S694 0356/ 4.0 MPa (g) or 0.16 MPa (a)) S694 3557/... -
Page 11: Electrical Connection
However it is recommended to calibrate the instrument at least once per year. The calibration is excluded from the instruments warranty. For this please contact the manufacturer. S010... -
Page 12: Maintenance
The dispose can also be carried by the manufacturer of the product, for this please contact the manufacturer. SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Grißheimer Weg 21 Room 10, 6/F, Block B, Cambridge Plaza D-79423 Heitersheim 188 San Wan Road, Sheung Shui, N.T.
