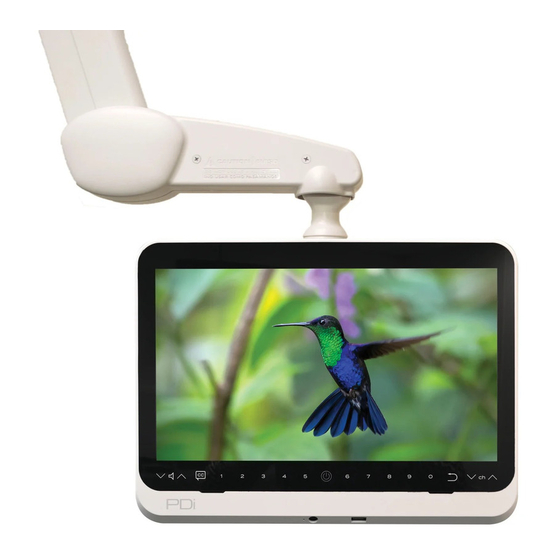

Arm mounted tv
Hide thumbs Also See for medTV16:

Advertisement

Quick Links

INTRODUCTION
This document provides the information to install any arm mounted PDi TV with top mount. These instructions
cover the standard design of the arm mounted PDi TV with top mount and any customizations incorporated
may not be specifically outlined in these instructions.
Note: For Rear Mounted TV's see the specific Installation Instruction for the mount.
SAFETY
1. Always wear safety glasses/goggles to prevent injury from debris.
2. Follow the installation/removal instructions for your existing products.
TOOLS REQUIRED
1. 3/16" hex wrench
2. Safety glasses/goggles
INSTALLATION
DANGER: ARM RECOIL HAZARD. The safety brake pin must remain
in the SAFETY BRAKE PIN HOLE whenever the television set is
removed from the arm or when the arm is removed from the wall
bracket to prevent the arm from springing open.
1. Remove PDi TV from the box. Be sure to save the foam inserts and the box as they will be needed if you
ever need to return your PDi TV.
Note: Store the monitor as shown when not mounted on the arm.
PDi Communication Systems, Inc. ▪ 40 Greenwood Ln ▪ Springboro, Ohio 45066 USA ▪
MODEL NUMBER:
Arm Mounted PDi TV
Installation Instructions
www.pdiarm.com
Document Number:
PD196-428R2
Page 1 of 2
▪ Phone 800.628.9870
and
www.mymedTV.com
