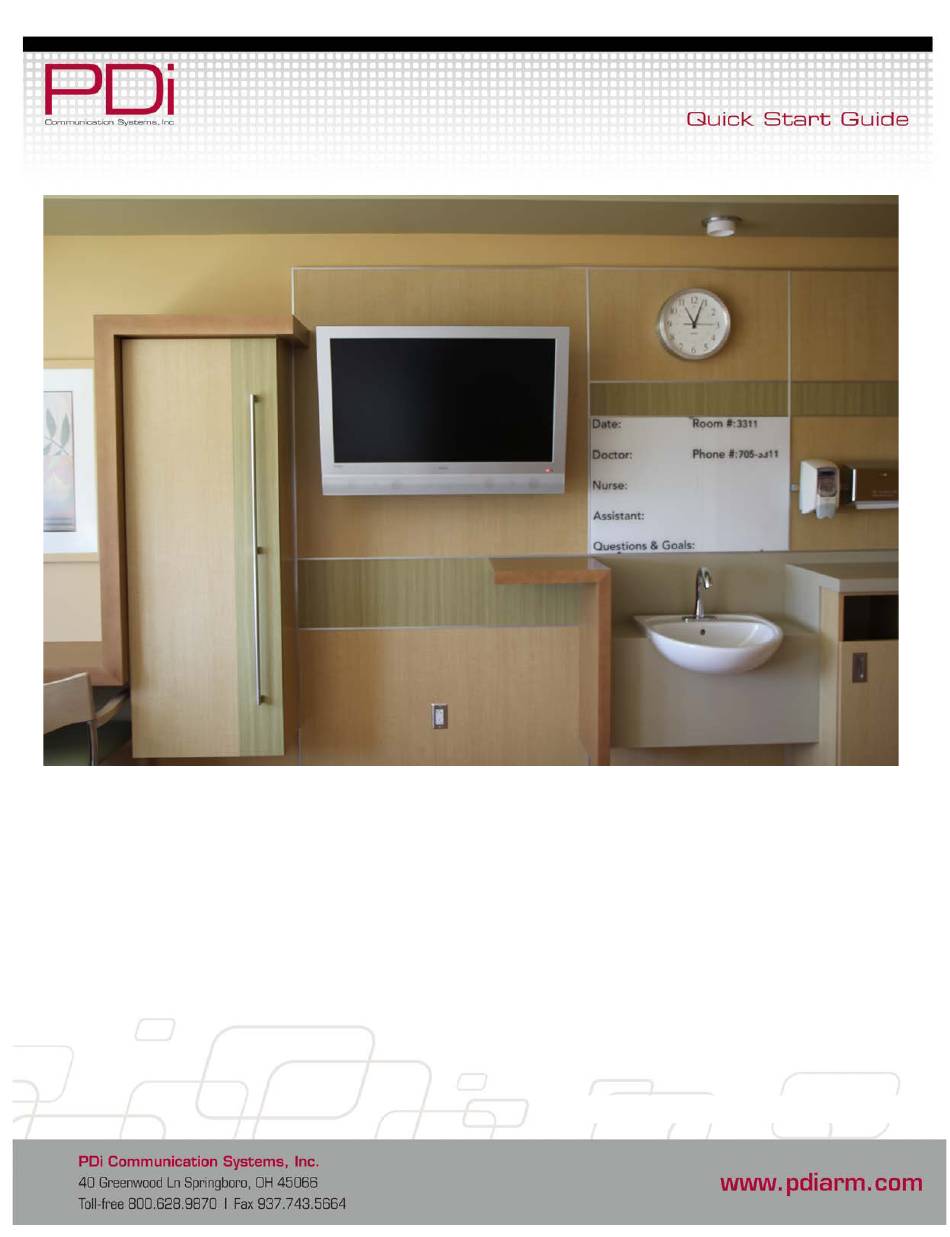

- Page 1 PDI-P26LCD, PDI-P32LCD PDI-P40LCD Healthcare-grade Televisions Document Number: PD196-145R3...
-
Page 2: Safety Instructions
WARNING: To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions. TVs can pose a striking hazard when mounted at an elevated position. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 3: Location Guidelines
The PDI-P26/P32/P40LCD TV mounts on the wall at the foot of a patient’s bed. Select a location that is near an AC wall outlet and that does not expose the TV to bright room lights or sunlight, if possible. The LCD TV also requires connection of both CATV cable signal and across-room wiring for the pillow speaker. - Page 4 Wall MOUNTING STANDARD WALL BRACKET for PDI-P26LCD TV The PDI-P26LCD TV is mounted to the wall with a PD168-103 mount (Not supplied with TV) or a PD168-203 mount (Not supplied with TV). The PD168-203 mount is a heavy duty mount and is to be used if a DVD or an IPT module is going to be mounted on the P26. A PD168-203 wall mount connects to a PD181-674 LCD mount.
-
Page 5: Wall Mounting For Pdi-P32Lcd Tv And Pdi-P40Lcd Tv
Wall Mounting for PDI-P32LCD TV and PDI-P40LCD TV The PDI-P32LCD and PDI-P40LCD TVs require a PD181-672 200mm to 100mm Adapter Plate (Not supplied with TV), a PD181-596 LCD Mounting Bracket (Not supplied with TV), and a PD181-674 HD Extended LCD Tilt Clevis (Not supplied with TV) to be mounted to the wall. - Page 6 Grounding of the Common will defeat the isolation circuitry of the TV and possibly expose the patient to harmful shock currents should a wiring fault occur. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
- Page 7 Service Levels Setup The PDI-P26/P32/P40LCD TV contains four separate service levels, allowing the hospital to offer basic and enhanced viewing. The current service level can be quickly determined by accessing the SETUP menu using the remote control. Service Level can be changed to any of the 4 levels at any time by entering the SETUP menu and changing the Service Level setting.
- Page 8 Press CH▲ or CH▼ to highlight the component you want to change. Press VOL◄ or VOL► to select Enabled or Disabled. Press SETUP to return to the previous menu. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
- Page 9 Press CH▲ to initiate Clone mode. A status message indicates Successful Saving of TV information to the USB. Remove the USB Disk from the TV. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
- Page 10 Press CH▲ to initiate Clone mode. TV will restart after restore is complete. Remove USB disk from the TV Verify correct setup of the TV. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
