PDI-P23LCDD TV Installation Guide
P23 Hospital Grade TV

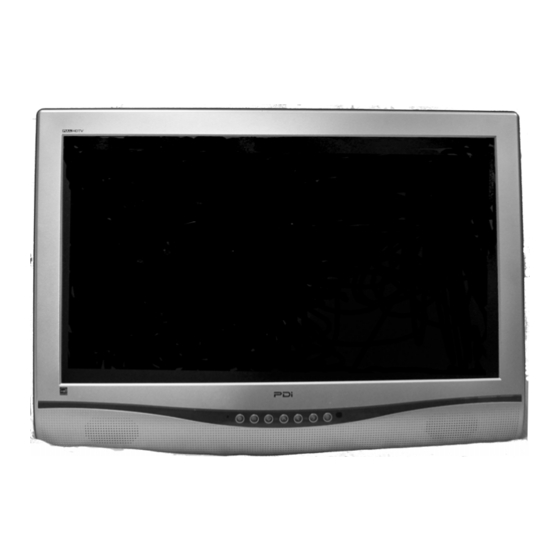

Model: PDI-P23LCDD-NK/NKP
Better Solutions Are Within Reach®
Document Number: PD196-158.DOC
INSTALLATION and OPERATING INSTRUCTIONS
Page 1 of 42

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDI-P23LCDD-NK and is the answer not in the manual?

Questions and answers

Summary of Contents for PDi PDI-P23LCDD-NK

  • Page 1 P23 Hospital Grade TV Model: PDI-P23LCDD-NK/NKP Communication Better Solutions Are Within Reach® Systems, Inc 40 Greenwood Lane Springboro, Ohio 45066 PH: 937-743-6010 FX: 937-743-5664 http://www.pdiarm.com PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 2: Warnings

    OVERHEAD FALLING HAZARD TV can pose a striking hazard when mounted at an elevated position. Use only PDI mounting brackets, support arms, and appropriate hardware to assure TV will not fall from the mounted position. Failure to do so may cause injury or death.
  • Page 3: Safety Instructions

    Use only PDI mounts and appropriate hardware. apparatus. Failure to do so could cause the set to fall and subsequent injury or death. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 4: Fcc, Copyright, Disclaimer, And Trademarks

    OSHPD (State of California Only) The combined weight of the PDI-P23LCDD TV and PDI wall mount is less than 20 pounds. At the time of this writing, the involvement of a written, submitted, reviewed, and approved plan by OSHPD is not required to install the PDI-P23LCDD TV in the state of California.
  • Page 5: Table Of Contents

    Channel to Other Source ............................34 Power On ARC Mode ..............................35 Standby Power................................35 On Screen Menu Language Selection........................35 Sources....................................35 Power On Source................................36 FM Radio ..................................36 Auto Program................................36 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 6 Restore Setting to TV...............................38 Information ..................................39 Firmware ..................................39 Appendix ....................................41 ARC adjustments ................................41 PC Analog/HDMI Picture and ............................41 Component Input Picture ..............................42 Limited Warranty.................................42 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 7: Product Accessories

    ¼” to 6-Pin Jumper Cable PD106-416 Programming Remote Control PD108-420 ¼” to ¼” Jumper Cable PD106-417 Patient Remote Control PD108-421 TV Stand PD133-645 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 8: Wall Mounting

    Jumper Cable) 5. The TV’s tilt can be adjusted by loosening both Pilfer Screws, adjusting tilt, and then tightening the screws. Figure 2 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 9: Across-Room Wiring

    Zenith, Philips, and RCA pillow speakers. Please refer to the Pillow Speakers section on page 11 for details. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 10: Connections

    Connection to Cable TV Coax. 16 PILLOW NOTE: See page 11 Pillow speaker port. NOTE: See page 11 before connecting 7 SVC Service port. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 11: Antenna "Ant" Connection

    NOTE: The TV is shipped from the factory with the switch in the OFF position. 2. Connect the pillow speaker to the PILLOW jack. 3. Operate the pillow speaker and verify correct control. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 12: Buttons On Tv

    Selects the mode to watch TV or use a connected 3 CC component. Sets the closed caption function. 7 Remote Control Sensor Accepts the IR signal from the remote control. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 13: Programming Remote Control

    Navigates teletext displays. CH ▲▼ buttons Teletext is not actively used in the Selects next channel. Also USA. used to navigate programming menus. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 14: Patient Remote Control

    TV in a two TV room. Insert a paperclip in this hole to select Bed A or Bed PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 15: Programming

    INSTALLATION and OPERATING INSTRUCTIONS Programming The PDI-P23LCDD TV is programmed by a series of menus that can be accessed with a programming remote, part number PD108-420. Access the menus by pressing SETUP on the remote. These menus allow you to add TV channels, adjust the picture and sound, setup external components, and change settings.
  • Page 16: Service Levels

    BASIC – This service level typically allows additional channels beyond those offered in the FREE level. PREMIUM – This is the highest service level with typically the most channels available for viewing. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 17: Picture

    Press ◄ or ► to set the desired number. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 18: Color Temperature

    PC Analog/HDMI Picture and Component Input Picture See page 41 for instructions on how to adjust the settings for these two menu items. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 19: Sound

    Last will cause the TV to be at the last volume setting before it was turned off. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 20: Internal Speaker Enabled

    Press ◄ or ► to select L+R, L+L, or R+R. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 21: Channels

    NOTE: Most hospitals use the Cable STD signal style. Now perform Auto Program or Add/Delete Channels to store channels in the TV’s memory. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 22: Auto Program

    NOTE: Digital channel auto programming may take longer than 10 minutes to complete. 10. Press the SETUP button to return to normal TV viewing. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 23: Add/Delete Channels

    If there are more analog channels to be added or deleted, repeat steps 6 through 8. For enabling or disabling digital channels, go to the next step. 10. Press ▲ or ▼ to highlight Enable/Disable Digital Channel. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 24: Clear Service Level

    Service Level. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 25: Copy Service Level

    Position: ▲▼ Exit: SETUP Next: ◄► Enter the Channels menu Press ▲ or ▼ to highlight Parental Control. Press ► to select it. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 26: Tv Rating

    TV-Y7 will be blocked automatically. Similarly, if you block TV-G category, then TV- PG, TV-14 and TV-MA will also be blocked. TV Parental Guideline Rating System PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 27: The Sub-Rating Of Tv Rating

    For example, if you block the PG-13 category, then R, NC-17 and X will be automatically blocked also. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 28: Motion Picture Association Of Usa (Mpaa) Rating System

    Press ◄ or ► to select the desired number of hours (1-99) or Always. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 29: Parental Lock Duration

    ENABLED = All possible channels. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 30: Features

    Press ◄ or ► to select Disabled or Enabled. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 31: Inactive Power Off (H:mm)

    Press ◄ or ► to select Disabled or Enabled. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 32: Digital Captions

    Background Opacity default, solid, translucent, transparent, flashing default, none, raised, depressed, uniform, left drop shadow, right Edge Style drop shadow PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 33: Digital Mode Time Setup

    Press ◄ or ► to select Auto, On, or Off depending on whether or not your viewing area observes Daylight Savings Time. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 34: Diagnostics

    Press ◄ or ► to select Enabled or Disabled. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 35: Power On Arc Mode

    Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. NOTE: For PC-ANALOG, see your computer manual for display resolution adjustments. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 36: Power On Source

    Now the station is deleted. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 37: Cloning

    Press ▲ or ▼ to highlight Save. Press ► to download the TV’s setup to the USB thumb drive. A progress screen will be displayed. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 38: Restore Setting To Tv

    A progress screen will appear as the settings are restored. 6. The TV will return to the Cloning Main Menu after restoring is complete. 7. Remove the USB thumb drive. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 39: Information

    Press ◄ to return to the previous menu Firmware The firmware for the model PDI-P23LCDD TV is field upgradeable. A data file is written to a USB thumb drive, connected to the TV’s USB interface cable, and updated using the TV’s menus.
  • Page 40 After the uploading process is complete, turn the TV off and then on to return to normal viewing mode. NOTE: The TV will take a few minutes to upload the new version of firmware. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 41: Appendix

    Press ◄ and ► to adjust the setting. (See description of settings above) Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664 Document Number: PD196-158.DOC...
  • Page 42: Component Input Picture

    PDI and found by PDI to be defective. As a condition to obtaining warranty service, written notification must be received by PDI within at least ten (10) days after defect is first observed. Repair of said product requires it to be shipped to the PDI factory in Springboro, Ohio. All shipments shall be F.O.B.
