EDS3000PR Device Server Quick Start Guide
!
Thank you for choosing Lantronix. Please register the EDS3000PR in order to receive notifications for
firmware and documentation updates at www.lantronix.com/product-registration.
WHAT'S IN THE BOX
Quick Start
START
EDS3008PR, EDS3016PR, or EDS3032PR.
(EDS3032PR shown here.)
1. HARDWARE OVERVIEW
Activity LED
Speed LED
RJ45 Ethernet Port
Console Port
2. INSTALLATION
1. Install the EDS3000PR in a 19" rack.
2. Power off the serial device that will be connected to the EDS3000PR.
3. Attach a CAT 5 serial cable between the EDS3000PR and your serial
device.
4. Connect an Ethernet cable between the EDS3000PR Ethernet port and
your Ethernet network.
5. Connect the power cord and apply power.
6. Power up the serial device.
EDS3000PR

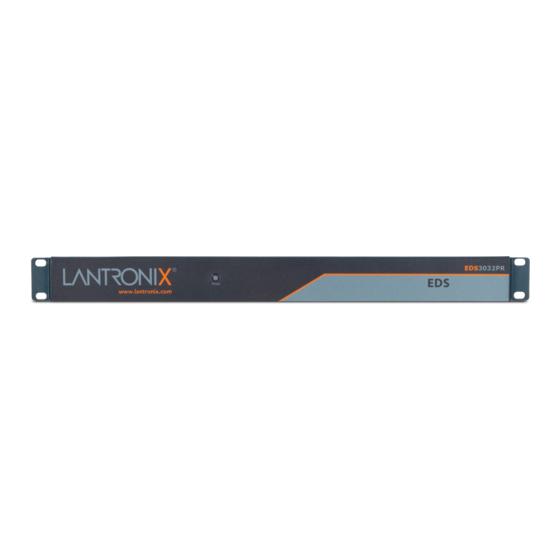

EDS3032PR Front View
EDS3032PR Back View
Receive LED (left)
Power LED
Status LED
RJ45 Serial Port
Reset Switch
Accessories
Power Cord
RJ45 to DB9F Adapter
Other adapters are available and are sold
separately.
Transmit LED (right)
Power Connector
Part Number
500-041-R
500-103-R
RS-232 Pin Assignment
1. RTS (Out)
2. DTR (Out)
3. TX (Out)
4. GND
5. GND
6. RX (In)
7. DSR (In)
8. CTS (In)
