Summary of Contents for Danfoss IK1

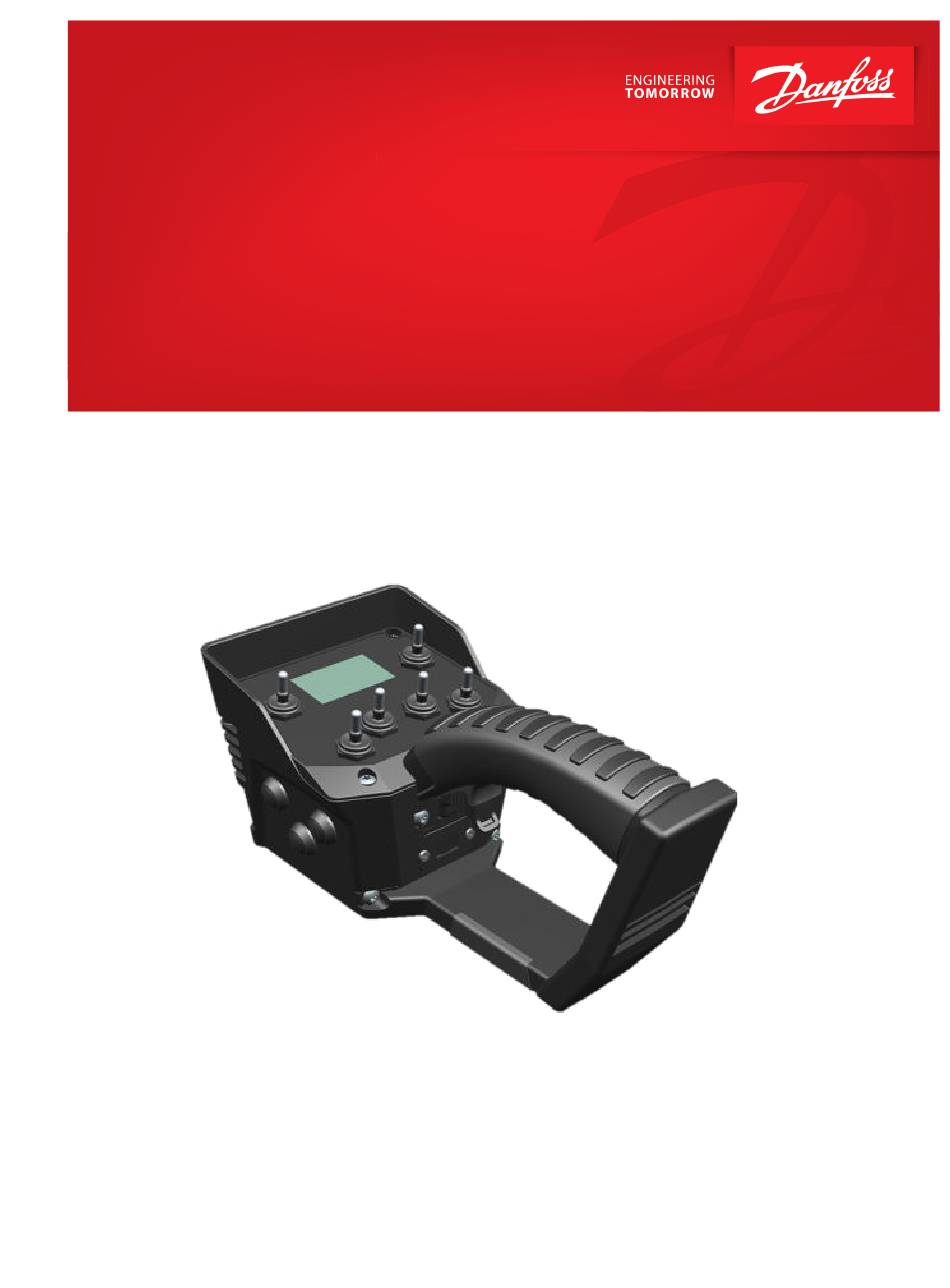

- Page 1 User Manual Remote Control IK1 Transmitter www.danfoss.com...
- Page 2 User Manual Remote Control IK1 Transmitter Revision history Table of revisions Date Changed March 2024 Initial Release 0101 © Danfoss | March 2024 BC483463529151en-000101...
-
Page 3: Table Of Contents
Safety instructions FCC rules......................................4 General safety....................................4 IK1 Safety Warnings..................................5 Technical description IK1 Dimensions and Identification............................. 6 IK1 Transmitter Start up................................. 7 IK1 Detailed description.................................8 IK1 Model code creation................................8 Pistol Grip Docking Station................................9 Default IK1 Layouts..................................9 Maintenance Maintenance tips....................................10... -
Page 4: Safety Instructions
The following safety instructions must be read carefully to install and use the product properly, and to keep it in perfect working condition, and to reduce the risk of miss use. • Danfoss recommends the use of ESD PPEs (electrostactic discharge personal protection equipment). •... -
Page 5: Ik1 Safety Warnings
Avoid knocking or dropping the product. • Do not use the product if a failure is detected. Changes or modifications not approved by Danfoss can void the user's authority to operate this product. Quick reference precautions © Danfoss | March 2024... -
Page 6: Technical Description
User Manual Remote Control IK1 Transmitter Technical description IK1 Dimensions and Identification The illustration below details dimensions and features of the IK1-G transmitter. Dimensions in mm. The illustration below details dimensions and features of the IK1 transmitter. 1.- STOP Button 2. -
Page 7: Ik1 Transmitter Start Up
User Manual Remote Control IK1 Transmitter Technical description 8. External and extractable EEPROM module 9. LCD Display 10. Alkaline Battery Pack (4xAA) or Rechargeable BT11K Battery 11. Tether Connector 12. START Button IK1 Transmitter Start up In order to turn the transmitter ON (OPERATION mode), please follow these steps: Start up the device 1. -
Page 8: Ik1 Detailed Description
4. Charging Type: N: No Charger, D: Docking Station, C: Battery Charge Example: IK1 - G1N ( with Pistol Grip, alkaline batteries and no charger) IK1 - G3C (with Pistol Grip, Li-Ion battery and BC70 charger) IK1 - G3D (with Pistol Grip, Li-Ion battery and Docking station) IK1 –... -
Page 9: Pistol Grip Docking Station
User Manual Remote Control IK1 Transmitter Technical description Pistol Grip Docking Station As an option there is the possibility of adding a Pistol Grip Docking Station. The way to lock and unlock the Pistol grip is as follows: Default IK1 Layouts ©... -
Page 10: Maintenance
User Manual Remote Control IK1 Transmitter Maintenance IK1-G maintenance tips This product is designed for use in an industrial environment that may shorten the product's lifespan. Use these tips to maximize the lifespan of the product. • Use the hook/Shoulder strap/Belt provided with the transmitter to prevent the transmitter from falling •... - Page 11 User Manual Remote Control IK1 Transmitter Maintenance Status LED (on all Transmitters) Display Description Action Message Color and frequency Pulse frequency Red | 1 Long + 2 short Pairing Error Check the Tether connection pulses and Receiver is ON. Red | continuous...
-
Page 12: Charger And Battery
Transmitter Power supply Ikore, IK1 have 2 different models depending on the power supply Transmitters with NO Suffix (Ikore, IK1-x1 ) use AA or AAA Alkaline Batteries Transmitters with Suffix B (IkoreB, IK1-x2) use Li Ion Rechargeable Batteries BT11K Alkaline Battery Recommendations Transmitters that do use AA Battery Pack or AAA Batteries, it is highly recommended to use ALKALINE Batteries. -
Page 13: Bc70K And Bt11K Specifications
User Manual Remote Control IK1 Transmitter Charger and battery Disposal note: This symbol on the product indicates that it may not be disposed of as household waste. It must be handed over to the applicable take-back scheme for the recycling of electrical equipment. -
Page 14: Bc70K Charger Leds Status
Avoid short circuits between the battery contacts; do not carry charged batteries in toolboxes or next to other metal objects (keys, coins, etc.) • Always keep contacts clean • Caution! Risk of Explosion if Battery is Replaced by an incorrect type. Non Danfoss Battery use may void warranty © 14 | Danfoss | March 2024... -
Page 15: Bc70K Battery Charger Dimensions
User Manual Remote Control IK1 Transmitter Charger and battery BC70K Battery Charger Dimensions Dimensions (mm) 2.57 97.15 103.31 © Danfoss | March 2024 BC483463529151en-000101 | 15... - Page 16 Phone: +86 21 2080 6201 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
