IK1 Transmitter Start up

©
Danfoss | March 2024
8. External and extractable EEPROM module
9. LCD Display
10. Alkaline Battery Pack (4xAA) or Rechargeable BT11K Battery
11. Tether Connector
12. START Button
In order to turn the transmitter ON (OPERATION mode), please follow these steps:
Start up the device
1. Place a charged LiIon battery or Alkaline Battery Pack (4xAA Batteries) on the transmitter.
Li Ion Batteries BT11K must be charged following the instructions of the Battery Charger.

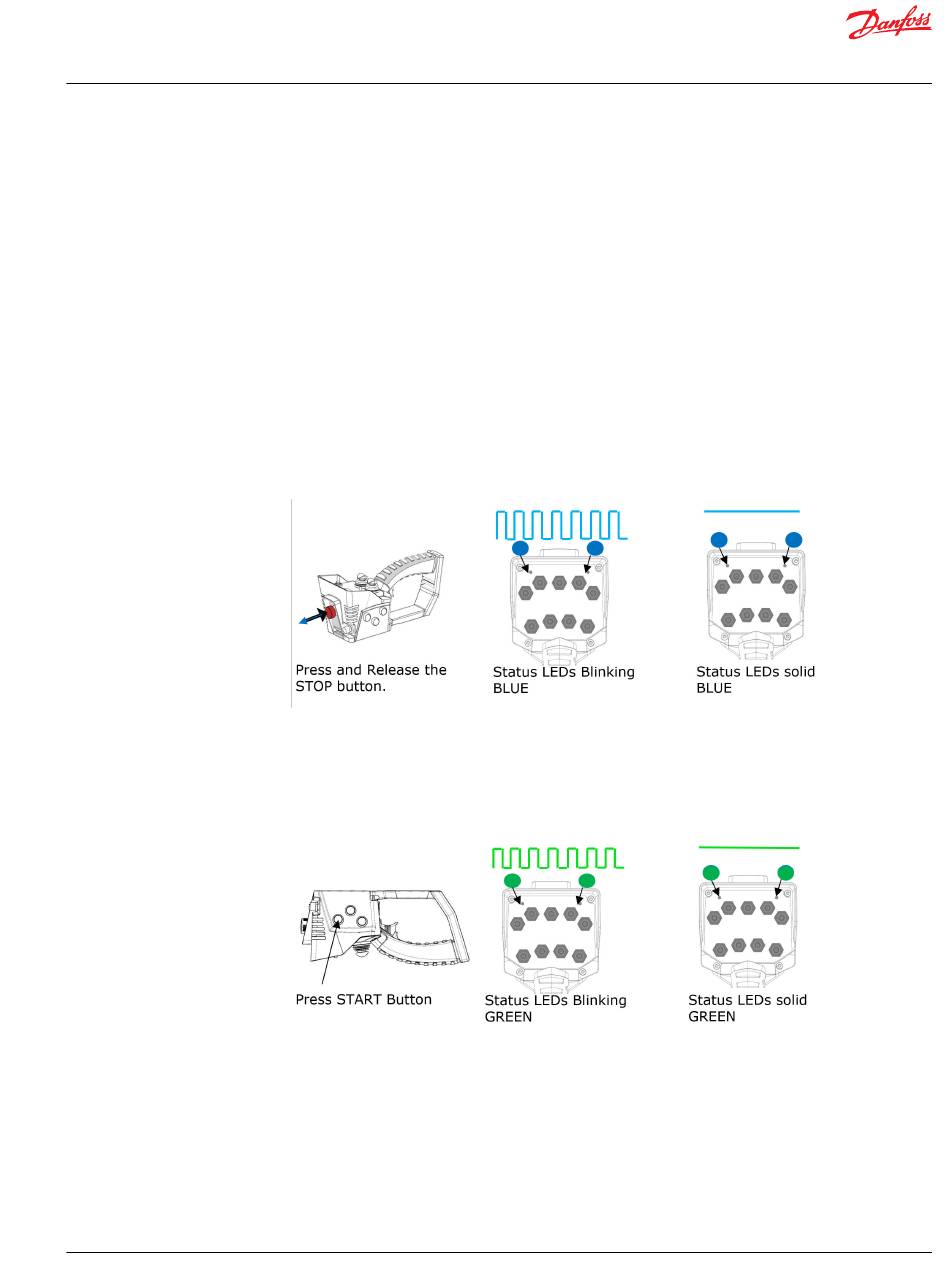

2. Push and pull out the STOP button.
LED status (blue)
LED will flash, blinking blue until it reaches the Stand-by mode (fixed blue). If the transmitter includes
a Display, it will display the identification of the machine, as well as the battery level, if it has been
pre-programmed.
3. Press the START button, and wait for the status LED to turn to fixed green.
LED status (green)
The status LED will start blinking green, meaning the transmitter is trying to connect with the
receiver. Once the Tx is linked, LED will turn to fixed green.
4. Press any of the transmitter's maneuver buttons and its corresponding relay will be activated.
5. Check to make sure all the maneuvers work in a coherent way with the expected movements by
checking the supplied production sheet, included with the system.
