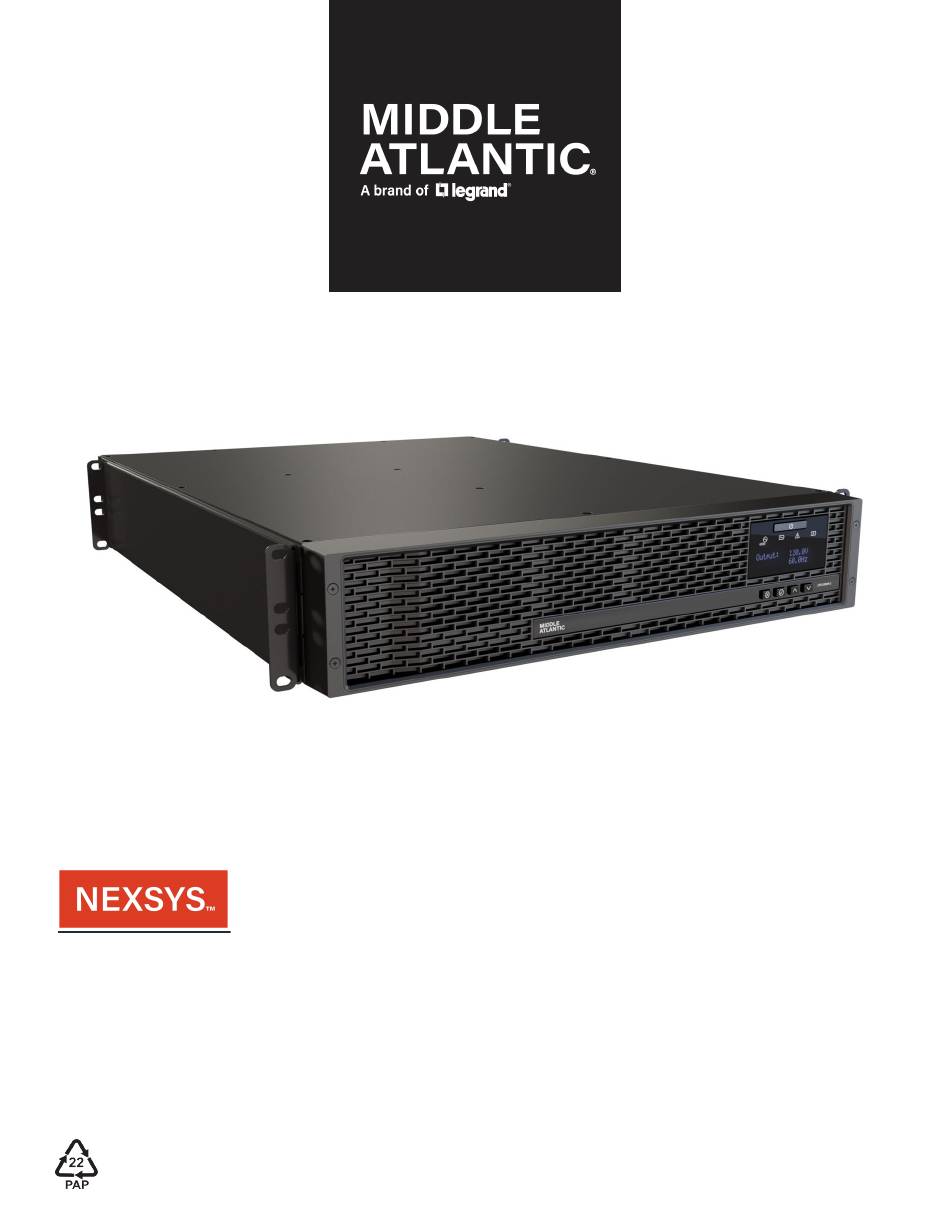

Online UPS
User Manual
100-00092 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIDDLE ATLANTIC NEXSYS Series and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND MIDDLE ATLANTIC NEXSYS Series

Summary of Contents for LEGRAND MIDDLE ATLANTIC NEXSYS Series

  • Page 1 Online UPS User Manual 100-00092 Rev A...
  • Page 2 All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations. Other patents pending. Legrand AV Inc. Brands: Chief | Da-Lite | Middle Atlantic | Projecta | Sanus | Vaddio ©2024 | Legrand AV, Inc.

  • Page 3: Table Of Contents

    Viewing Status Information on the LCD Panel Operating the LCD Main Menu Using Main Menu, Configuration Functions Using Main Menu, Configuration Functions, Audible Alarm Understanding Enabled or Muted Alarms Using Main Menu, Configuration Functions, Bank/ Outlet ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 4 Using Main Menu, Event Log Functions Understanding Warning Log Messages Understanding Fault Log Messages Viewing Main Menu, Information Replacing the Battery Replacing the Power Cord (if Necessary) Troubleshooting Specifications System Function Block Diagram Warranty ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 5: Important Safety Instructions - En

    Risk of electric shock when remotely controlling the unit while it is being WARNING serviced. Verify that the unit is in normal operating conditions before remotely controlling it. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT CAUTION TYPE. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 6: Instructions Importantes Sur La Sécurité - Fr

    Lors de l’installation Online UPS Expandable Runtime Battery (UPX-EXPANRUN-OL), reportez-vous Online UPS Expandable Runtime Battery User Manual (100-00095). Utiliser uniquement les accessoires spécifiés par le fabricant. Lisez toutes les instructions avant d’utiliser le produit. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 7 Ne vous débarrassez pas des piles dans un incendie. Les piles peuvent ATTENTION exploser. Ne pas ouvrir ou mutiler les piles. Les matières libérées sont nocives pour la ATTENTION peau et les yeux et peuvent être toxiques. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 8: Regulatory Compliance

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. viii ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 9: Conformité Réglementaire

    ICES-003 Class A Notice. This Class A digital apparatus complies with Canadian ICES-003. Industrie Canada (IC) ICES-003 Avis NMB-003, Classe A. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 10: Waste Electrical And Electronic Equipment (Weee) Directive

    à une utilisation efficace des ressources naturelles. Pour plus d'informations sur les lieux de recyclage de vos équipements usagés, veuillez contacter votre mairie ou votre service de collecte des ordures ménagères. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 11: Understanding General Symbols And Terms

    The information suggests alternative methods that may not be obvious and help users understand the benefits and capabilities of the product. A tip is not essential to the basic understanding of the material. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 12: Supplied Components And Hardware

    72" (1830 mm) USB-B to USB-A Cable Terminal Block Plug (Pre-installed on UPS for EPO and Dry Contacts) User Manual To order more hardware, contact support at NOTE av.middleatlantic.techsupport@legrand.com or (866) 977-3901 ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 13: Required Tools

    Electric Drill and #2 Phillips Bit (if Preferred) WARNING Use tools with caution and follow all safety protocols. Utiliser des outils avec prudence et suivre tous les protocoles de AVERTISSEMENT sécurité. xiii ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 14: Introduction

    UPX-RLNK-OL1500R-8 UPX-RLNK-OL2000R-8 UPX-RLNK-OL3000R-6 1000VA@127V 1500VA@127V 2000VA@127V 3000VA@127V 1000VA@120V 1500VA@120V 2000VA@120V 3000VA@120V 1000VA@110V 1350VA@110V 1800VA@110V 2700VA@110V 1000W@127V 1450W@127V 1930W@127V 2900W@127V Watts 1000W @120V 1350W@120V 1800W@120V 2700W@120V 1000W @110V 1200W@110V 1640W@110V 2500W@110V Power Factor ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 15: Understanding The One-Time Ups Transport Mode

    First, use the power cord (C) and plug your UPS into AC power and allow it to NOTE charge for 8 hours before providing direct backup power to connected devices. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 16: Determining Your Equipment Power Requirements

    4. Your UPS is equipped with a fan for thermal management. Place the UPS in a well-ventilated area and maintain a minimum clearance of 4” (100mm) in the front of the UPS, and 12” ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 17: Installing The Ups Inside Of Your Enclosure

    Only lift from the sides and back of the unit and not by the front or rail CAUTION sliders. Soulevez uniquement par les côtés et l'arrière de l'unité et non par le ATTENTION avant ou les rails. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 18 3. Use electric drill, #2 Phillips bit, and (8x) rackscrews (not provided) to attach the ears on the back rail sliders to the rear rackrail at your desired height inside of your enclosure. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 19 4. Team lift your UPS (A) and carefully slide the front of each rail slider over the back sliders until the ears on the front rail sliders are flush with the front rackrails on your enclosure. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 20 NOTE other large electrical equipment are typically too high for connecting to battery and surge-protected outlets. Doing so will overload and possibly damage your UPS. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 21 The circuit should not be servicing other equipment with large electrical demands. La prise doit être protégée par un fusible ou un disjoncteur. Le AVERTISSEMENT circuit ne doit pas entretenir d'autres équipements avec de grandes exigences électriques. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 22: Communicating With Your Ups

    For more information about communicating with your UPS using a wired Ethernet connection or via wireless connection over the internet using the RackLink™ Network Card option, refer to the RackLink Network Card User Manual (100-00074). ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 23: Disabling And Enabling The Ups Emergency Power Off (Epo) Function

    The EPO connector and socket are shown in black for clarity. For more information, see Understanding Rear Panel Connections, on page ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 24: Connecting The Expandable Runtime Battery Option

    2. Connect the end of the expandable runtime battery main connector cord into the corresponding port on the back of your UPS as shown. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 25 EXB on the back of your expandable battery as shown. 4. Connect the other side of the expandable battery communication cable into the port labeled EXB on the back of your UPS. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 26 Plug the UPS power cord into a two-pole, three-wire, grounded WARNING receptacle only. Avoid using extension cords. Branchez l'onduleur dans une prise bipolaire, trois fils et mise à la AVERTISSEMENT terre uniquement. Évitez d'utiliser des rallonges. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 27 Charging Your UPS the First Time, on page 8. Press the power button on the UPS to turn on the system. For more information, see Understanding the UPS Power Button, on page ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 28 Option Description External Battery 0 – 4 Set the number of external battery pack(s) attached to your UPS. Automatically detect the number of external battery pack(s) Auto attached to your UPS. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 29: Basic Operation And Feature Set

    Understanding Rear Panel Connections Labels on the rear panels of the following UPS models correspond with explanations further below. 1K and 1.5K Bank Models 1K and 1.5K Outlet Models 2K Bank Model ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 30 NEXSYS Series Online UPS User Manual Understanding Rear Panel Connections 2K Outlet Model 3K Bank Model 3K Outlet Model ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 31 2 bank-controlled sets of 3 outlets with one uncontrolled twist-to-lock outlet, or 6 individually controlled outlets with one uncontrolled twist- to-lock outlet. M. Output Circuit Breakers (3K Models Only): Two outlet-protective circuit breakers. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 32: Using Front Panel Buttons And The Led Indicators

    Your UPS is in Normal Mode. Flashing Your UPS is in Bypass Mode. Orange Your UPS is in Battery Mode. Your UPS has an internal fault. For more information, Understanding Fault Log Messages, on page ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 33: Understanding Your Ups Status Modes

    Normal Online Mode: In this mode connected loads are supplied by the inverter, which derives its power from utility AC power, the UPS charges the batteries, and provides power protection to connected loads. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 34: Understanding The Ups Power Button

    On – whether it’s in Line Mode (plugged in) or Battery Mode. Press and hold the power button until the display shows “Release Button Shutdown UPS.” The unit then powers Off. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 35: Viewing Status Information On The Lcd Panel

    Information Shown General Page Displays the UPS output voltage and battery general state. Operating Mode Displays the UPS operation Mode (Normal or Battery Mode). Load Total Displays the UPS total output load. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 36: Operating The Lcd Main Menu

    MAC address, IP address, and serial number. Using Main Menu, Configuration Functions Press the Select button to enter the configuration menu. Use Up and Down buttons to scroll and the Select button to choose a configuration function. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 37: Using Main Menu, Configuration Functions, Audible Alarm

    Understanding Enabled or Muted Alarms, Enable on page Silences alarms only for the current event. After the event, alarms will Mute sound again. For more information, see Understanding Enabled or Muted Alarms, on page ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 38: Understanding Enabled Or Muted Alarms

    Emitting 1 beep every 4 seconds. Low Battery Emitting 1 beep every 0.5 seconds. Overload Warning Emitting 1 beep every 0.5 seconds. Alarm Warning Emitting 1 beep every second. Fault Continuous beeping. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 39: Using Main Menu, Configuration Functions, Bank/Outlet

    Press the Select button to reset the UPS configuration functions to the following default parameters. Function Default Parameter Audible Alarm Set to On. Bank/Outlet All banks and outlets turned On. External Battery Pack Set to Auto detect. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 40: Using Main Menu, Configuration Functions, Service Mode

    The 0000 password is entered by default, and you must press the select button to verify each password character. For more information about status modes, see Understanding Your UPS Status Modes, on page Press the Select button to enter the service mode menu. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 41: Using Main Menu, Event Log Functions

    The LCD screen shows the three most current Warning and Fault log messages for a total of 6 messages. Use Up and Down buttons to scroll through the log messages which appear on the screen in the order shown. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 42: Understanding Warning Log Messages

    For more information, see Troubleshooting, on page Low Battery – Your battery capacity is low, and the UPS will shut down. Shutdown imminent. Battery Depleted The battery power of your UPS is completely depleted. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 43: Understanding Fault Log Messages

    An inverter fault occurred in your UPS. The UPS still operates in Line Inverter/Output mode, but if it goes into Battery mode it will shut down. Failure Contact support at av.middleatlantic.techsupport@legrand.com or (866) 977-3901. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 44: Viewing Main Menu, Information

    RackLink Network Card option installed and configured correctly. UPS Model Displays the UPS model name. UPS Serial No Displays the UPS serial number. Battery Part No Displays the UPS battery pack part number. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 45 Network Card option installed and configured correctly. Displays the MAC address of the RackLink Network Card. The MAC address only appears if you have the NOTE RackLink Network Card option installed and configured correctly. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 46: Replacing The Battery

    1. Use a #2 Phillips screwdriver and remove the (4x) screws from the front panel of the UPS (A) as shown. 2. Remove the panel from the UPS and set it aside along with the screws for reattachment. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 47 3. Squeeze and pull apart the battery wire connection and separate the wires as shown. 4. Use screwdriver to remove the set screw and battery cover as shown. 5. Slide the battery box out of the front opening. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 48 7. Slide your new battery into the front opening. 8. Use screwdriver and set screw to reattach the battery cover. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 49 RackLink Network Card User Manual (100- 00074). 12. On the LCD screen, select Yes as the coefficient to optimize your battery runtime calculation. For more information, see Using Main Menu, Configuration Functions, on page ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 50: Replacing The Power Cord (If Necessary)

    You may require a longer length cord for your specific UPS installation or just need a replacement. When replacing the cable with one from Legrand or any other supplier, the following specifications are required for 1K/1.5K UPS and 2K UPS products, respectively.

  • Page 51: Troubleshooting

    UPS and the expandable battery. For more connected between the information, see Connecting the Expandable UPS and the expandable Runtime Battery Option, on page battery. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 52 A 105% overload sounds an alarm for 1 minutes before shutdown. A 115% overload sounds an alarm for 10 seconds before shutdown. A 130% overload sounds no alarm and causes an immediate shutdown. ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 53 UPS Power Button, on page “High Internal message appears, the If the problem persists, contact support at Temperature.” or has UPS internal temperature av.middleatlantic.techsupport@legrand.com already shutdown. was too high. or (866) 977-3901. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 54: Specifications

    50/60Hz Autosensing Fixed 10’ (3.05M) Input Power SignalSAFE IEC SignalSAFE IEC to 5-15P 6’ (1.8M) Cable to an L5- Cord to 5-20P 6’ (1.8M) 30P Plug Electrical Supply TN system, TT System ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 55 NEMA 5-15R NEMA 5-20R 1 L5-30R Surge 540 Joules Protection Overload Circuit Breaker Protection Output Short 104A 144A 188A 170A Current (bypass <-> line mode) Transfer 4-6ms Time (line mode <-> battery mode) ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 56 Battery Hot-Swappable Front Access Replacement Corresponding UPX-RPLBATT-E UPX-RPLBATT-F UPX-RPLBATT-C UPX-RPLBATT-G Replacement Battery Models Battery Pack 24 VDC 48 VDC 48 VDC 72 VDC Voltage Full- and Half-Load 2 | 9 minutes Runtimes ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 57 32 | 116 minutes 33 | 115 minutes Half-Load Runtimes UPS + 4 ERB Full- and 42 | 163 minutes 54 | 170 minutes 44 | 163 minutes 48 | 162 minutes Half-Load Runtimes ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 58 SNMP V3, HTTP, HTTPS, TLS 1.2, SSH, Imbedded Web GUI with Dashboard, Features for the RADIUS, TCP/IP, Telnet, and FTP. RackLink Network Card For more information, see Communicating with Your UPS, on page Option (If Applicable) ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 59 Height x 23.6” (600mm) Depth Product 33.1 lbs. (15kg) 44.7 lbs. (20.3kg) 45.2 lbs. (20.5kg) 64.2 lbs. (29.1kg) Weight Shipping 78.26 lbs. 46.4 lbs. (21kg) 57.9 lbs. (26.3kg) 58.4 lbs. (26.5kg) Weight (35.5kg) ©2024 | Legrand AV, Inc. All rights reserved.
  • Page 60 Site Fault Detection Cold Start Warranty UPX-OL1000R-2 UPX-OL1500R-2 UPX-OL2000R-2 UPX-OL3000R-2 Model UPX-RLNK-OL1000R-2 UPX-RLNK-OL1500R-2 UPX-RLNK-OL2000R-2 UPX-RLNK-OL3000R-2 UPX-RLNK-OL1000R-8 UPX-RLNK-OL1500R-8 UPX-RLNK-OL2000R-8 UPX-RLNK-OL3000R-6 Three Years Limited (2 Years Battery) Standard For warranty information, refer to www.legrandav.com/policies/warranty_ information. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 61: System Function Block Diagram

    As shown in the following diagrams, the UPS is composed of a mains input, EMI/RFI filters, inverter, battery charger, DC-to-DC converter, battery, and UPS output. Diagram for UPS models with 2 banks of controlled outlets. Diagram for UPS models with 8 individually controlled outlets. ©2024 | Legrand AV, Inc. All rights reserved.

  • Page 62: Warranty

    Legrand | AV Headquarters 6436 City West Parkway Eden Prairie, MN, 55344, USA At Legrand AV Inc. we are always listening. Your comments are welcome. Legrand AV is an ISO 9001 and ISO 14001 Registered Company. ©2024 | Legrand AV,...
