By-Pass Megaline
3 108 62 - 3 108 63
The manual bypass enables the disconnection and reconnection of the
UPS to the protected load without any interruption of the power supply.
It is possible therefore to service the UPS with no downtime and
therefore without causing any inconvenience to the user.
•

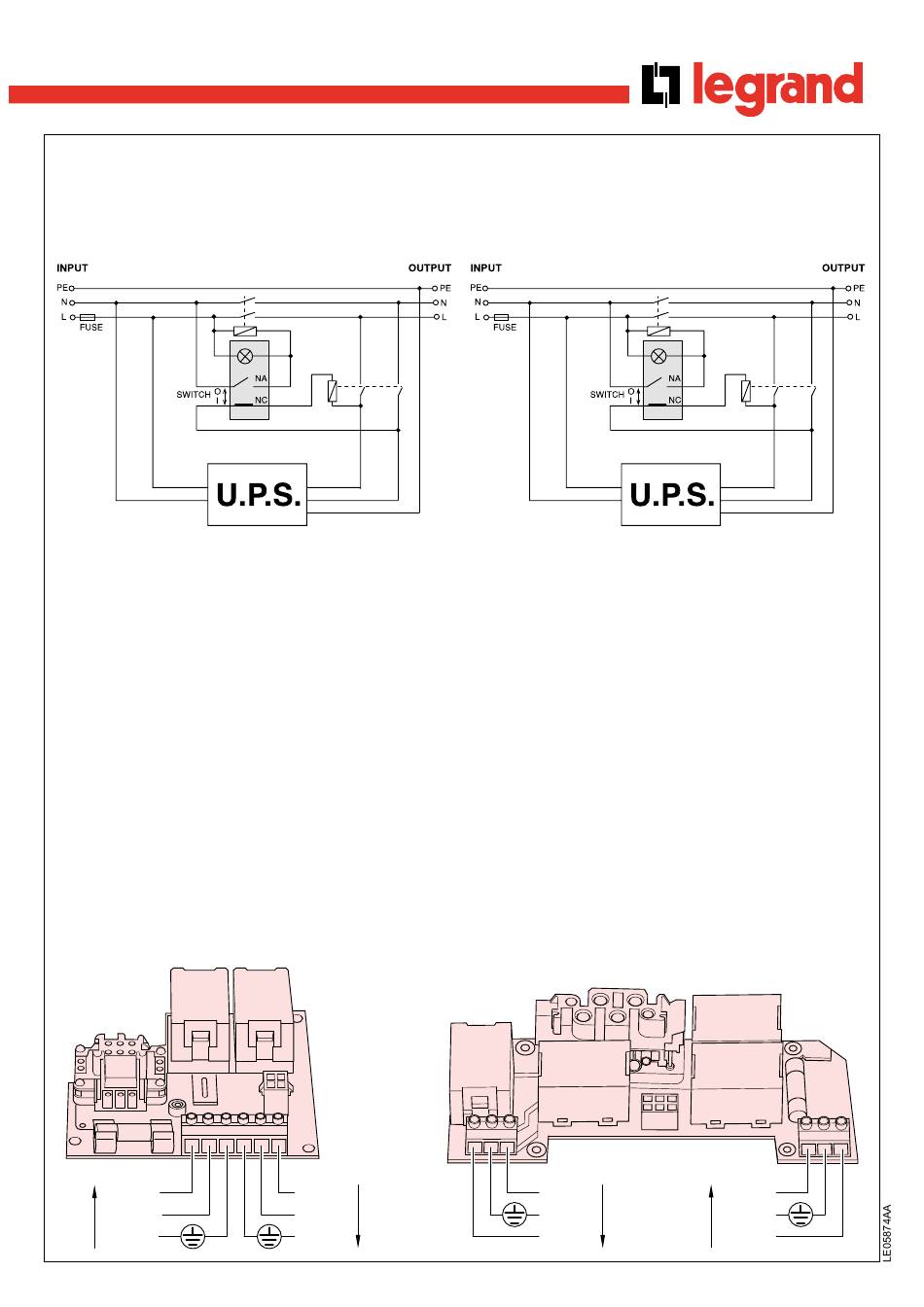

Operating diagram:
•
Box contents:
1 pc Manual by pass
2 pcs self threading screws 2.9 x 9.5
4 pcs screws M 3 x 10
1 pc protection panel
Instructions
•
Installation:
The manual bypass must be installed by qualified personnel.
1. Switch off the UPS
2. Disconnect the UPS input cable from the mains supply and the
UPS output cable from the load
3. Unscrew the 2 fixing screws and remove the I/O connections box
on the rear of the UPS
4. Unwire the two cables from the I/O plug: they are used to connect
the UPS to the bypass
5. Connect the input wire and the output wire to the connector taking
care to to respect the indications re. IN/OUT, phase and neutral,
and then tighten the cable guide ring nuts.
6. Fix the protection panel and fix with the 4 M3 screws provided
7. Install the bypass onto the UPS by inserting it in the UPS socket and
fixing it with the two M4x70 screws which were removed previously.
Install the two self threading screws provided with the bypass if the
UPS chassis is complete with the corresponding holes.
MEGALINE
Live
IN
Neutral
PE
Il by-pass di servizio permette di scollegare e riconnettere l'UPS
all'utilizzo senza interruzioni di alimentazione; è così possibile fare
manutenzione all'UPS senza disagi per l'utente.
•
•
n. 1 Centrale by-pass
n. 1 Foglio istruzioni
n. 2 viti autofilettanti 2,9 x 9,5
n. 4 viti M 3x 10
n. 1 pannello di protezione
•
L'installazione deve essere eseguita da personale tecnico qualificato.
1. Spegnere l'UPS a cui si vuole collegare il by-pass.
2. Scollegare il cavo di alimentazione dalla rete e il cavo di uscita
3. Togliere il connettore di ingresso sul retro dell'UPS, svitando le due
4. Scollegare i due cavi dalla presa interna al connettore perché
5. Collegare il cavo di ingresso e il cavo di uscita alla morsettiera
6. Mettere il pannello di protezione, fissandolo con le quattro viti M3 in
7. Connettere l'unità by-pass all'UPS, inserendola sulla presa e
MEGALINE/2
Live
OUT
Neutral
PE
Schema funzionale:
Contenuto dell'imballo:
Installazione:
dagli utilizzi.
viti che lo fissano.
saranno utilizzati per il collegamento all'unità by-pass.
rispettando le indicazioni di IN/OUT e quelle di fase e neutro;
stringere le ghiere dei passacavi dopo il collegamento.
dotazione alle rispettive torrette.
fissandola con le due viti M4x70 del connettore smontato in
precedenza. Se il telaio prevede i fori montare anche le due viti
autofilettanti sulla base dell'unità by-pass.
Neutral
OUT
PE
Live
Live
IN
PE
Neutral
08/2012-01 gF
®
